Implement-Z Rib

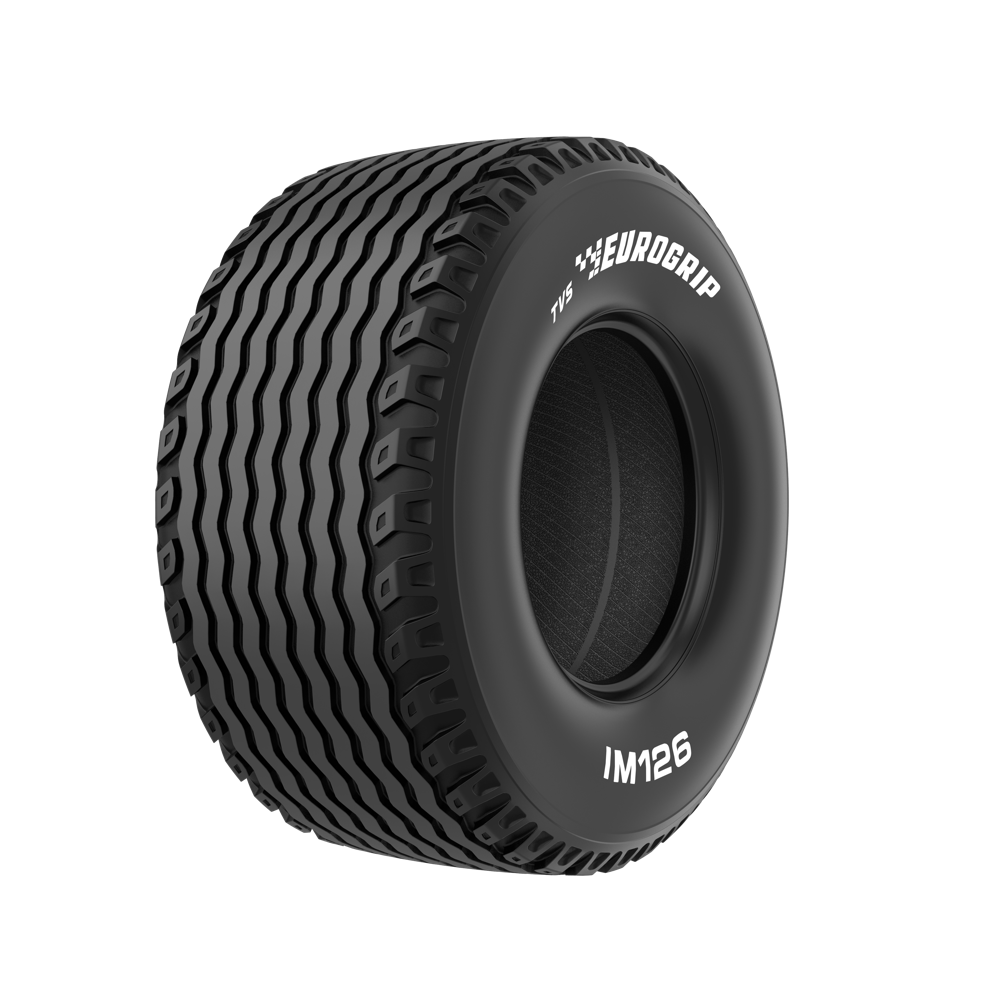

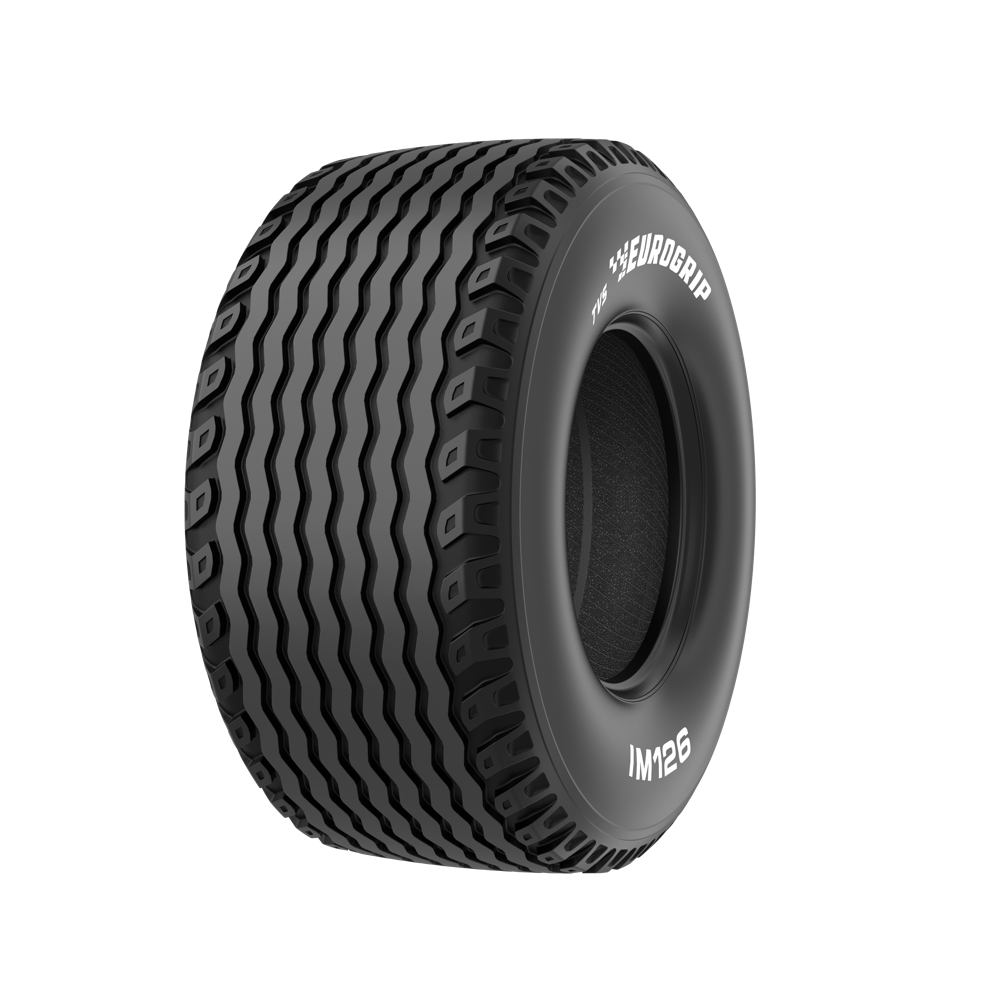

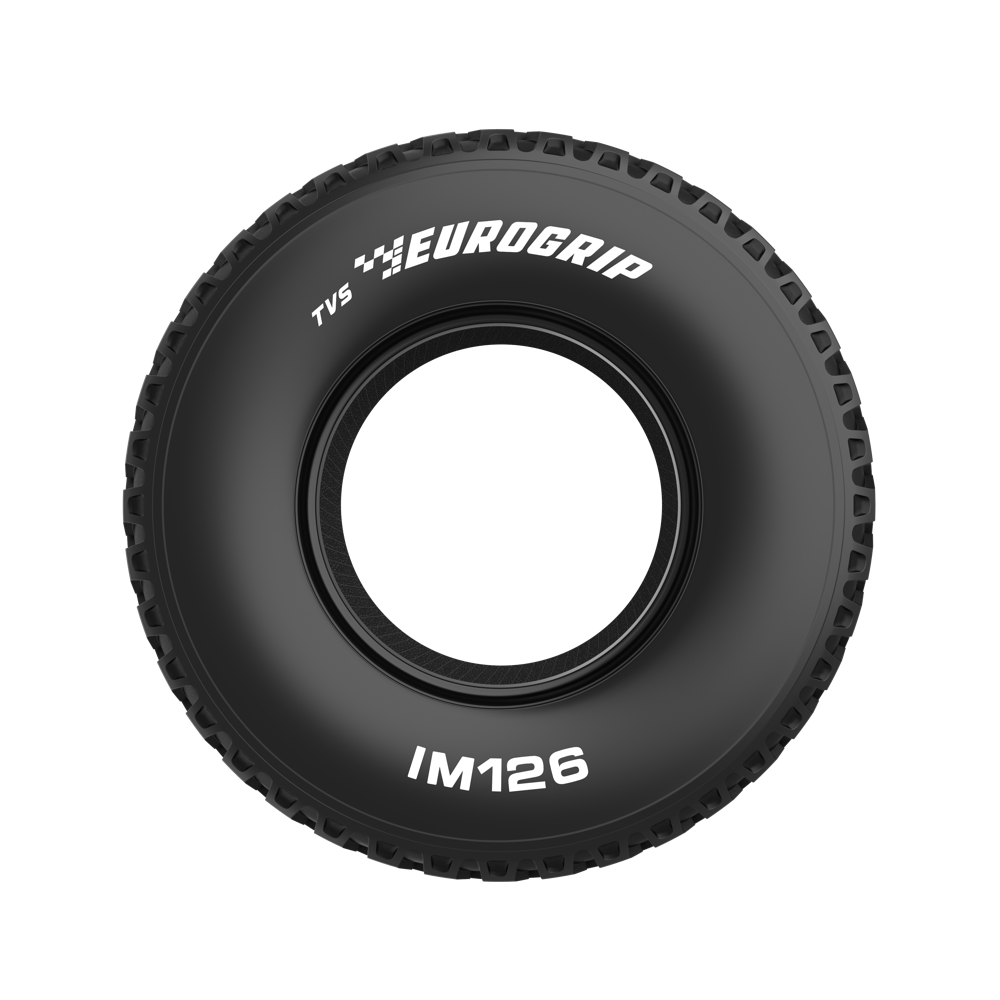

IM 126

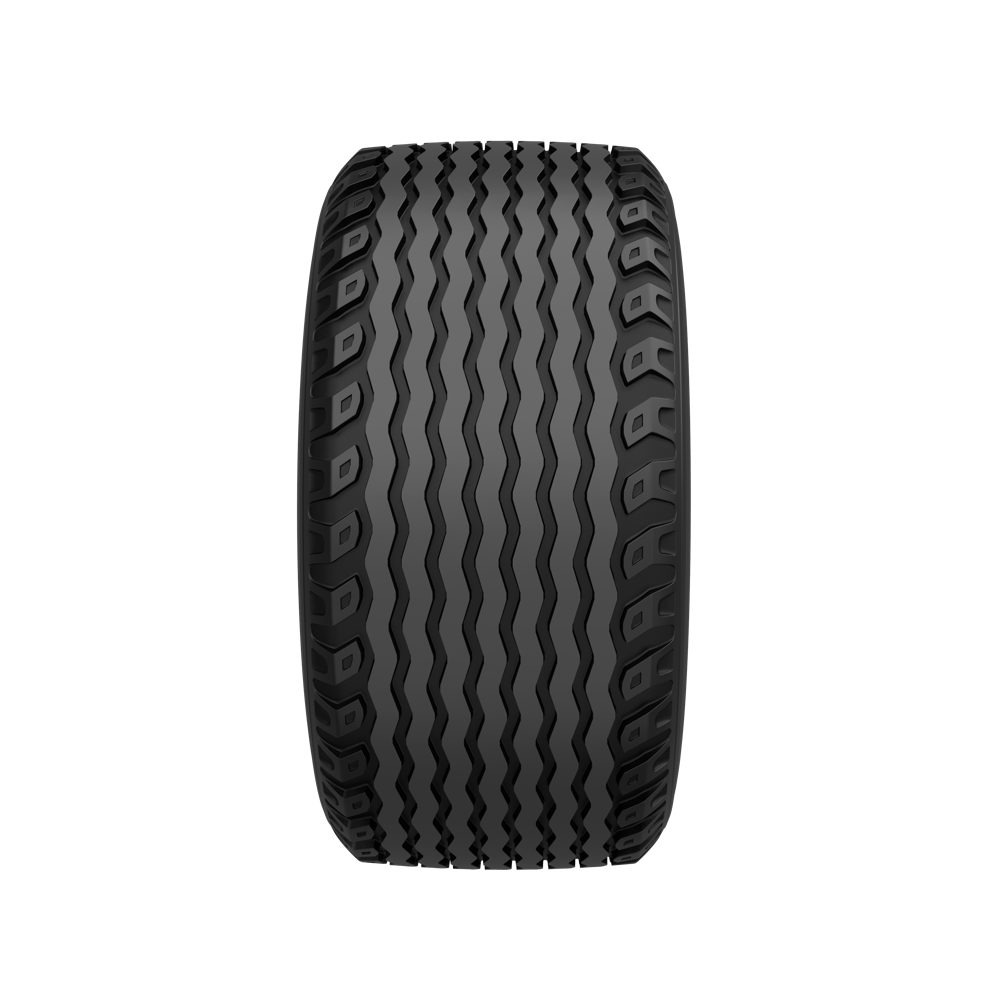

For customers who are looking for a value tyre for their towed agricultural implements such as small trailers, seeders, cultivators, balers etc, the IM 126 provides good performance at value price. Its ribbed treads provide good directional stability.
IMP
A8
Bias
Suitable for
Round Baler
Square Baler
Bale Trailer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 400/60-15.5 | AG13.00 | - | 402 | 858 | 387 | 2608 | TL | 10 | 136A8 | |
| 400/60-15.5 | AG13.00 | - | 402 | 858 | 387 | 2608 | TL | 14 | 145A8 | |
| 400/60-15.5 | AG13.00 | - | 402 | 858 | 387 | 2608 | TL | 16 | 147A8 | |
| 400/60-15.5 | AG13.00 | - | 402 | 858 | 387 | 2608 | TL | 18 | 149A8 | |
| 400/60-15.5 | AG13.00 | - | 402 | 858 | 387 | 2608 | TL | 22 | 153A8 | |
| 15.0/55-17 | 13 | - | 392 | 840 | 373 | 2461 | TL | 14 | 141A8 | |
| 500/50-17 | 16 | - | 515 | 950 | 416 | 2750 | TL | 14 | 149A8 | |
| 500/50-17 | 16 | - | 515 | 950 | 416 | 2750 | TL | 18 | 154A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
