Implement-Lug

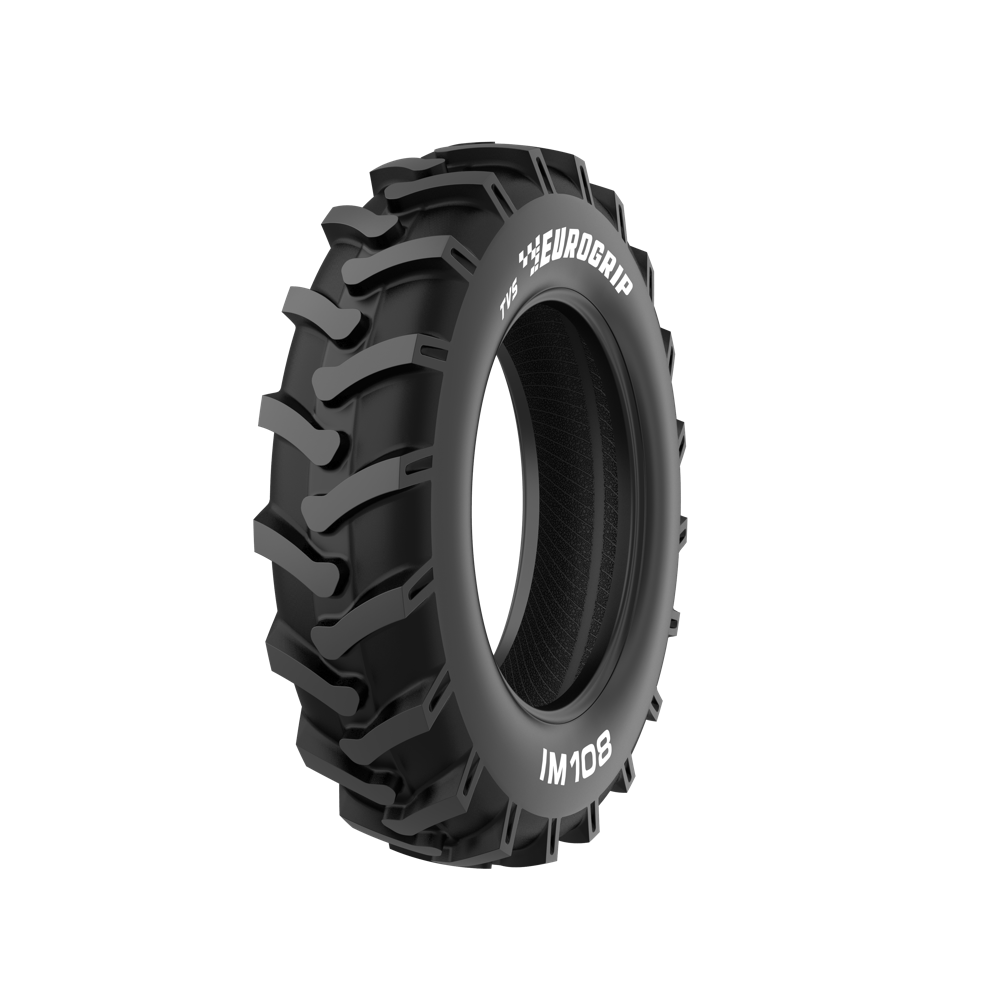

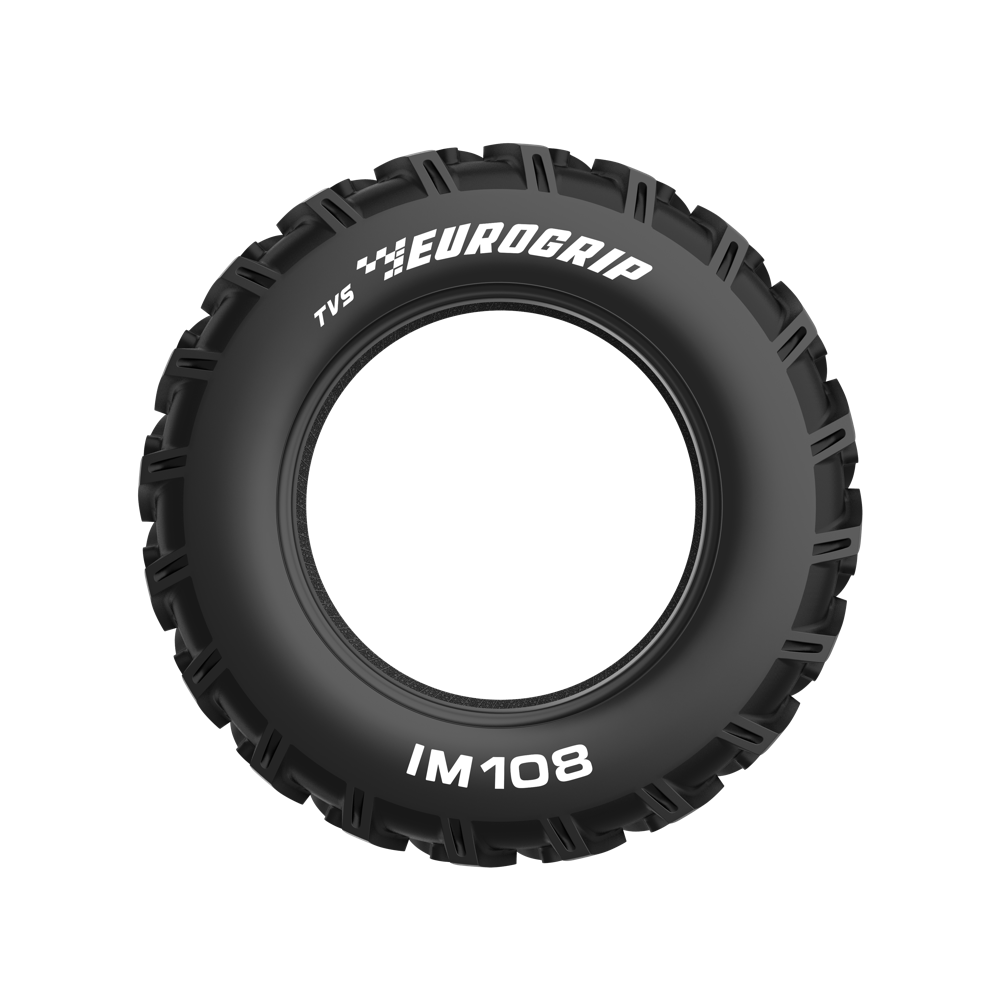

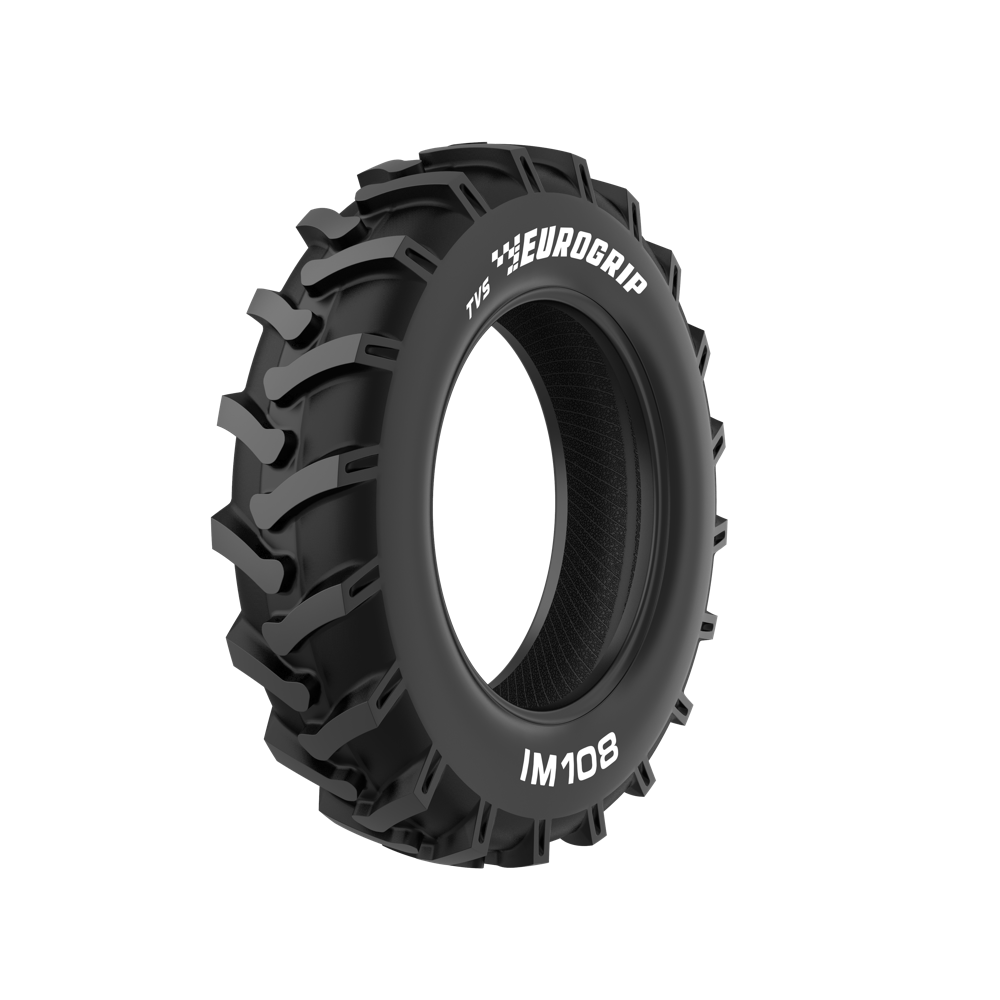

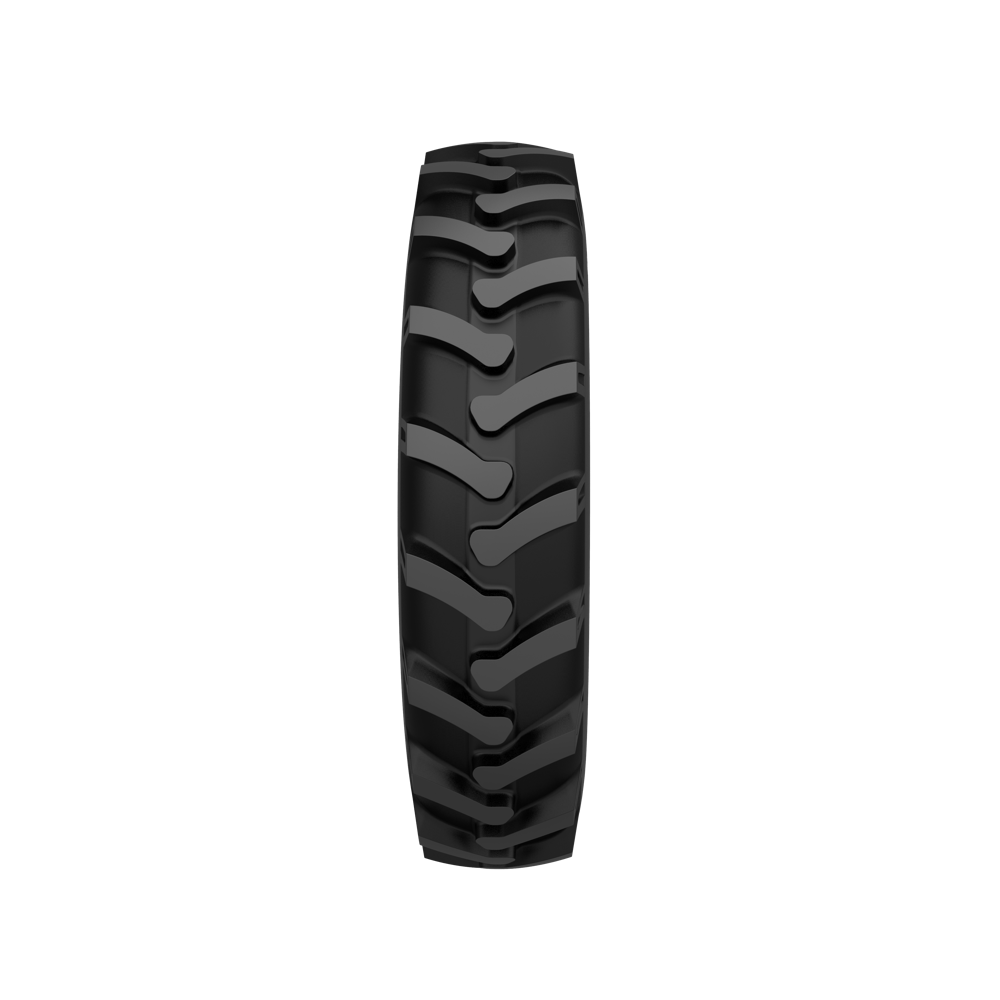

IM 108
The IM 108 is a mixed application implement tyre that can be used for both drive wheel and free rolling application. Its designed for optimal traction and good self-cleaning in soft / wet underfoot conditions.
IMP
A8
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Semi Mounted Plough
Trailer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 6.50-16 | 4.50E | - | 175 | 742 | 351 | 2230 | TT/TL | 6 | 99A8 | 87A8 | |
| 6.50-16 | 4.50E | - | 175 | 742 | 351 | 2230 | TT/TL | 8 | 105A8 | 93A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
