Implement-Rib
IM 09

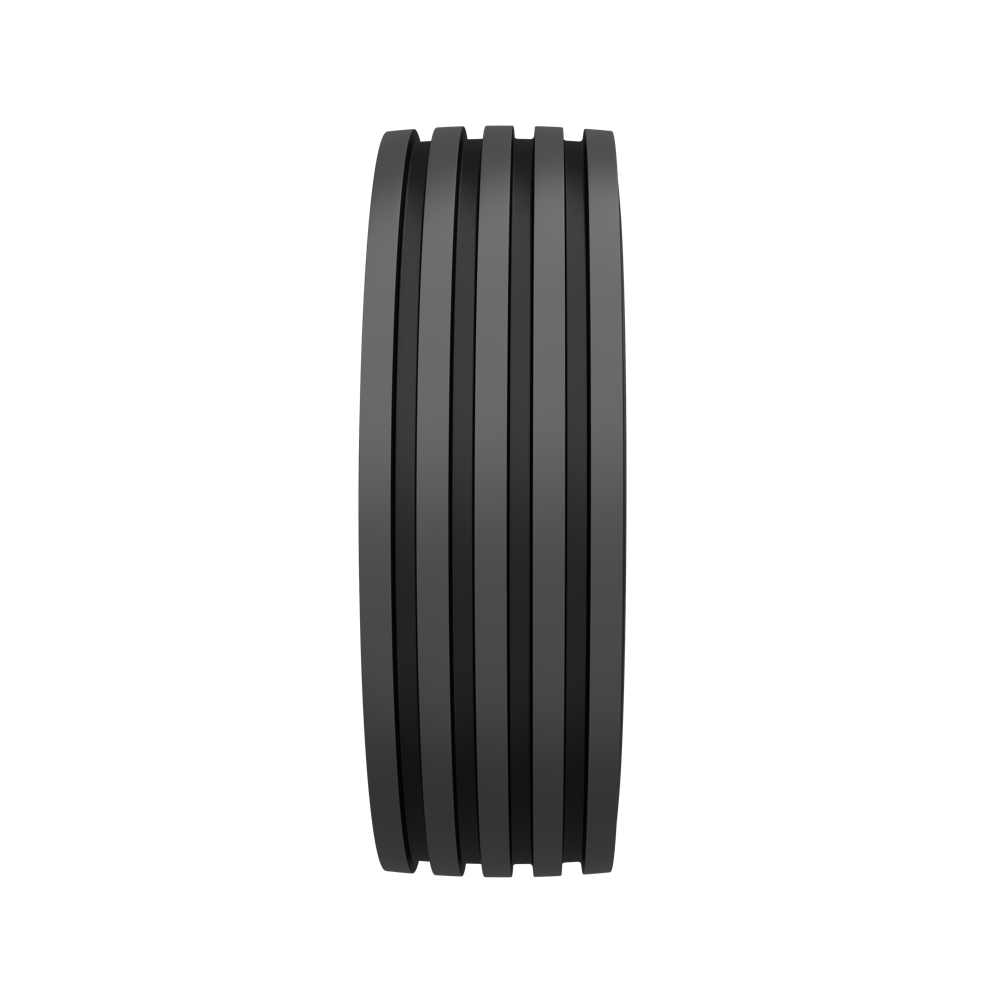

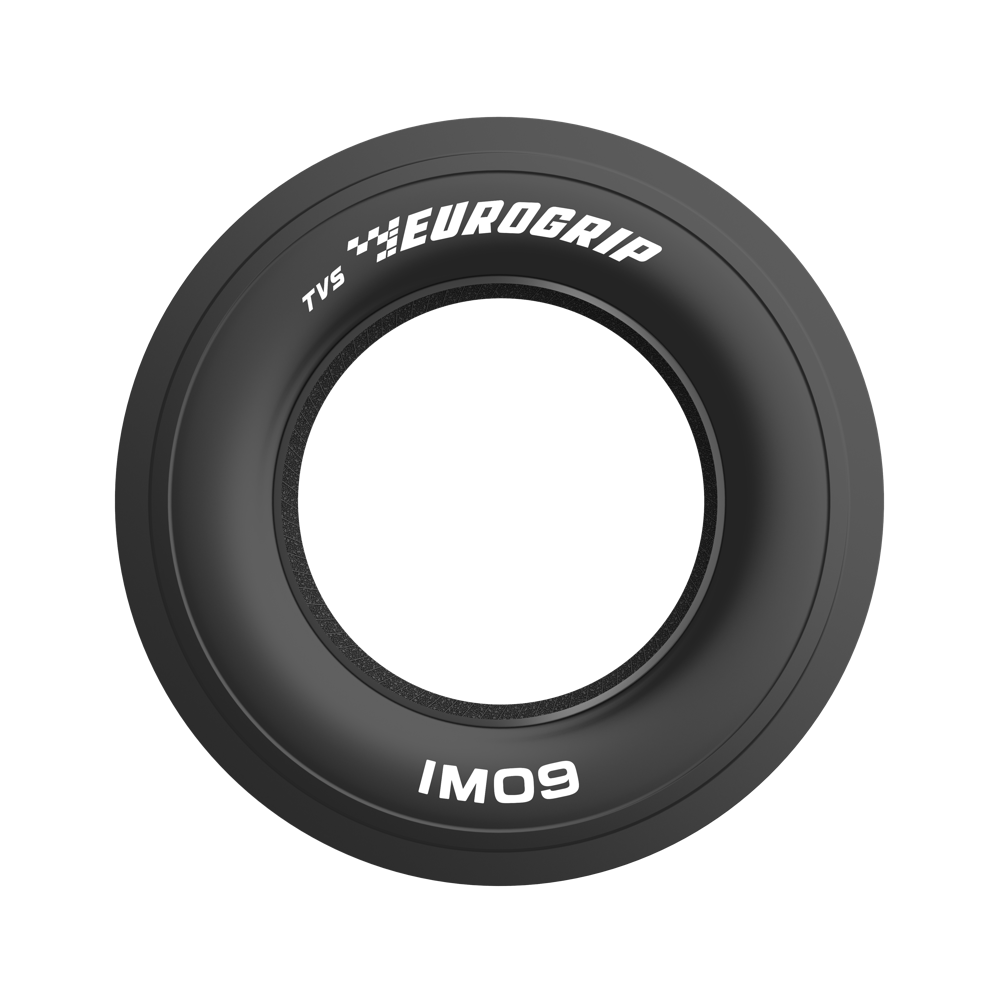

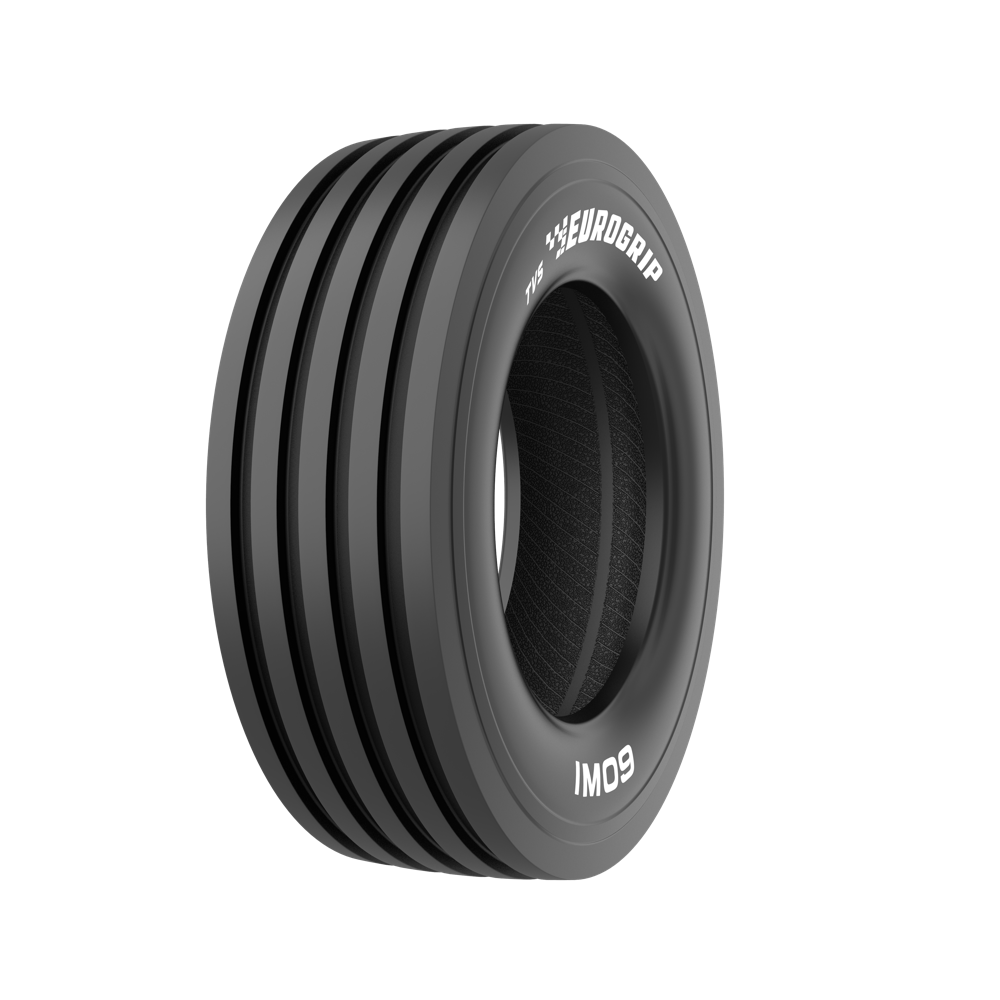

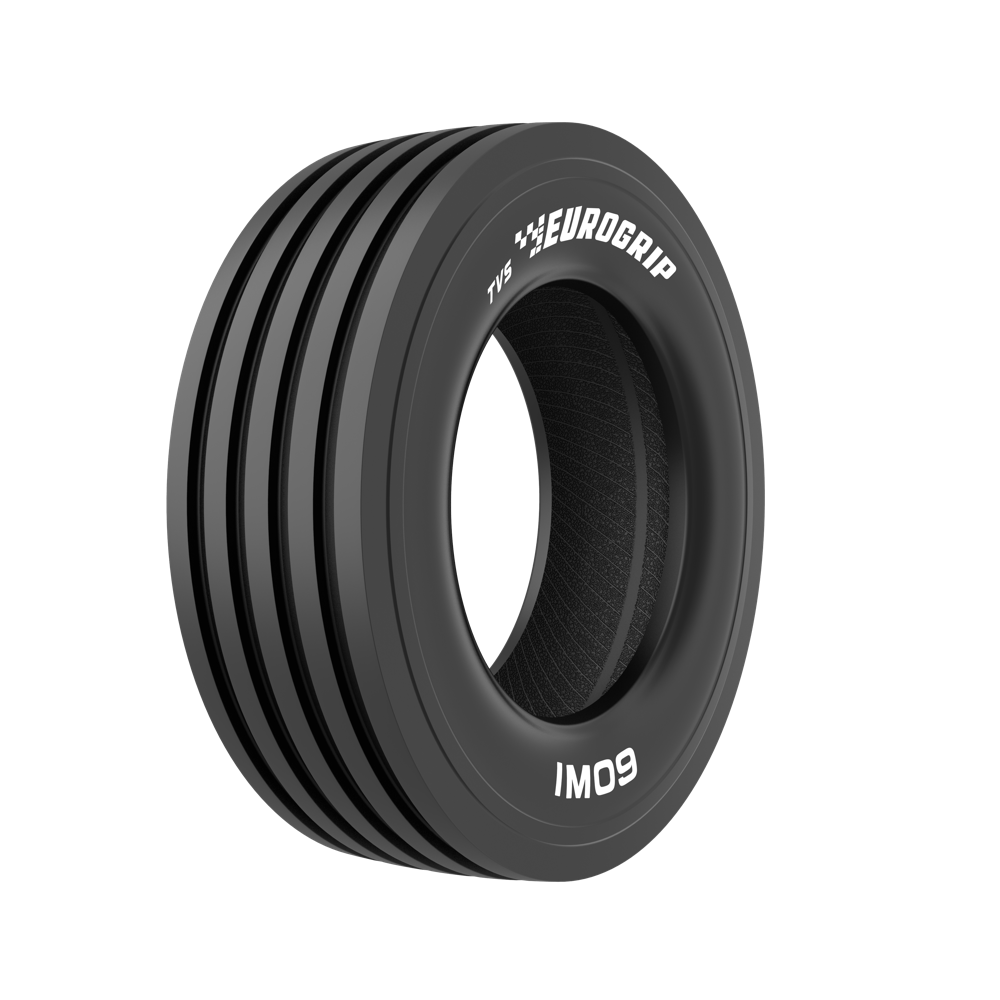

IM 09 is a rib-type agricultural implment tyre designed for towed implements. Its straight grooves provide directional stability to towed eqipments, that are used on wet and grassy surfaces.
I-1
B
Bias
Suitable for
Trailer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 24x8.00-14.5 | 6.75 | - | 210 | 645 | 285 | 1829 | TL | 10 | 106A8 | |
| 24x8.00-14.5 | 6.75 | - | 210 | 645 | 285 | 1829 | TL | 14 | 113A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
