IL 09

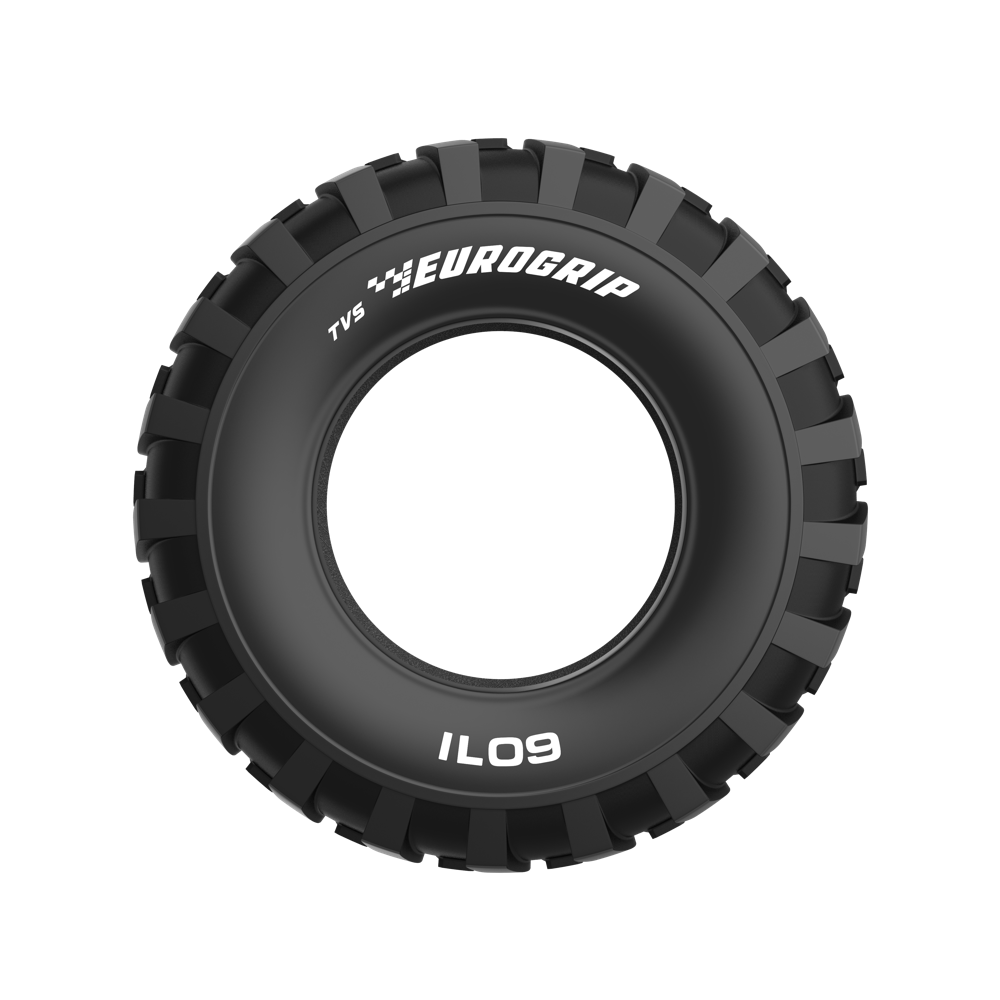

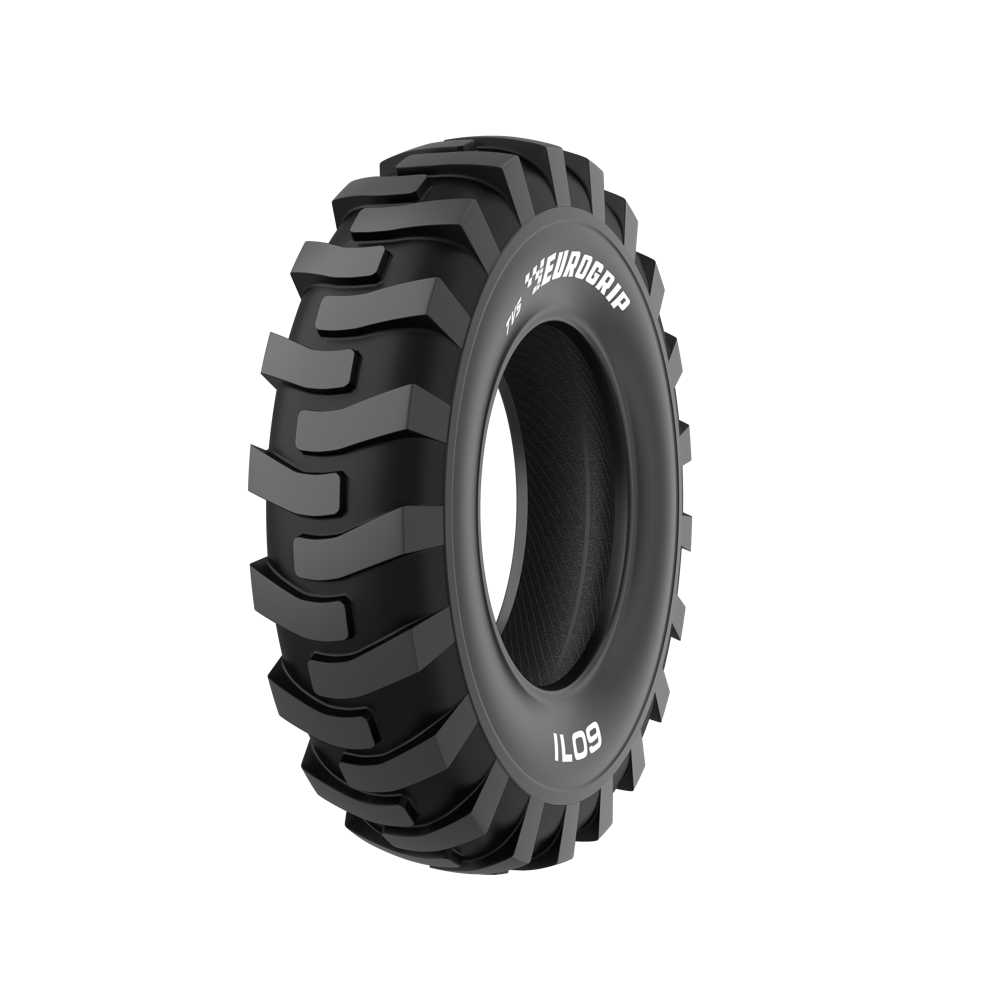

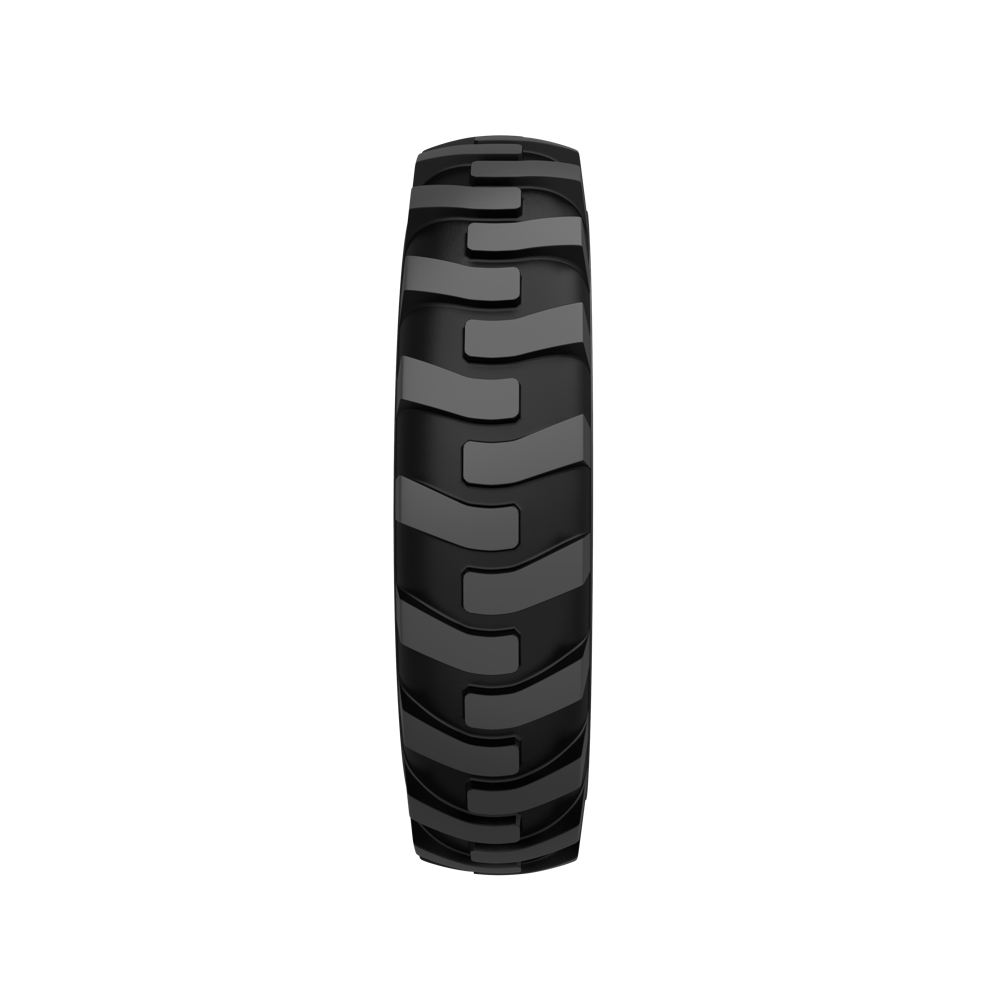

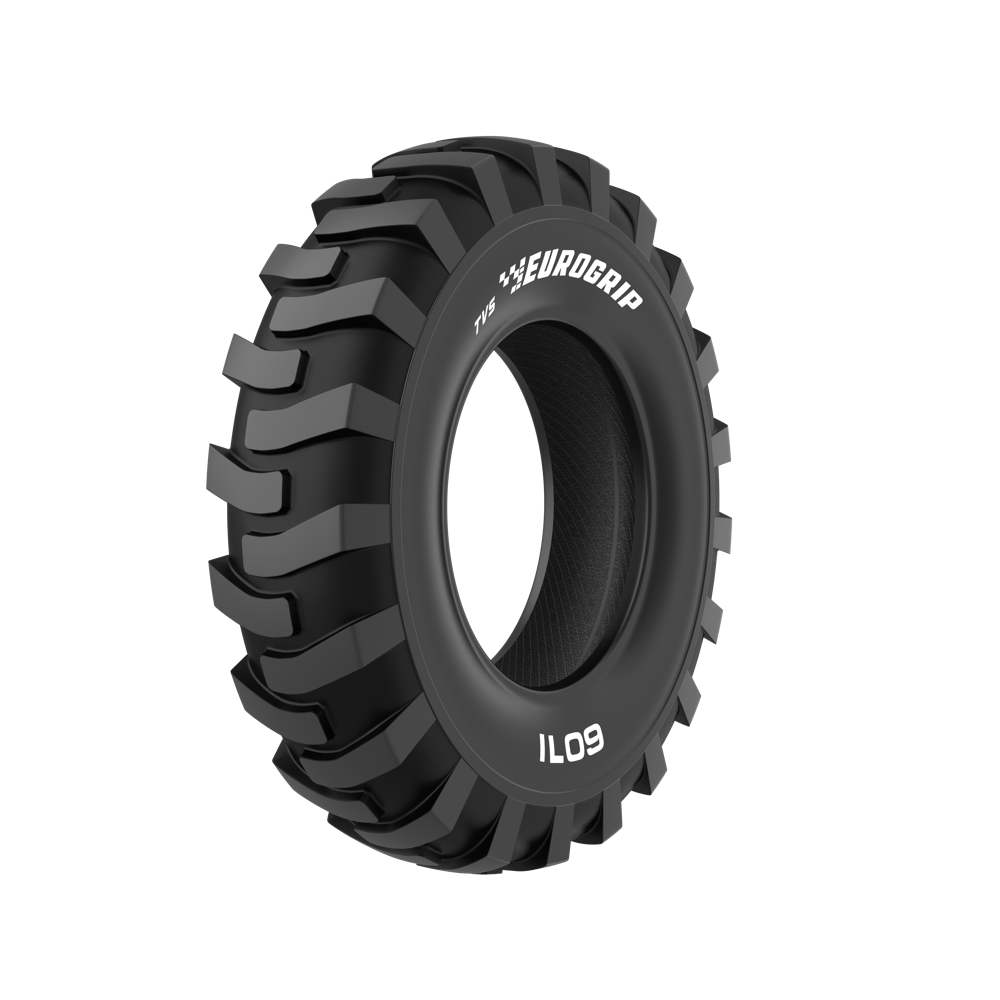

IL 09 L-2 tyre is designed for use on wheel loaders used in construction and agro-allied industries. The directional lug design provides good traction on soft / wet underfoot conditions and on uneven terrain
L-2/G-2
A2/B
Bias
Suitable for
Motor Grader
Wheel Loader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 15.5-25 | 12 | - | 413 | 1299 | 597 | 3842 | TL | 12 | 168A2 | 149B | |
| 17.5-25 | 14 | - | 483 | 1397 | 642 | 4132 | TL | 12 | 171A2 | 153B | |
| 17.5-25 | 14 | - | 483 | 1397 | 642 | 4132 | TL | 16 | 177A2 | 158B | |
| 20.5-25 | 17 | - | 562 | 1508 | 693 | 4460 | TL | 12 | 174A2 | 160B | |
| 20.5-25 | 17 | - | 562 | 1508 | 693 | 4460 | TL | 16 | 181A2 | 167B | |
| 23.5-25 | 19.5 | - | 582 | 1662 | 764 | 4916 | TL | 16 | 186A2 | 171B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
