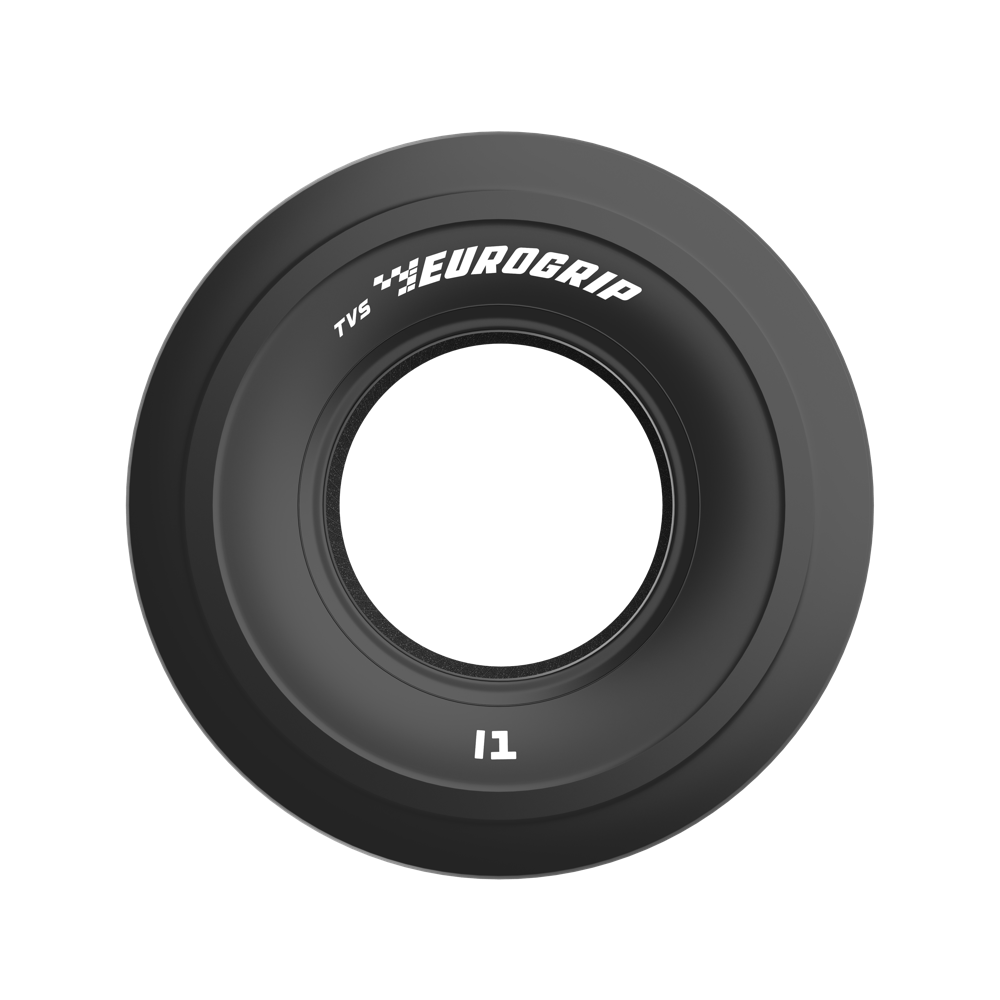

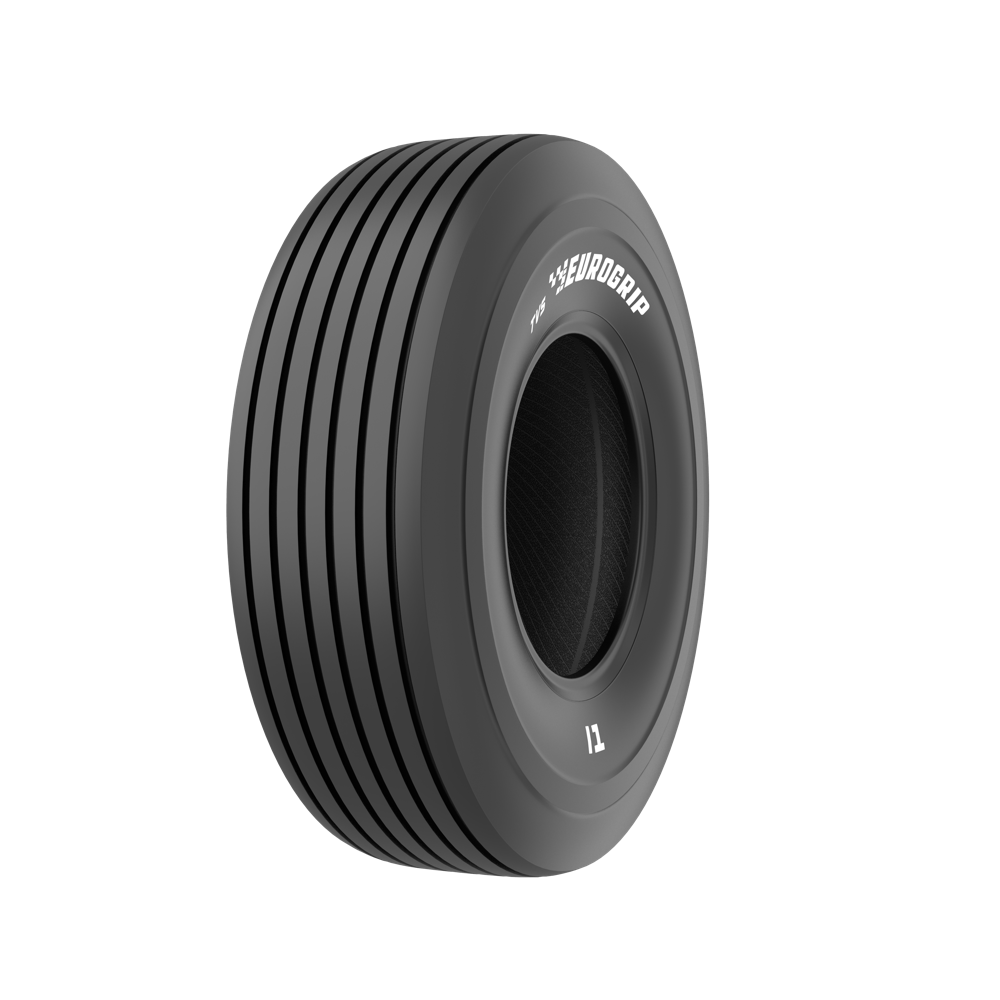

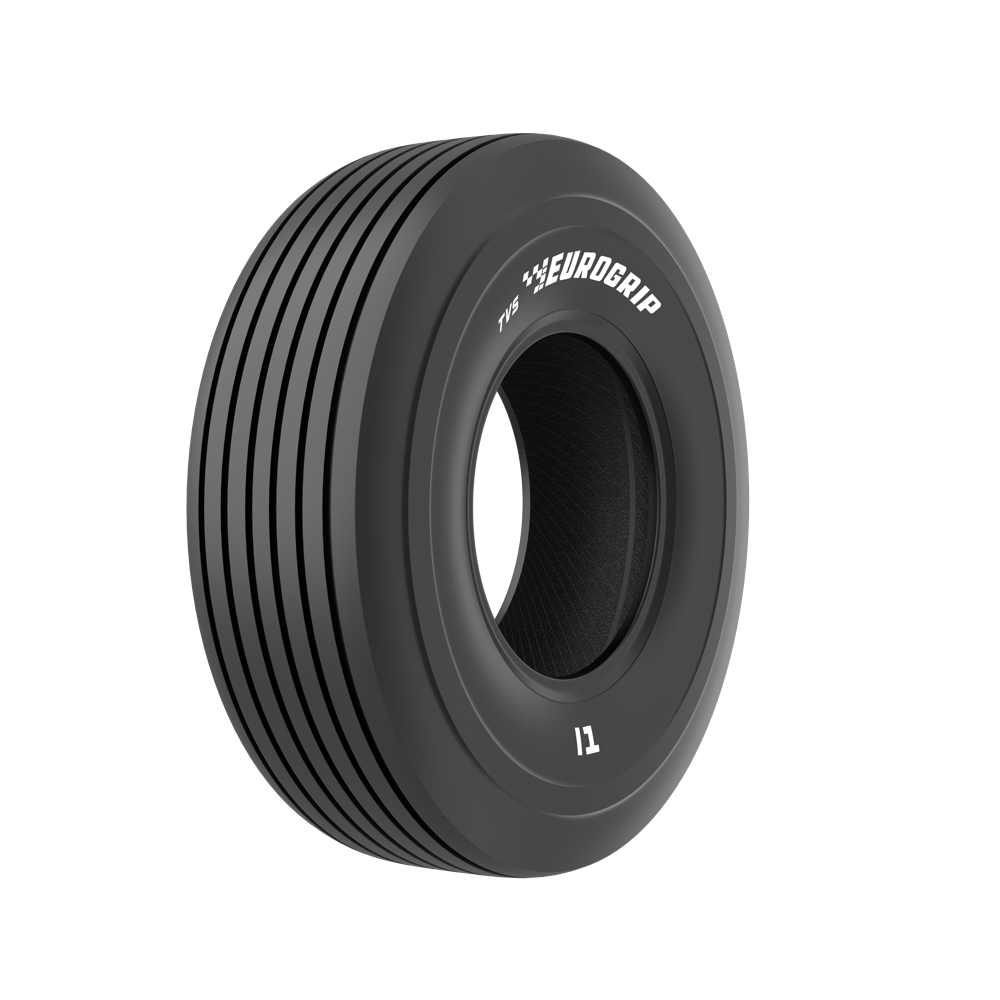

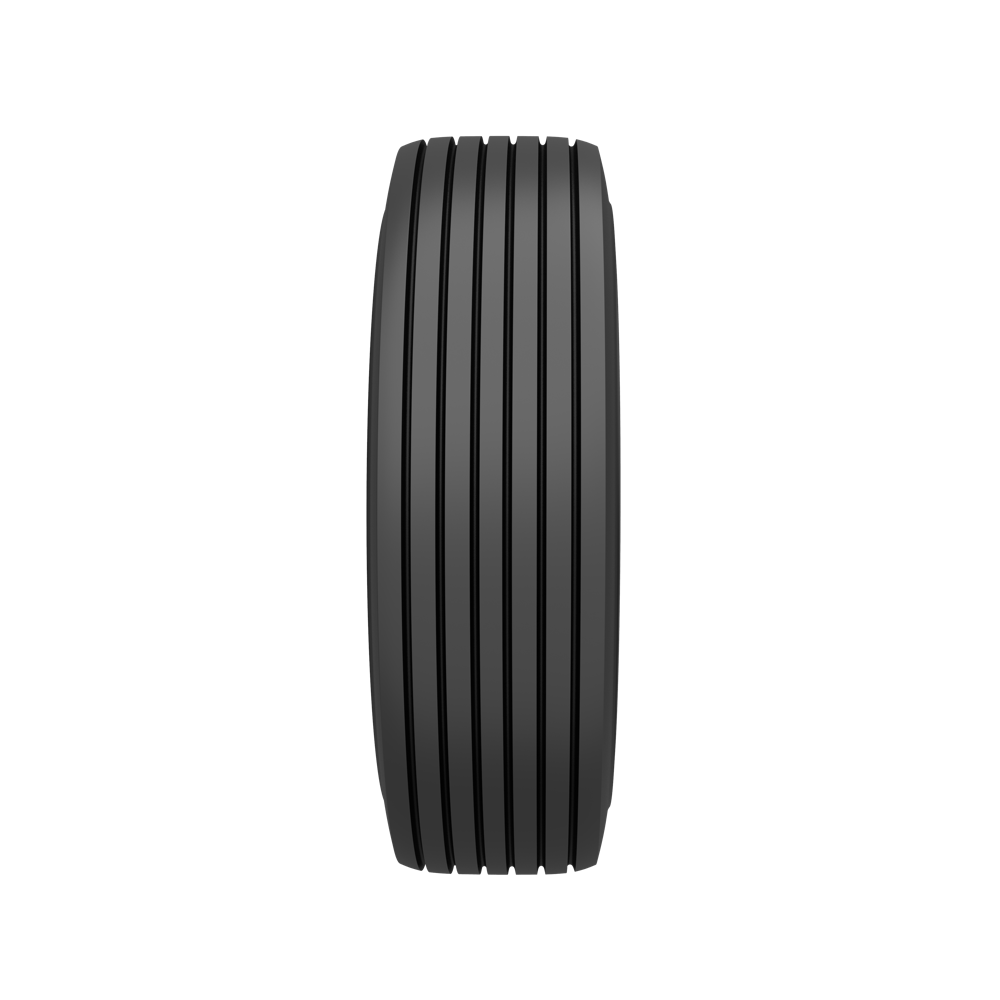

Implement-Rib
I 1
The I-1 multi rib agricultural implement tyre is suitable for towed agricultural implements that require superior directional stability. The tyre is engineered to provide the least possible rotational resistance, improving the efficiency of the prime mover.
I-1
B
Bias
Suitable for
Trailer
Planter
Seeder
Swather
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 9.5L-15SL | 7 | - | 238 | 735 | 336 | 2213 | TT/TL | 8 | 112B | |
| 9.5L-15SL | 7 | - | 238 | 735 | 336 | 2213 | TT/TL | 12 | 121B | |
| 11L-15SL | 8 | - | 272 | 785 | 355 | 2344 | TL | 8 | 113B | |
| 11L-15SL | 8 | - | 272 | 785 | 355 | 2344 | TT/TL | 10 | 118B | |
| 11L-15SL | 8 | - | 272 | 785 | 355 | 2344 | TL | 12 | 121B | |
| 12.5L-15SL | 10 | - | 322 | 840 | 373 | 2476 | TL | 10 | 123B | |
| 12.5L-15SL | 10 | - | 322 | 840 | 373 | 2476 | TL | 12 | 127B | |
| 7.50-16SL | 5.5 | - | 215 | 780 | 347 | 2282 | TT | 8 | 110B | |
| 9.00-16SL | 6 | - | 240 | 840 | 373 | 2470 | TT | 10 | 122B | |
| 12.5L-16SL | 10 | - | 312 | 820 | 373 | 2476 | TT/TL | 10 | 124B | |
| 12.5L-16SL | 10 | - | 312 | 820 | 373 | 2476 | TT/TL | 12 | 128B | |
| 12.5L-16SL | 10 | - | 312 | 820 | 373 | 2476 | TL | 14 | 130B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
