Implement-Rib
I 09

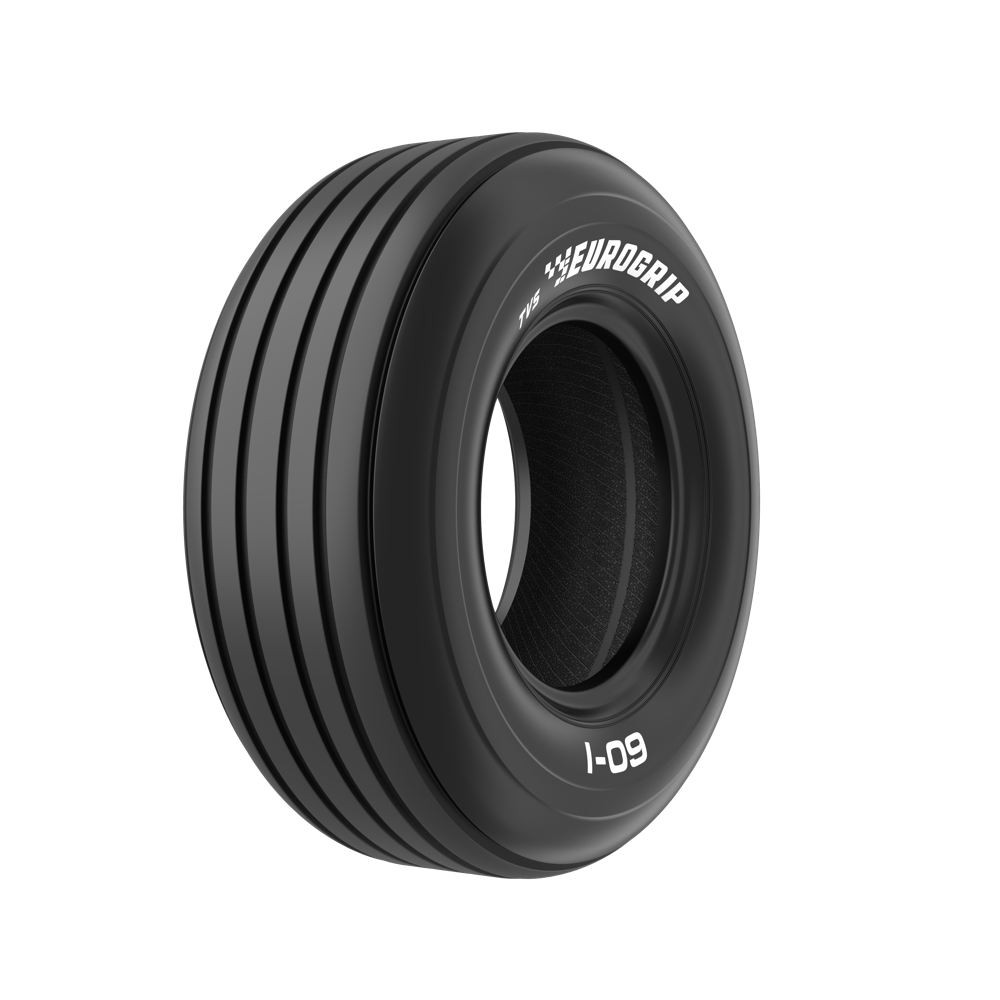

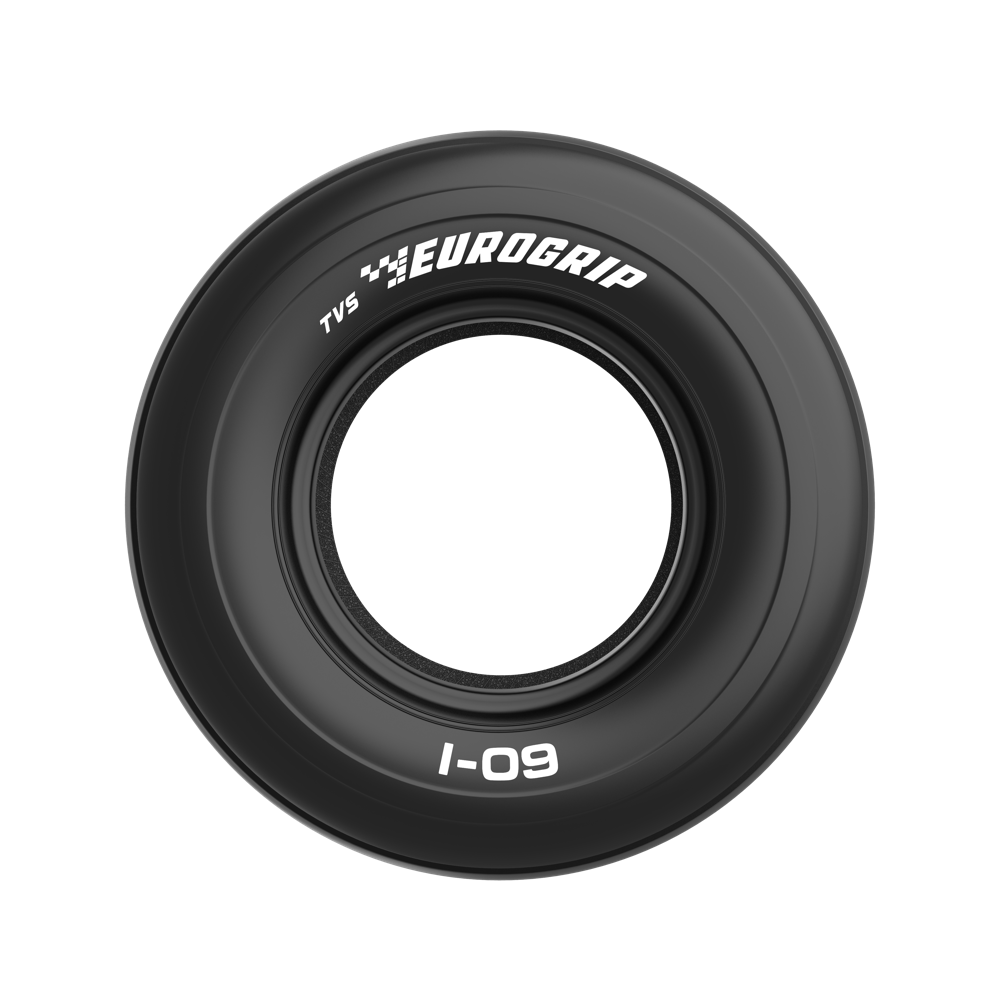

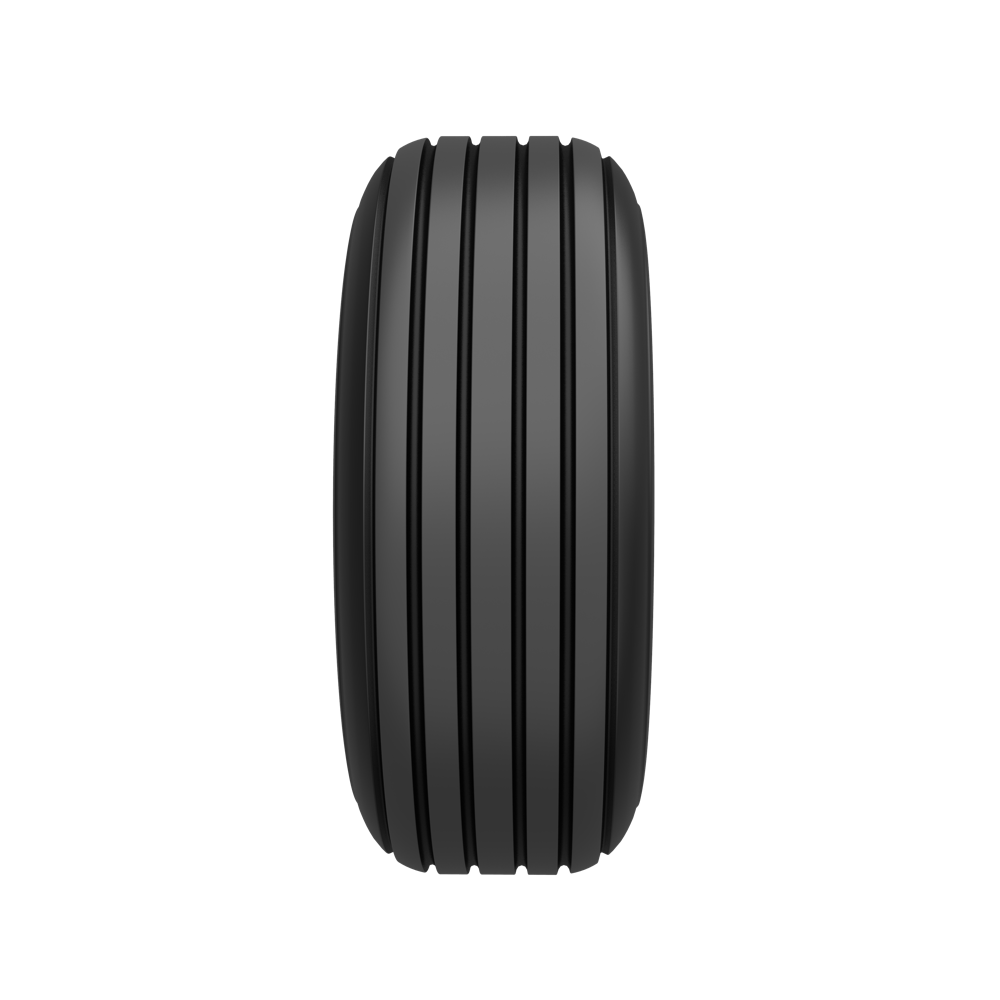

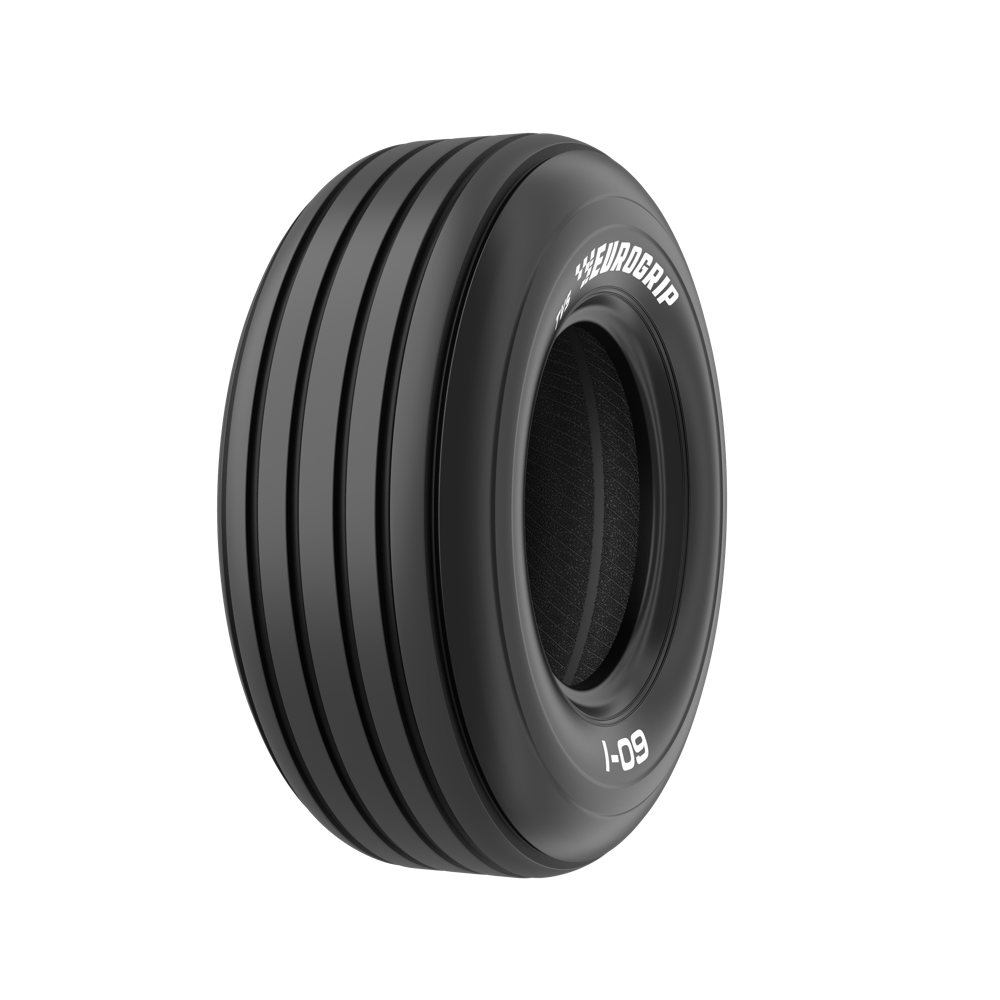

The I 09 I-1 tyre is a low section farm implement tyre with a multi rib tread design. It provides superior directional stability and is ideal for heavy implements towed by tractors. Ploughs, seeders, trailers, wagons and many other implements can be used with this tyre.
I-1
B
Bias
Suitable for
Trailer
Planter
Seeder
Swather
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 9.5L-14SL | 7 | - | 249 | 737 | 328 | 2171 | TT/TL | 8 | 111B | |
| 11L-14SL | 8 | - | 280 | 767 | 330 | 2280 | TT/TL | 6 | 105B | |
| 11L-14SL | 8 | - | 280 | 767 | 330 | 2280 | TT/TL | 8 | 112B | |
| 5.90-15SL | 4.5 | - | 163 | 668 | 296 | 1957 | TT | 4 | 85B | |
| 6.70-15 | 4.5 | - | 178 | 696 | 309 | 2045 | TT/TL | 6 | 97B | |
| 7.60-15SL | 5.5 | - | 200 | 735 | 325 | 2235 | TT/TL | 8 | 106B | |
| 9.5L-15SL | 7 | - | 250 | 762 | 338 | 2236 | TT/TL | 8 | 112B | |
| 11L-15SL | 8 | - | 282 | 785 | 345 | 2286 | TL | 8 | 113B | |
| 11L-15SL | 8 | - | 282 | 785 | 345 | 2286 | TL | 12 | 121B | |
| 12.5L-15SL | 10 | - | 328 | 820 | 362 | 2397 | TT/TL | 12 | 127B | |
| 11L-16SL | 8 | - | 272 | 787 | 348 | 2306 | TT | 8 | 115B | |
| 12.5L-16SL | 10 | - | 312 | 828 | 367 | 2429 | TL | 12 | 128B | |
| 14L-16.1SL | 11 | - | 355 | 932 | 412 | 2728 | TL | 8 | 127B | |
| 14L-16.1SL | 11 | - | 355 | 932 | 412 | 2728 | TL | 12 | 134B | |
| 14L-16.1SL | 11 | - | 355 | 932 | 412 | 2728 | TL | 14 | 138B | |
| 16.5L-16.1SL | 14 | - | 425 | 1030 | 456 | 3018 | TL | 10 | 138B | |
| 16.5L-16.1SL | 14 | - | 425 | 1030 | 456 | 3018 | TL | 12 | 141B | |
| 16.5L-16.1SL | 14 | - | 425 | 1030 | 456 | 3018 | TL | 14 | 145B | |
| 21.5L-16.1SL | W18CH | - | 538 | 1151 | 518 | 3370 | TL | 14 | 152B | |
| 7.50-24 | 7 | - | 225 | 1000 | 443 | 2930 | TL | 8 | 115B | |
| 9.00-24 | 8 | - | 285 | 1090 | 482 | 3194 | TL | 8 | 124B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
