Implement-Lug
HF 36

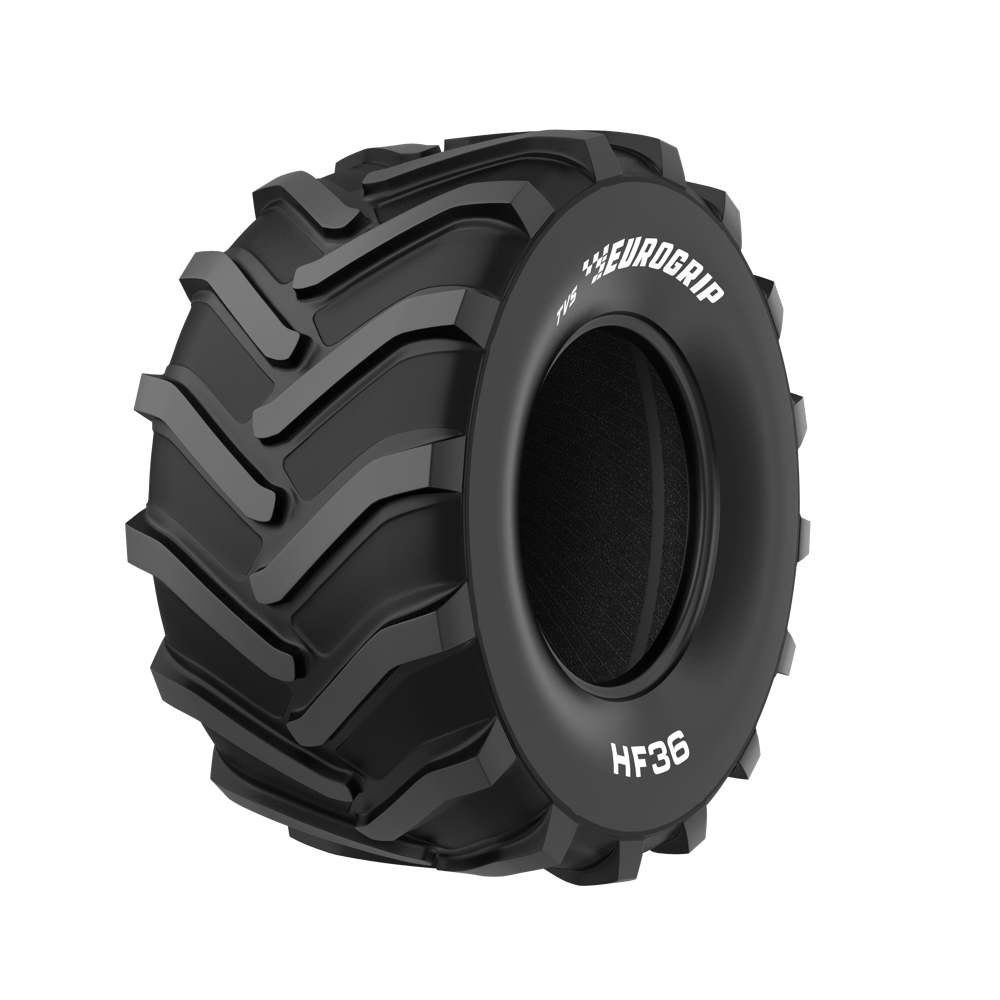

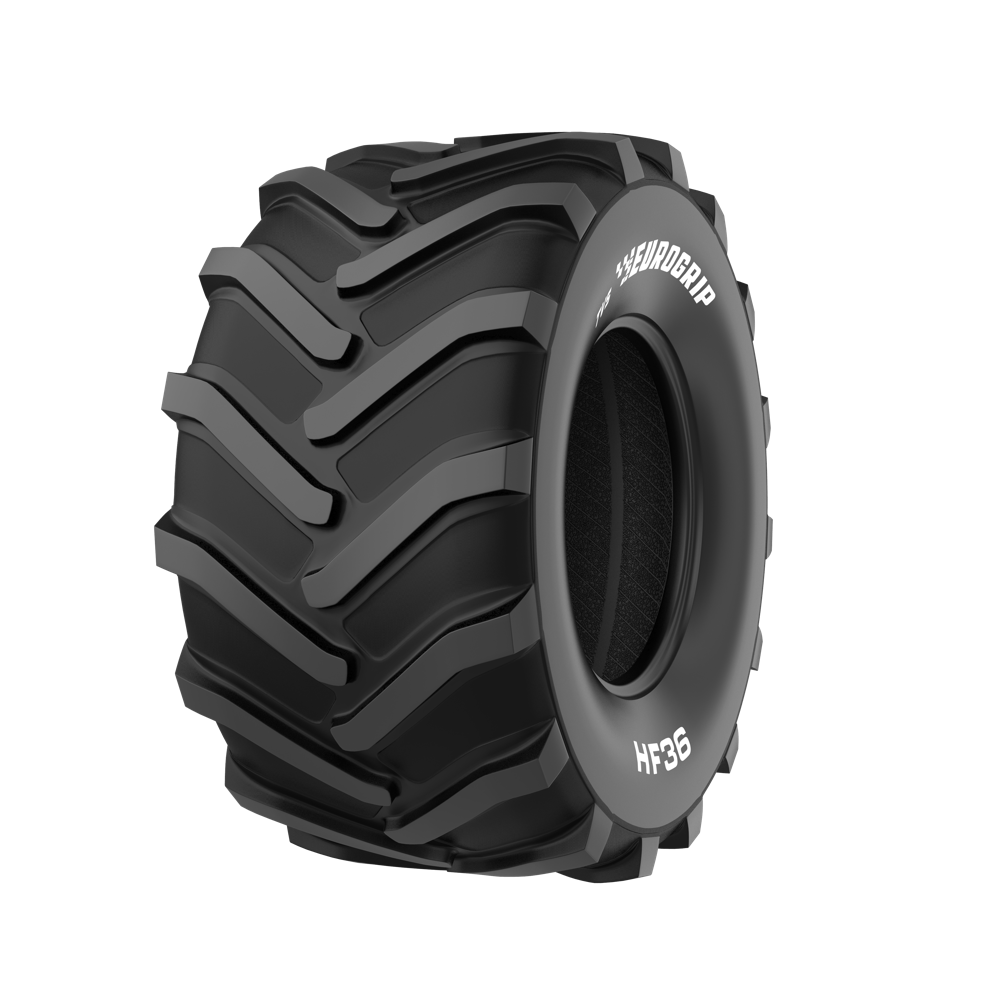

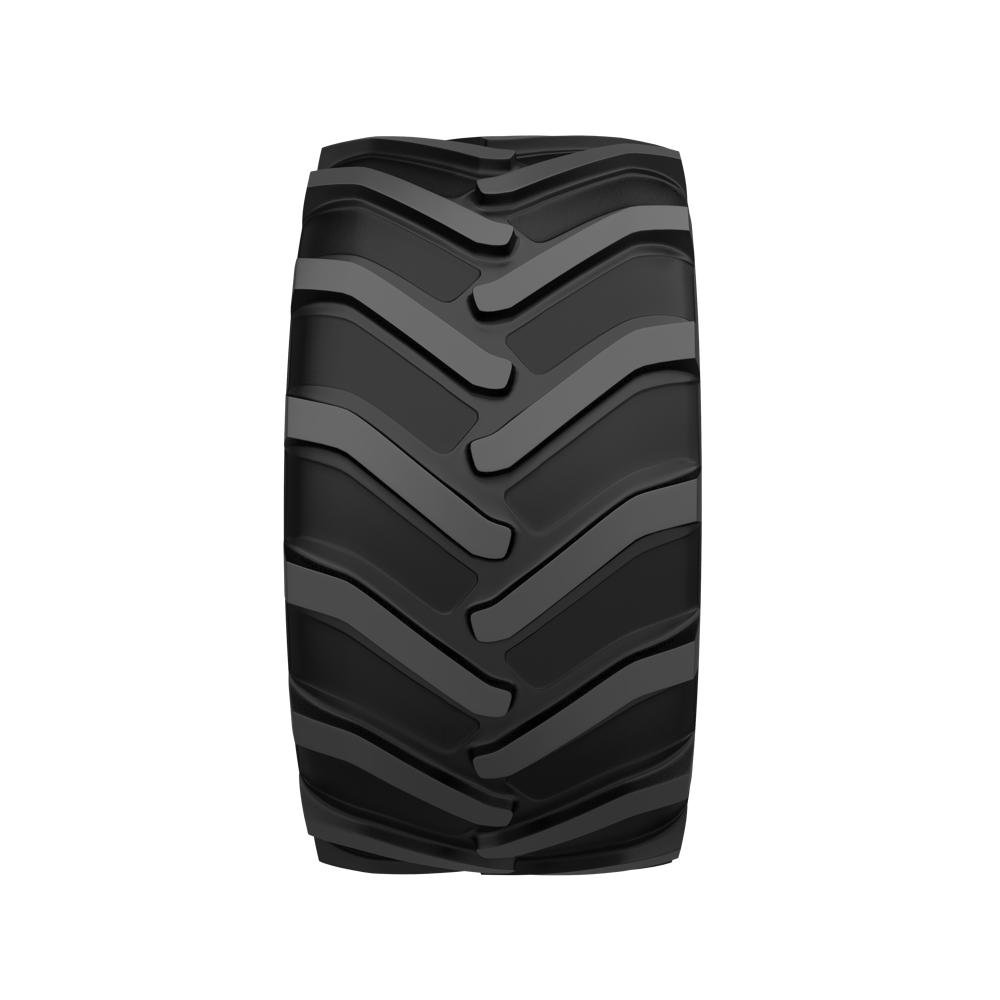

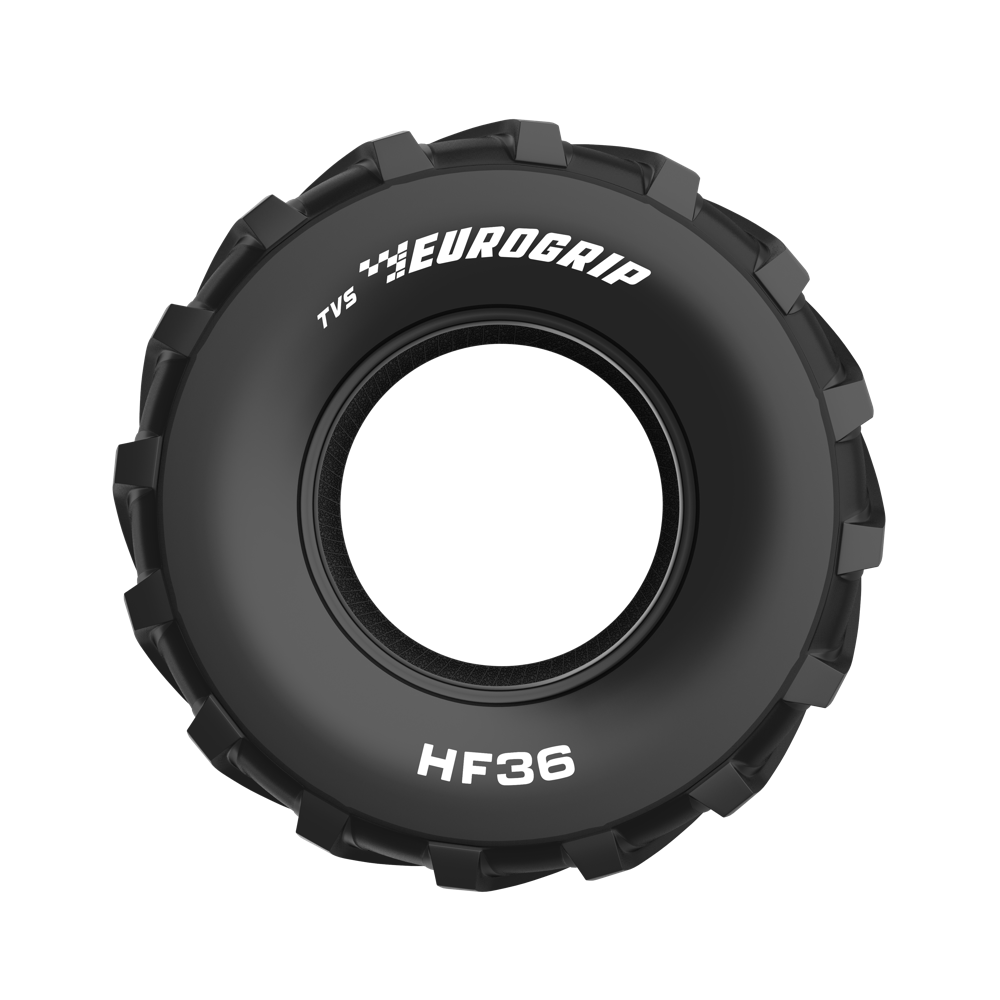

HF 36 High flotation tyre is designed for trenchers. It can be used for both agricultural and construction applications. The tread is reinforced with cut and chip resistant compound to provide good life in tough conditions. The well-spaced lugs provide excellent traction in wet conditions improving machine efficiency and reducing operator fatigue.
I-3
B
Bias
Suitable for
Trencher
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 31x15.50-15 | 13 LB | - | 401 | 820 | 358 | 2349 | TL | 8 | 116B | |
| 31x15.50-15 | 13 LB | - | 401 | 820 | 358 | 2349 | TL | 10 | 121B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
