Implement-Block

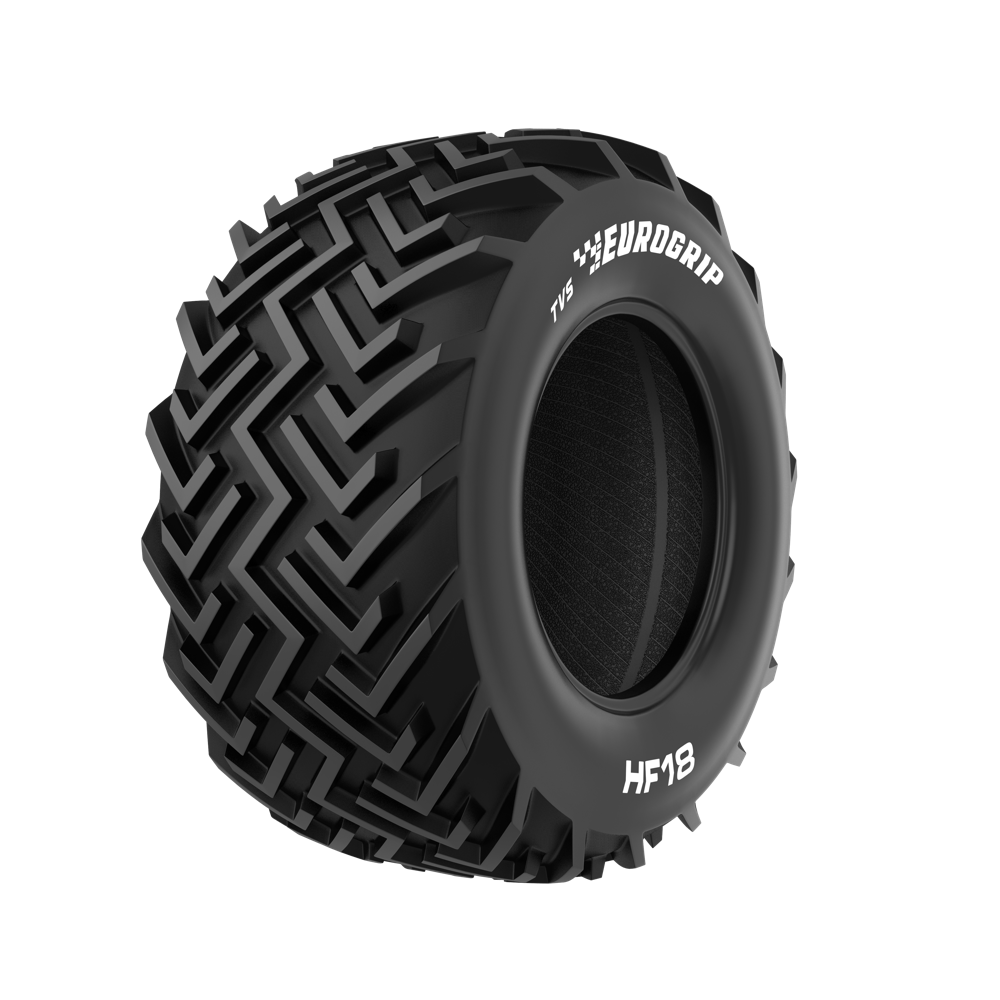

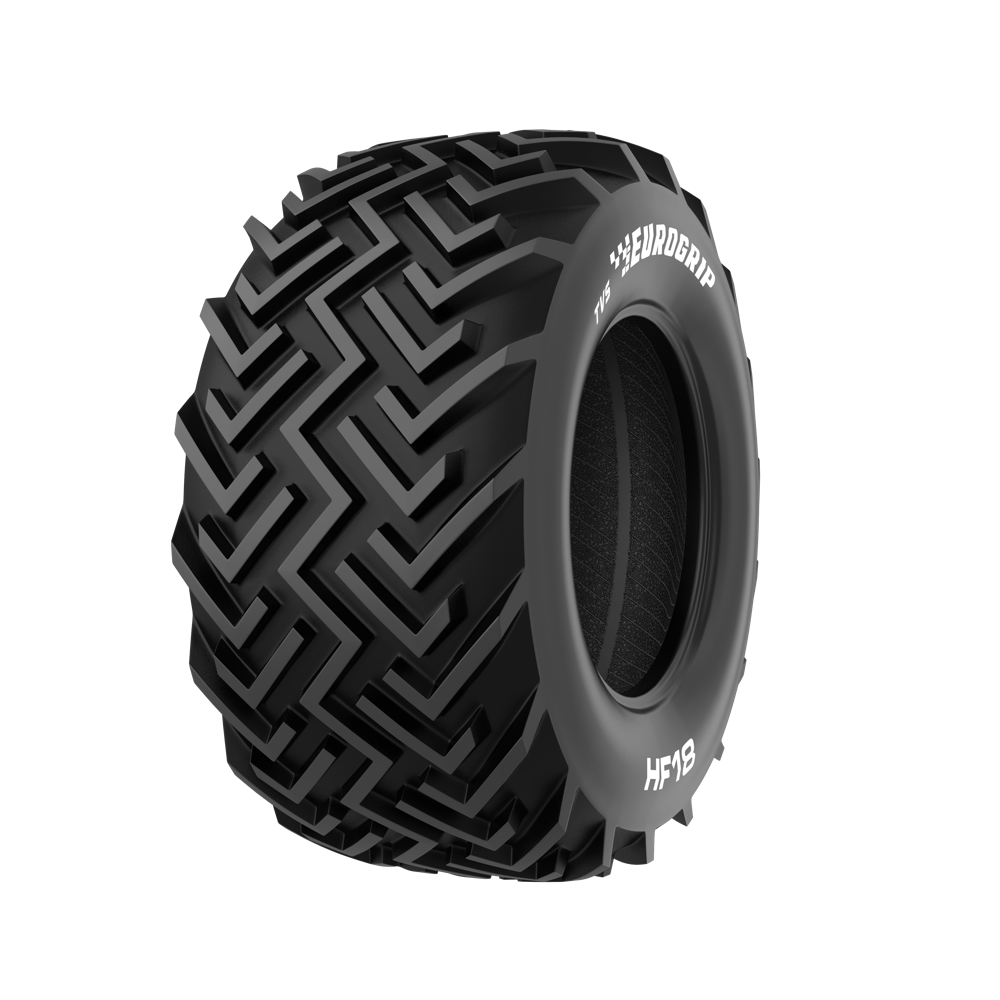

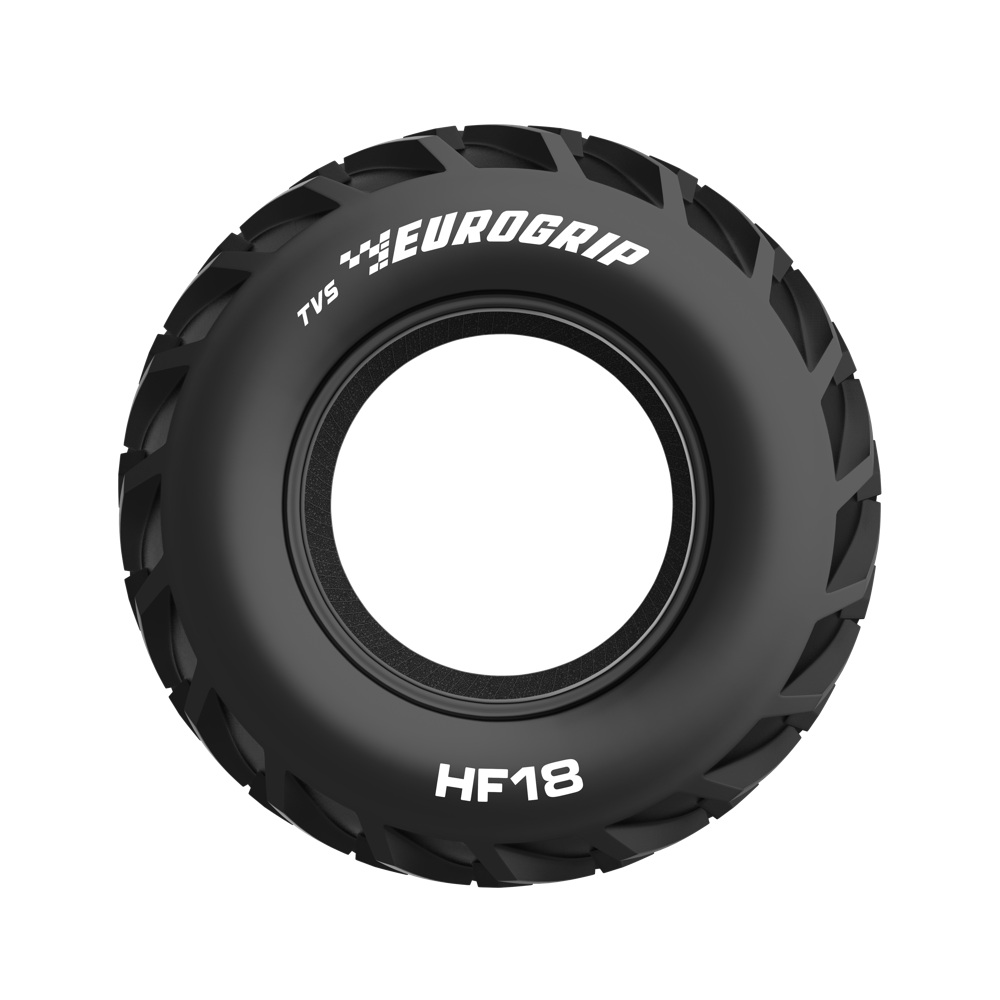

HF 18

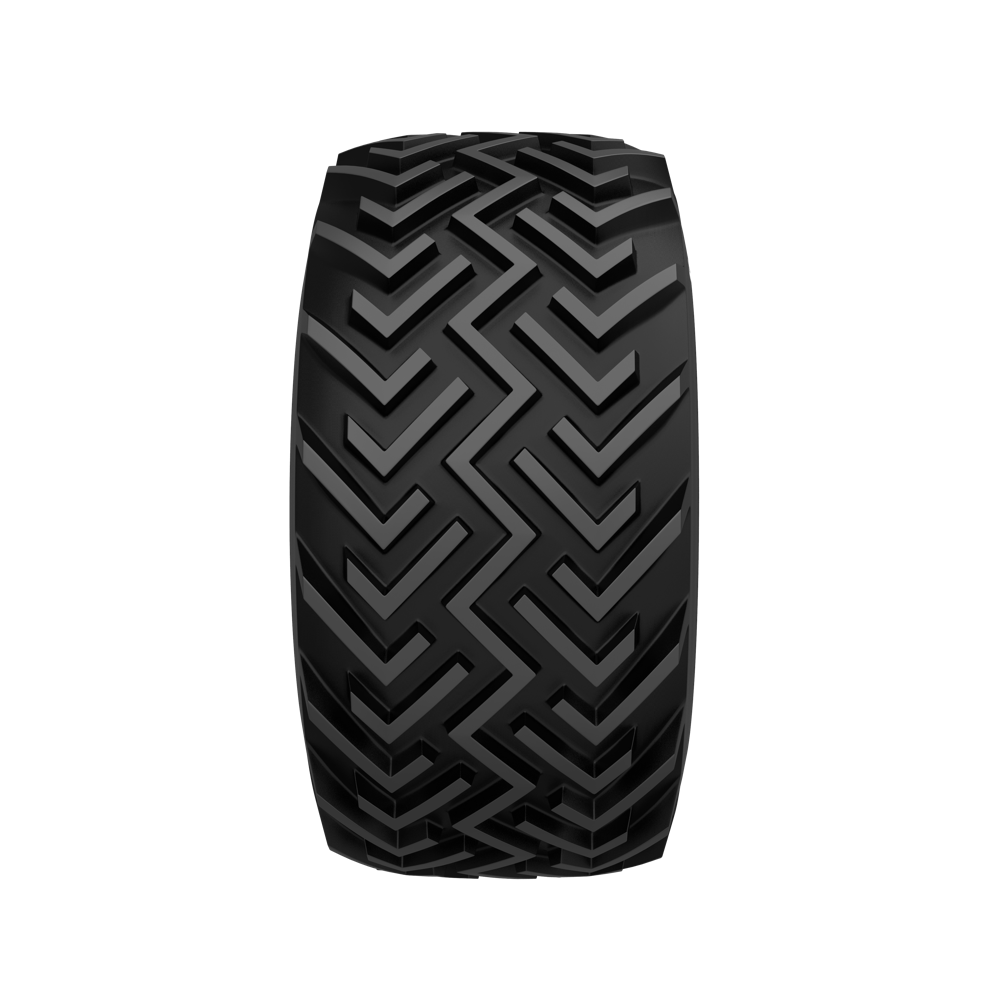

HF 18 high flotation low profile tyre is ideal for lawn & garden equipment and alpine tractors. Its aggressive staggered lug type tread pattern provides excellent traction, self-cleaning and lateral stability without damaging surface conditions. It is engineered for high load carrying capacity with reduced inflation and rolling resistance.
HF-2
A8
Bias
Suitable for
Alpine Tractor
Round Baler
Square Baler
Trailer
Wagon
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 31x15.50-15 | 13 LB | - | 374 | 774 | 345 | 2262 | TL | 8 | 121A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
