Implement-Lug

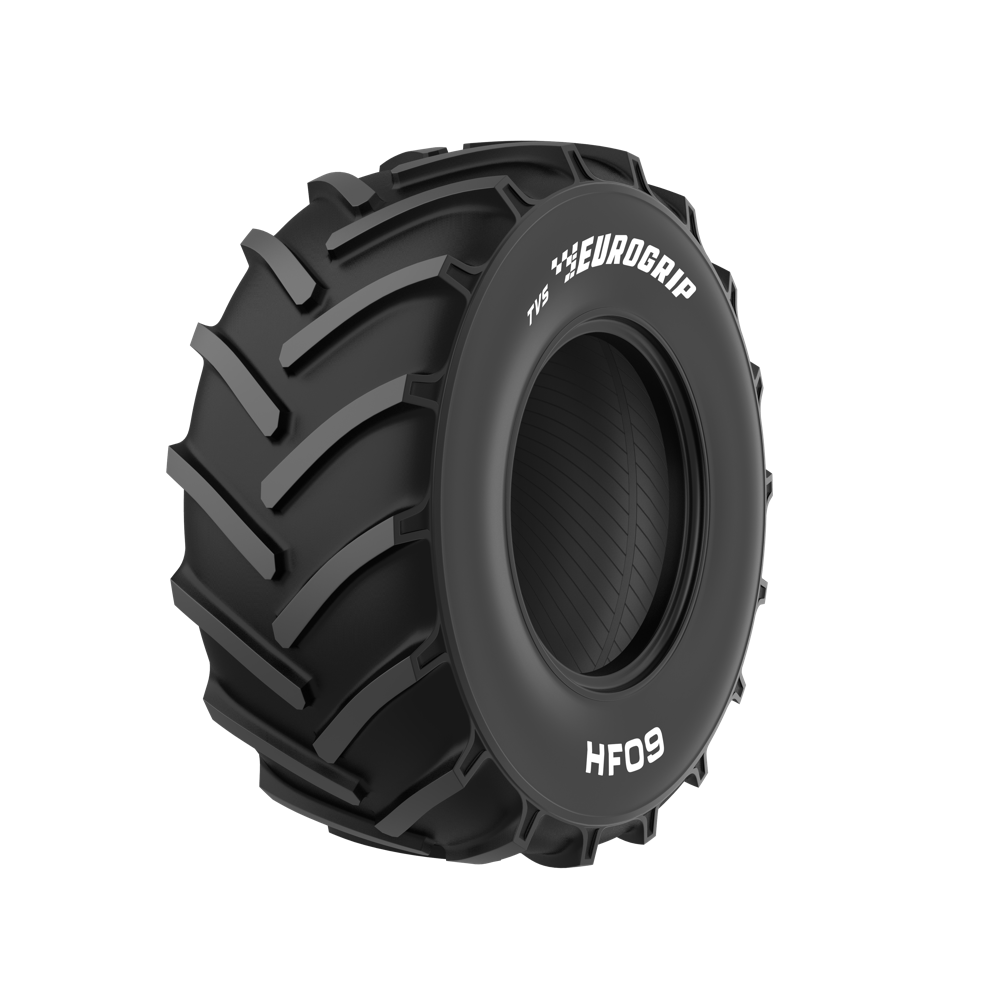

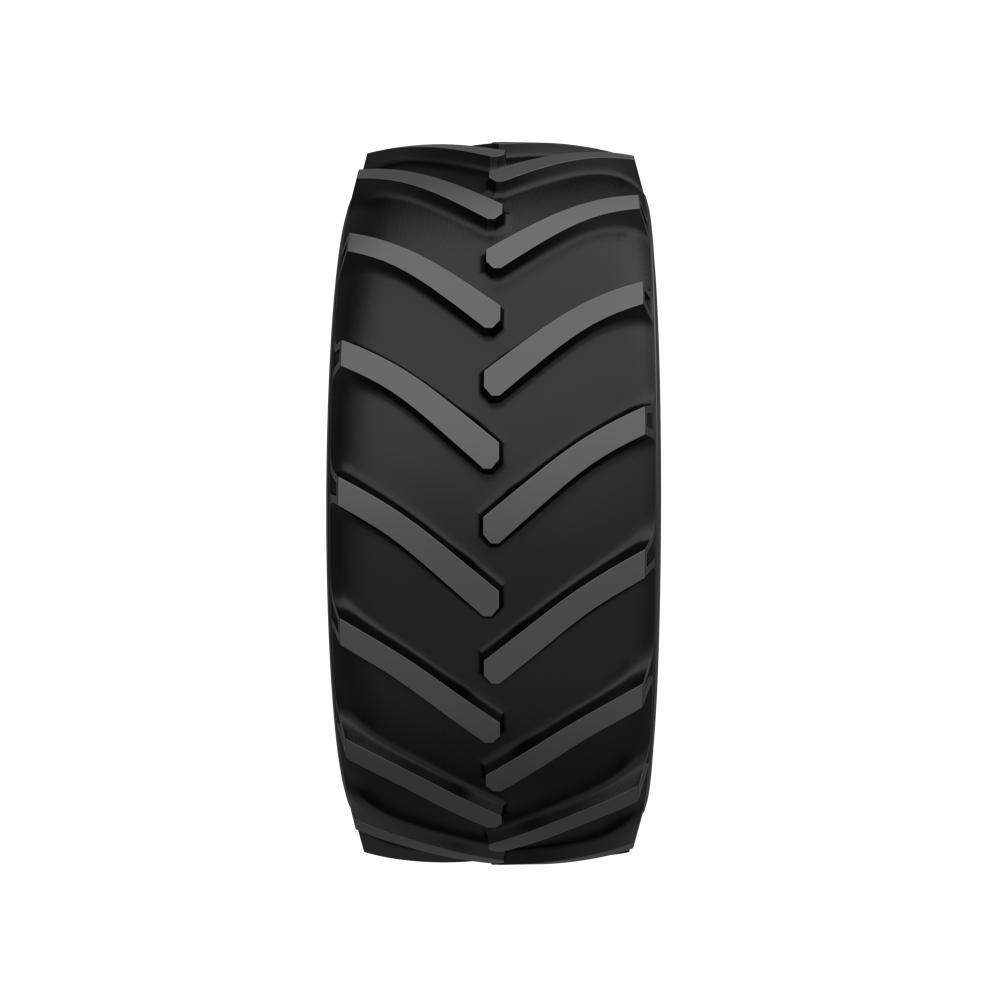

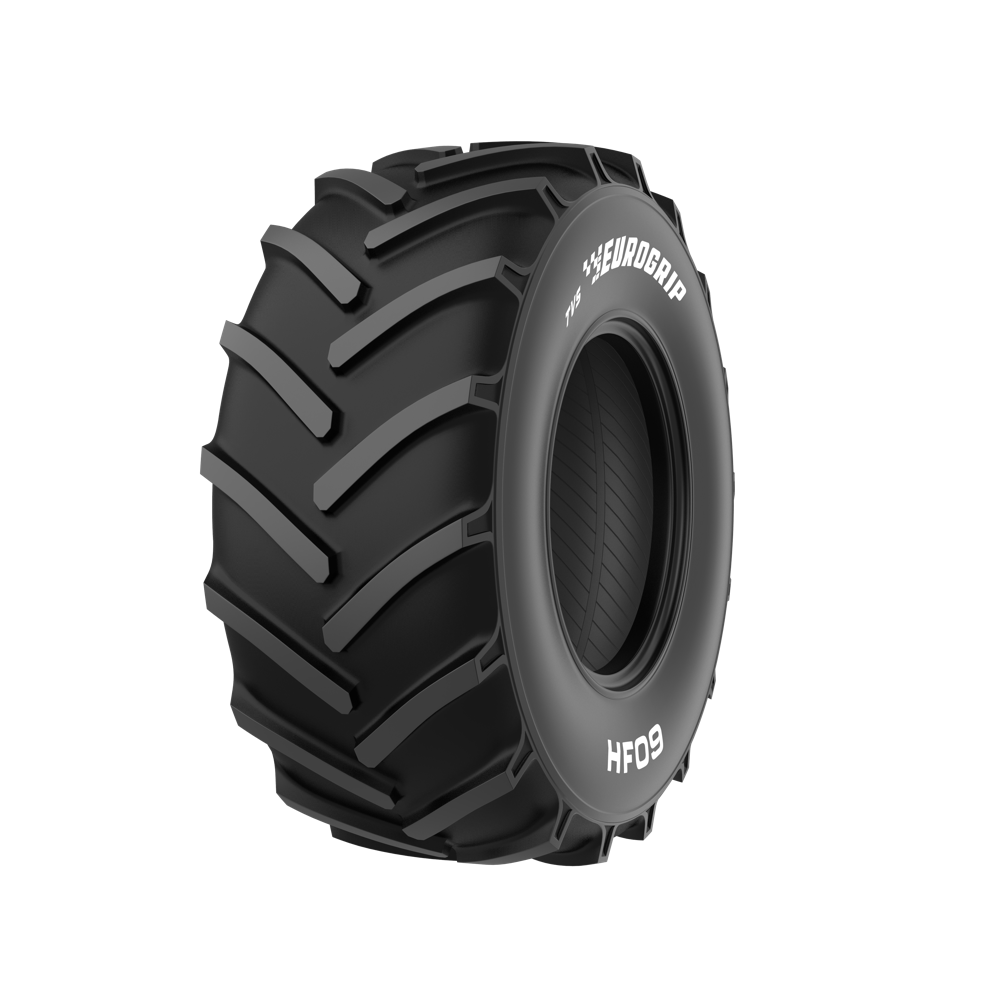

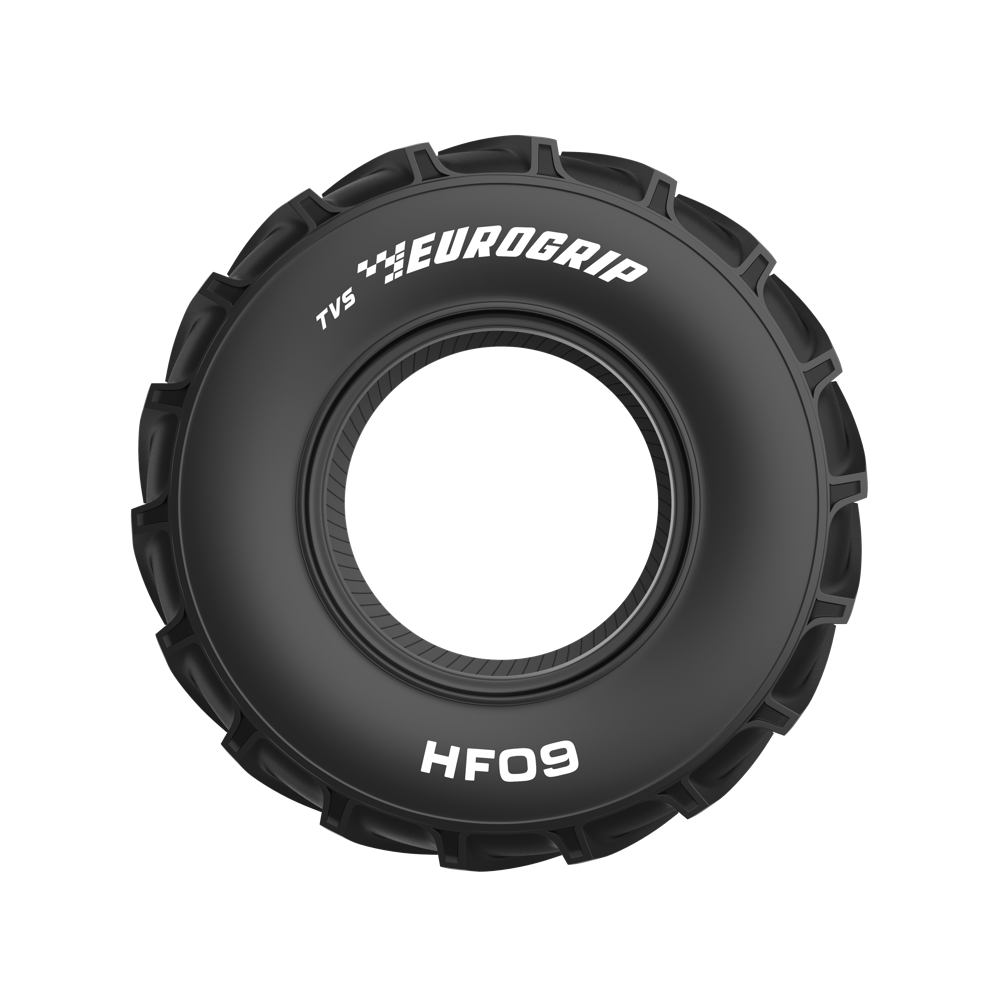

HF 09
Built with a large carcass that enables the tyre to carry higher loads with lower inflation pressure, the HF 09 is an ideal tyre for use in trenchers and agricultural implements that require high flotation. It provides good stability.The tyre is built with ozone resistant compound which makes it last longer. The ideally spaced and angled lugs provide excellent traction and promote superior self-cleaning.
HF-1
B
Bias
Suitable for
Trencher
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 29x12.50-15 | 10 LB | - | 327 | 748 | 334 | 2192 | TL | 6 | 98B | |
| 31x15.50-15 | 13 LB | - | 385 | 820 | 361 | 2372 | TL | 8 | 116B | |
| 31x15.50-15 | 13 LB | - | 385 | 820 | 361 | 2372 | TL | 10 | 125B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
