Motor Grader

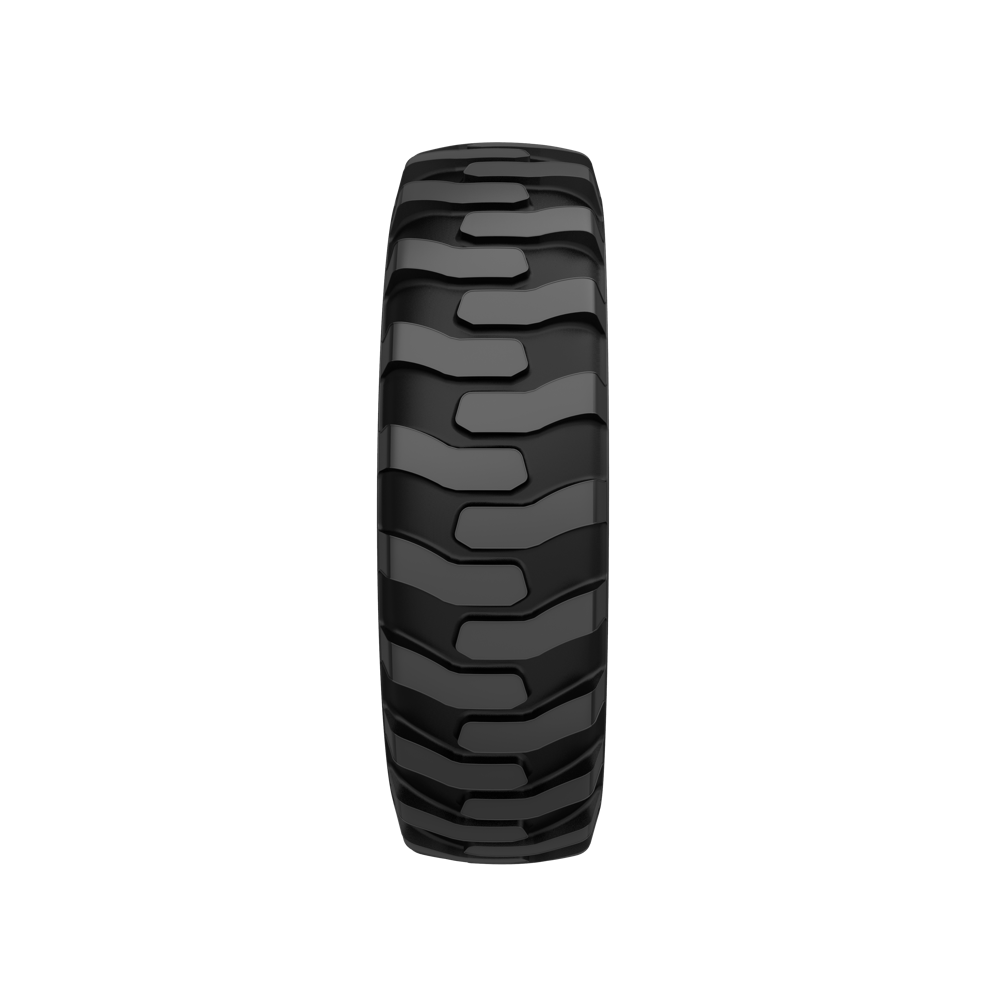

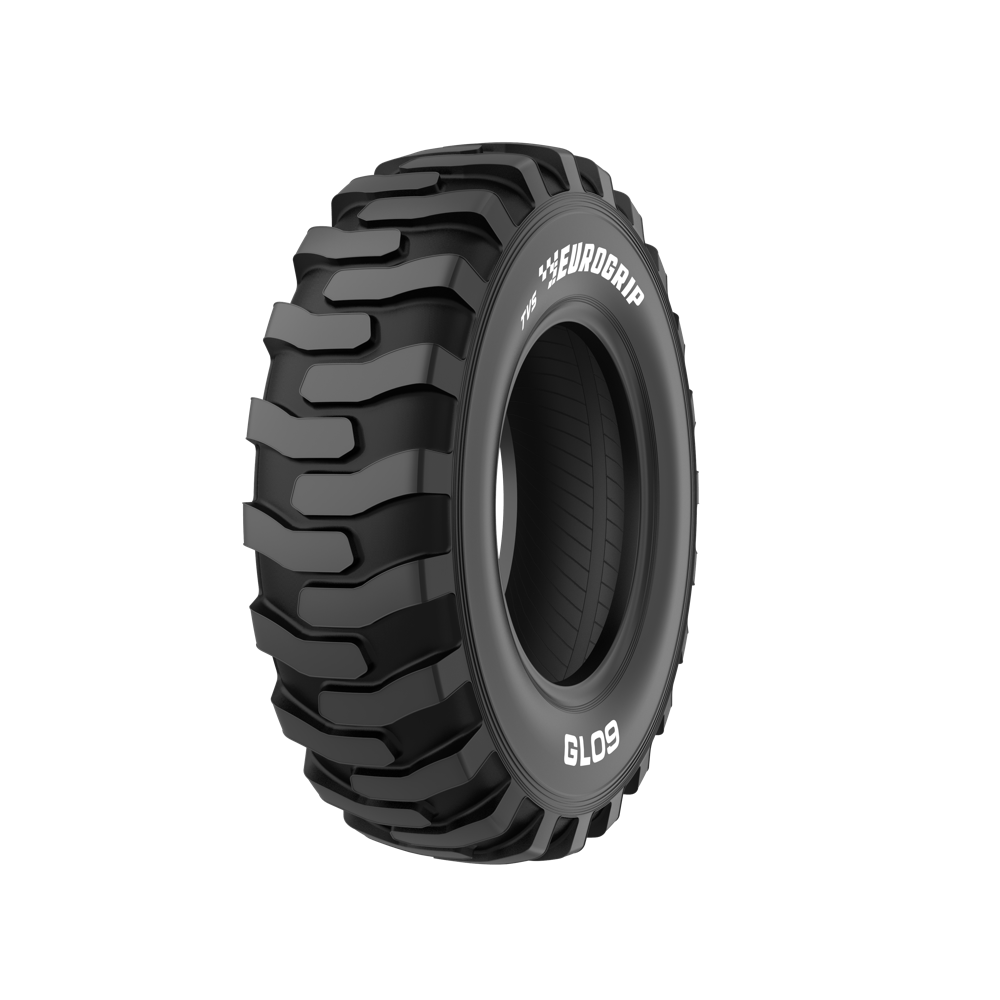

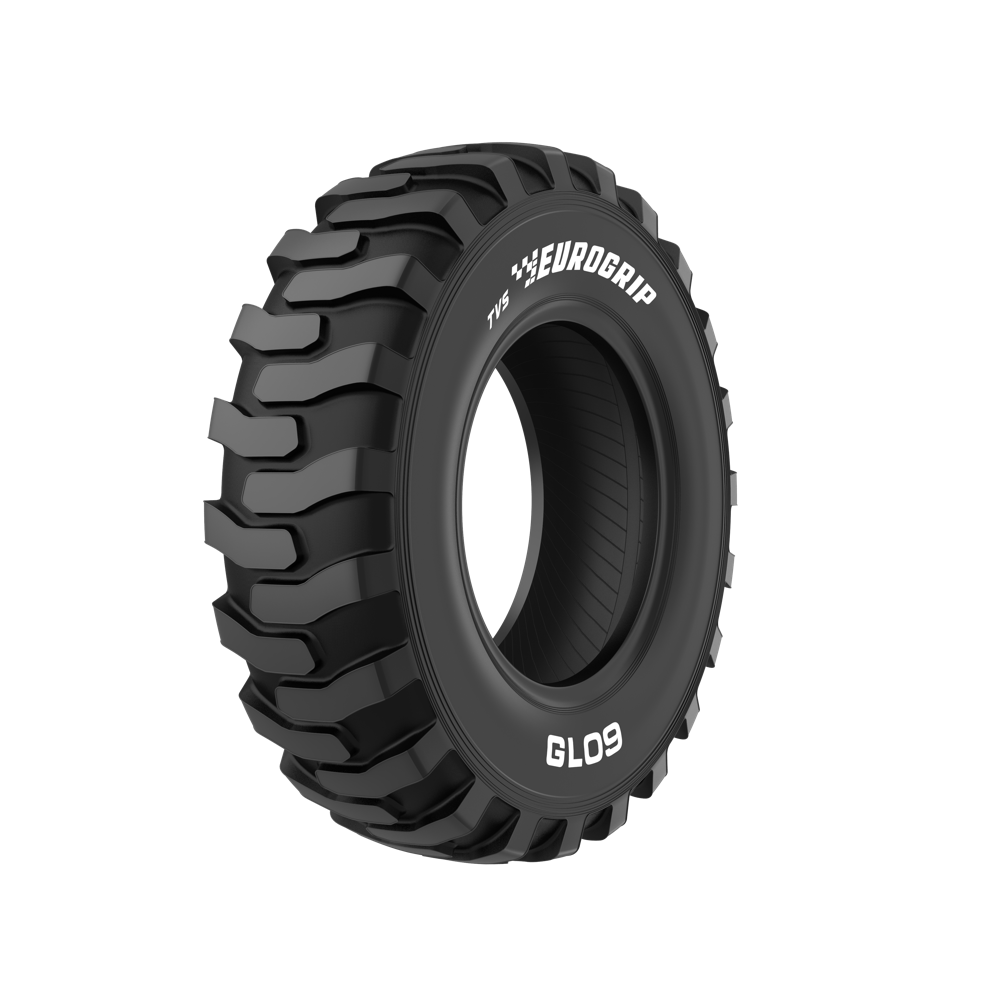

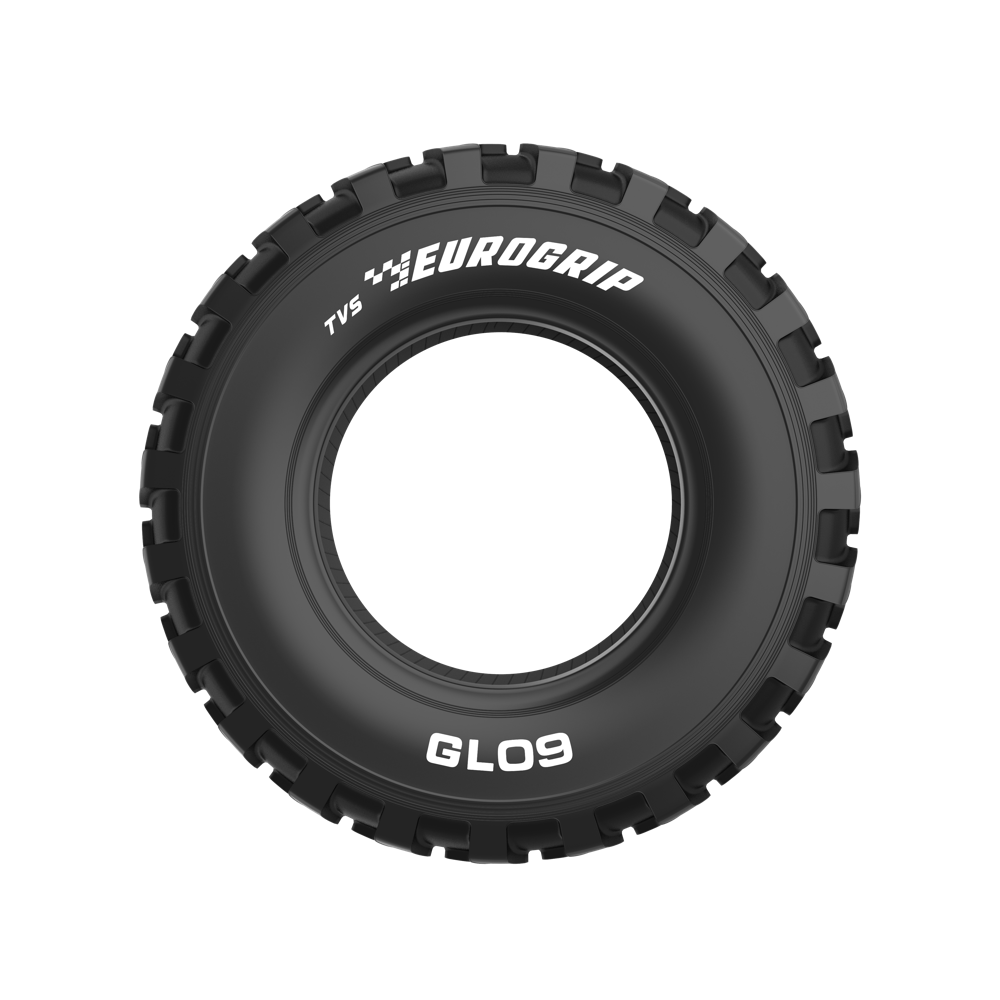

GL 09
The GL 09 L-2/G-2 tyre is a rugged and study tyre for drive wheel applications. It is ideal for wheel loaders and motor graders. Built with heavy duty carcass and a tread compound that is resistant to weather and ozone damages. Its cut and chip resistance reduce cuts, snags and surface injuries. The wide base of the tyre enables consistent traction.
L-2/G-2
A2/B
Bias
Suitable for
Motor Grader
Wheel Loader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 15.5-25 | 12 | - | 404 | 1288 | 599 | 3810 | TL | 12 | 168A2 | 149B | |
| 15.5-25 | 12 | - | 404 | 1288 | 599 | 3810 | TL | 16 | 174A2 | 155B | |
| 17.5-25 | 14 | - | 450 | 1365 | 694 | 4440 | TL | 12 | 171A2 | 153B | |
| 17.5-25 | 14 | - | 450 | 1365 | 694 | 4440 | TL | 16 | 177A2 | 158B | |
| 17.5-25 | 14 | - | 450 | 1365 | 694 | 4440 | TL | 20 | 181A2 | 164B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
