Implement-Traction

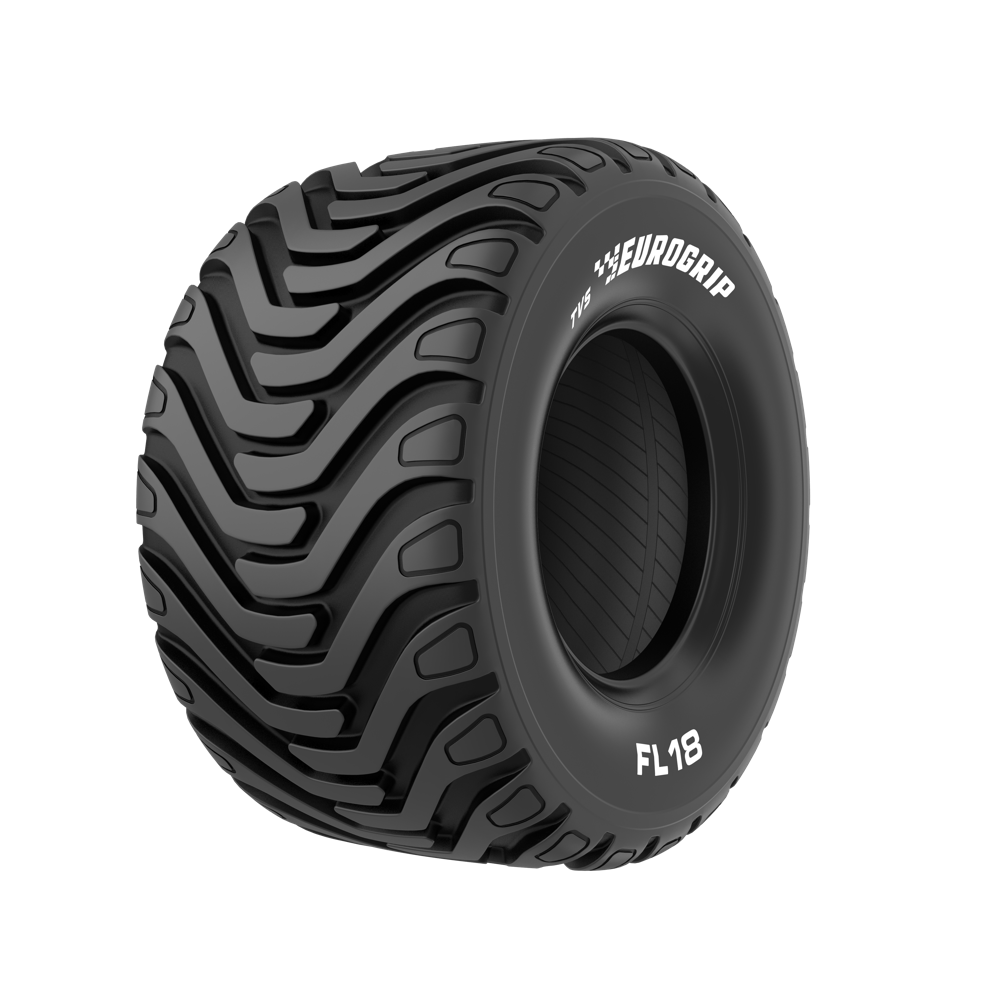

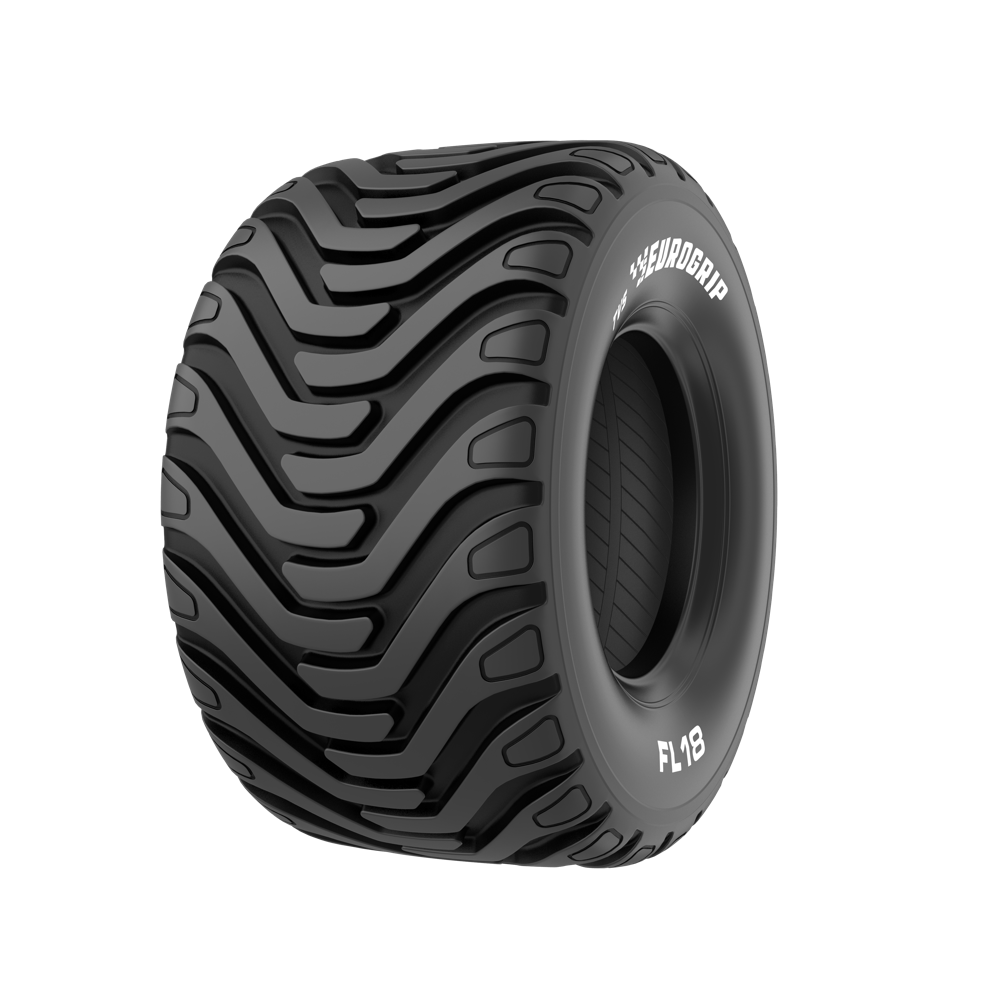

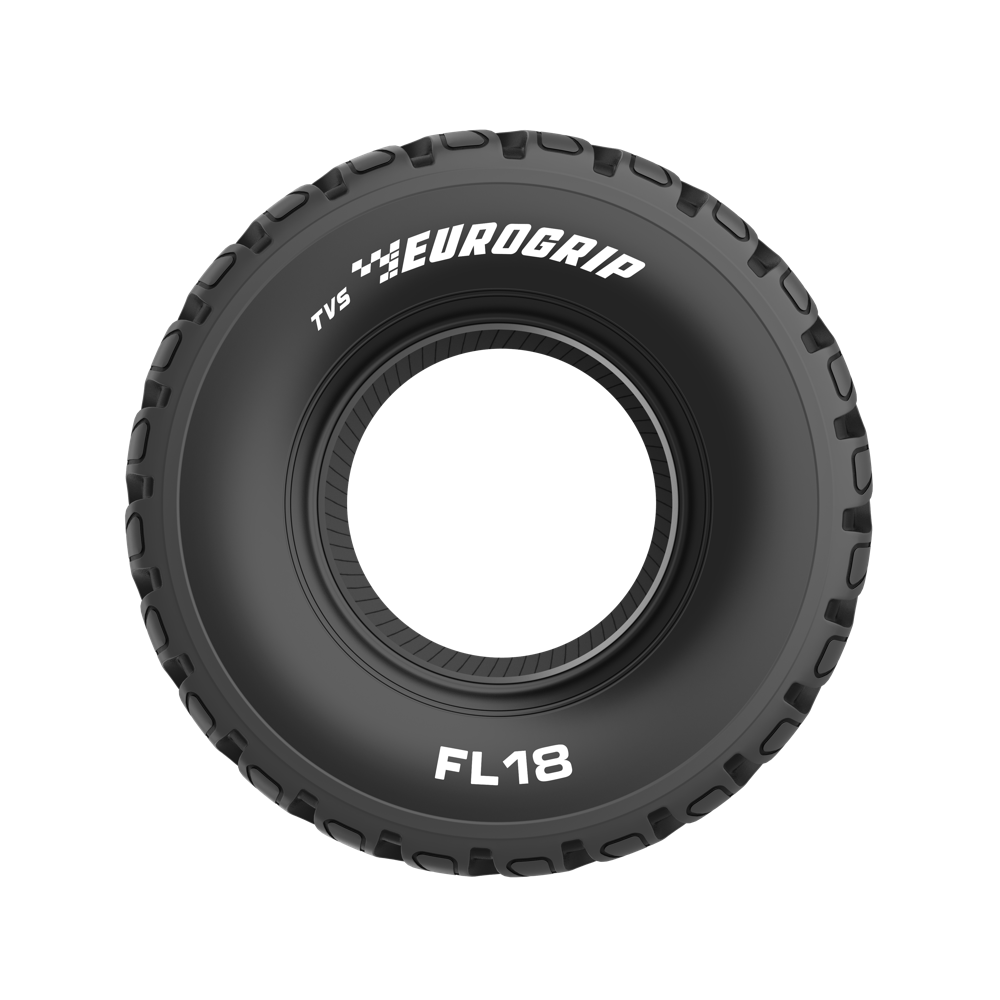

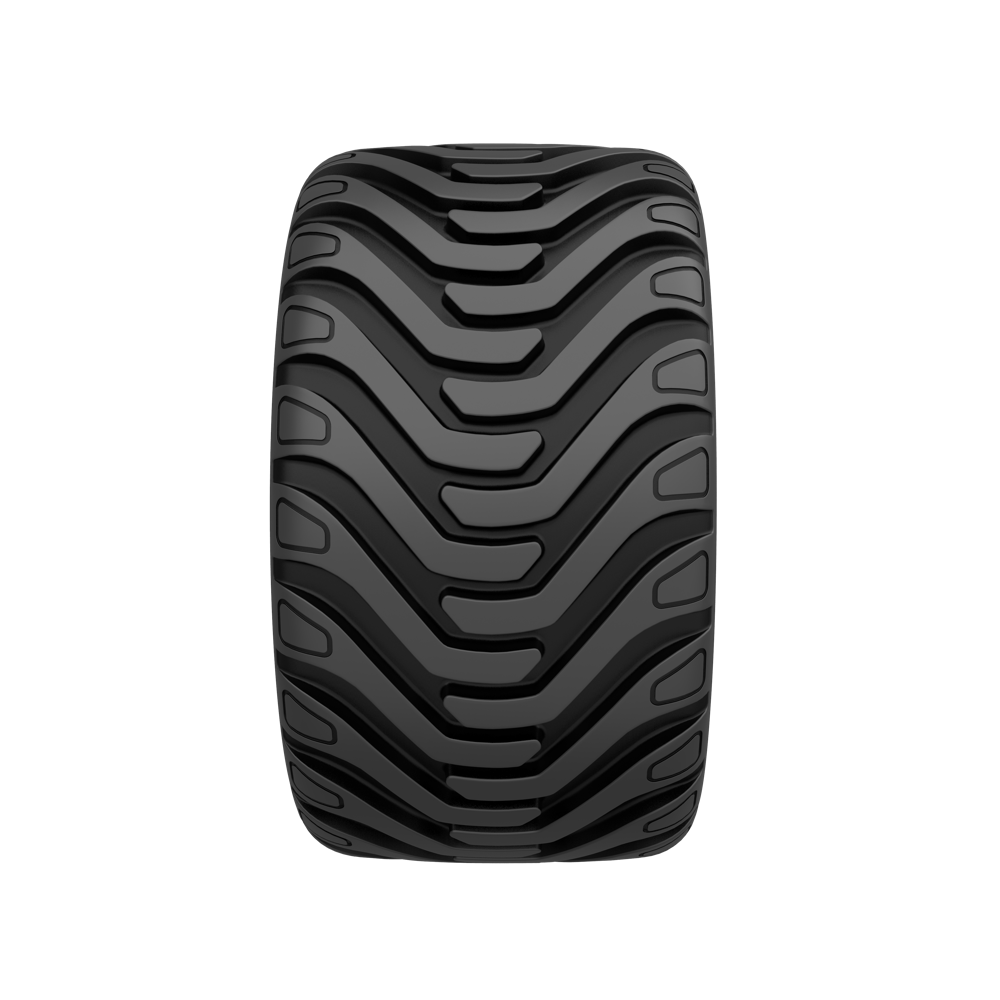

FL 18
FL 18 is a high flotation implement tyre suitable for both drive and free wheel application. With roundedshoulders the tyre causes minimal possible damage to sensitive surfaces. It is built for high load carrying
capacity and minimal possible soil compaction.
Its suited for use in agricultural implements such as balers, trailers, planters, seeders etc.
I-3
A8/B
Bias
Suitable for
Round Baler
Square Baler
Trailer
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 260/75-15.3 | 9 | - | 290 | 800 | 352 | 2325 | TL | - | 131A8-127B | 119A8-115B | |
| 300/80-15.3 | 9 | - | 312 | 870 | 383 | 2529 | TL | - | 138A8-134B | 126A8-122B | |
| 380/55-17 | 13 | - | 408 | 872 | 384 | 2534 | TL | - | 138A8 | 125A8 | |
| 520/50-17 | 16 | - | 513 | 961 | 419 | 2903 | TL | - | 159B | 147B | |
| 425/70-18 | 13 | - | 445 | 1050 | 480 | 3185 | TL | 14 | 155B | 143B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
