Agri Transport

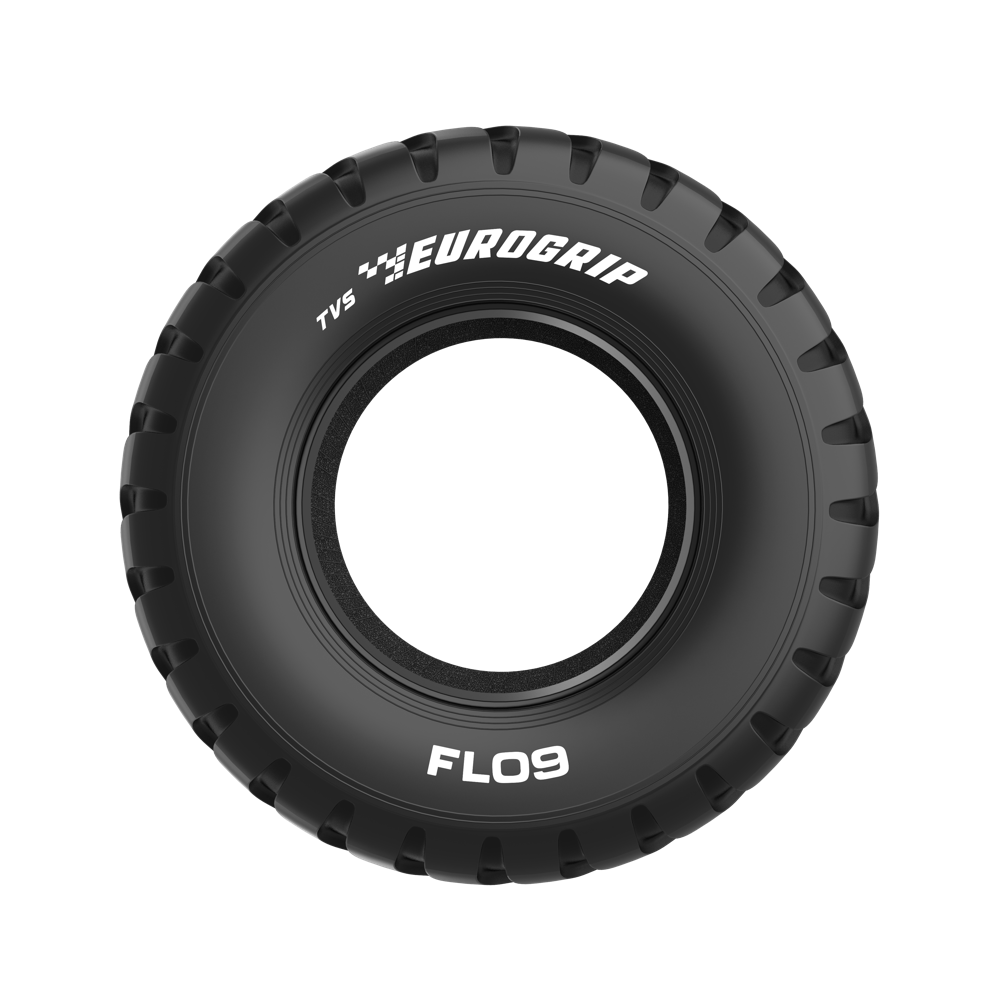

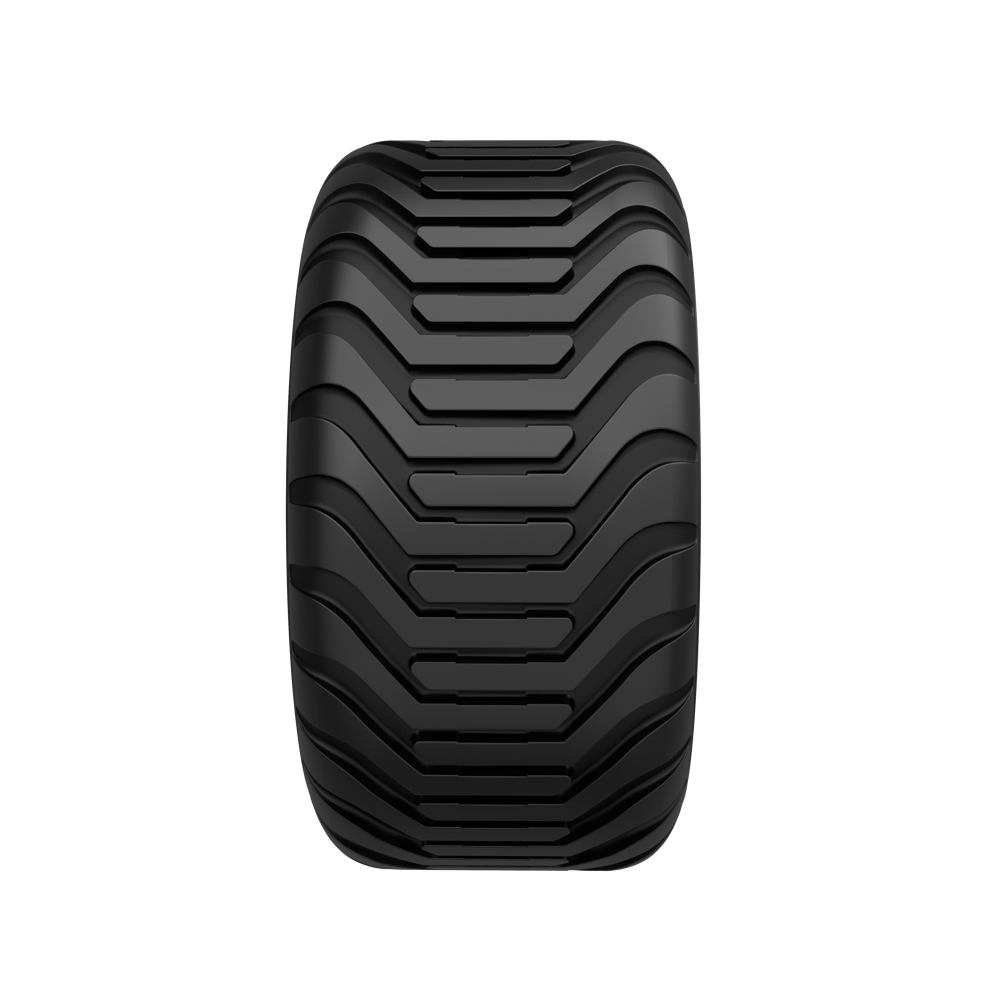

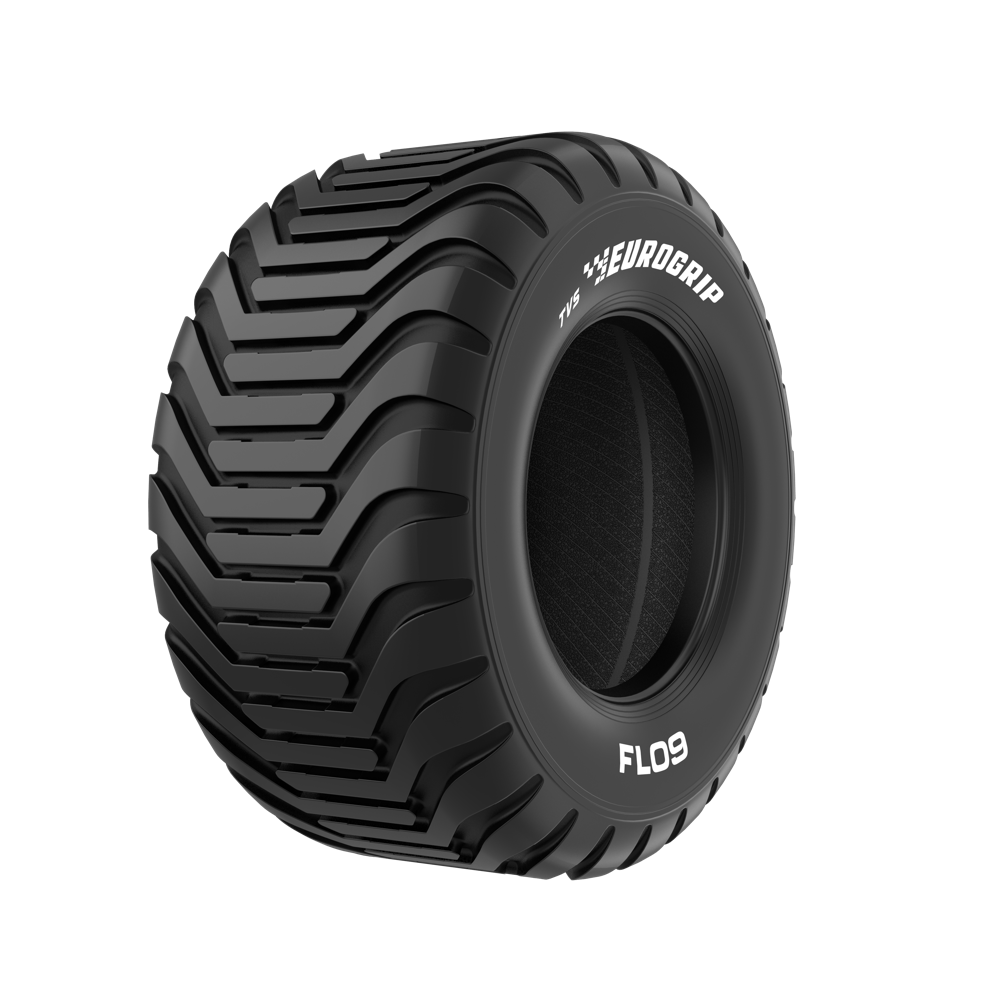

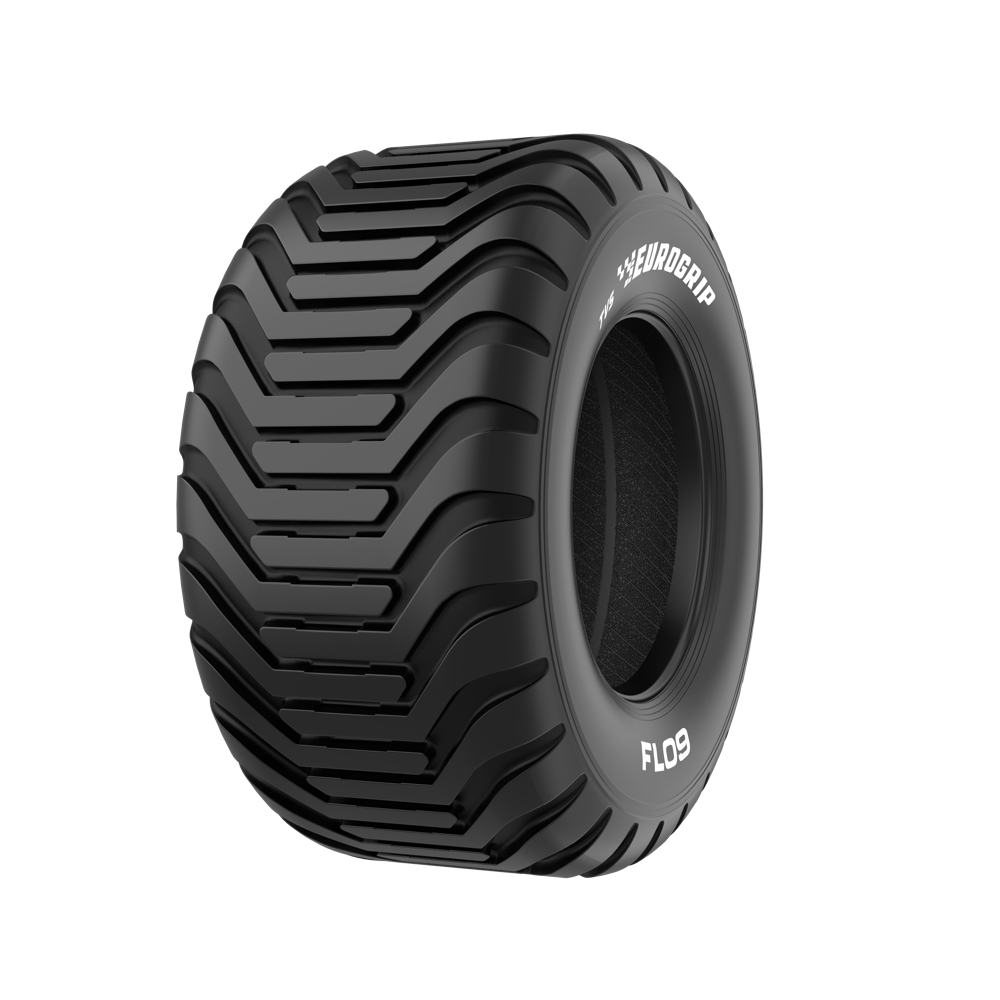

FL 09 HFL
FL 09 HFL is a value engineered variation of the popular FL 09 tread design. This tyre is suitable for light applications. It is ideal for towed trailers, bale trailers, light towed implements, small capacity balers and such.
I-3
A8/B
Bias
Suitable for
Round Baler
Square Baler
Trailer
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 500/60-22.5 | AG 16.00 | - | 500 | 1210 | 523 | 3467 | TL | 12 | 157A8 | 145A8 | |
| 500/60-22.5 | AG 16.00 | - | 500 | 1210 | 523 | 3467 | TL | 16 | 163A8 | 151A8 | |
| 550/60-22.5 | AG 16.00 | - | 545 | 1245 | 542 | 3569 | TL | 12 | 160A8 | 148A8 | |
| 550/60-22.5 | AG 16.00 | - | 545 | 1245 | 542 | 3569 | TL | 16 | 167A8 | 154A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
