FL 09

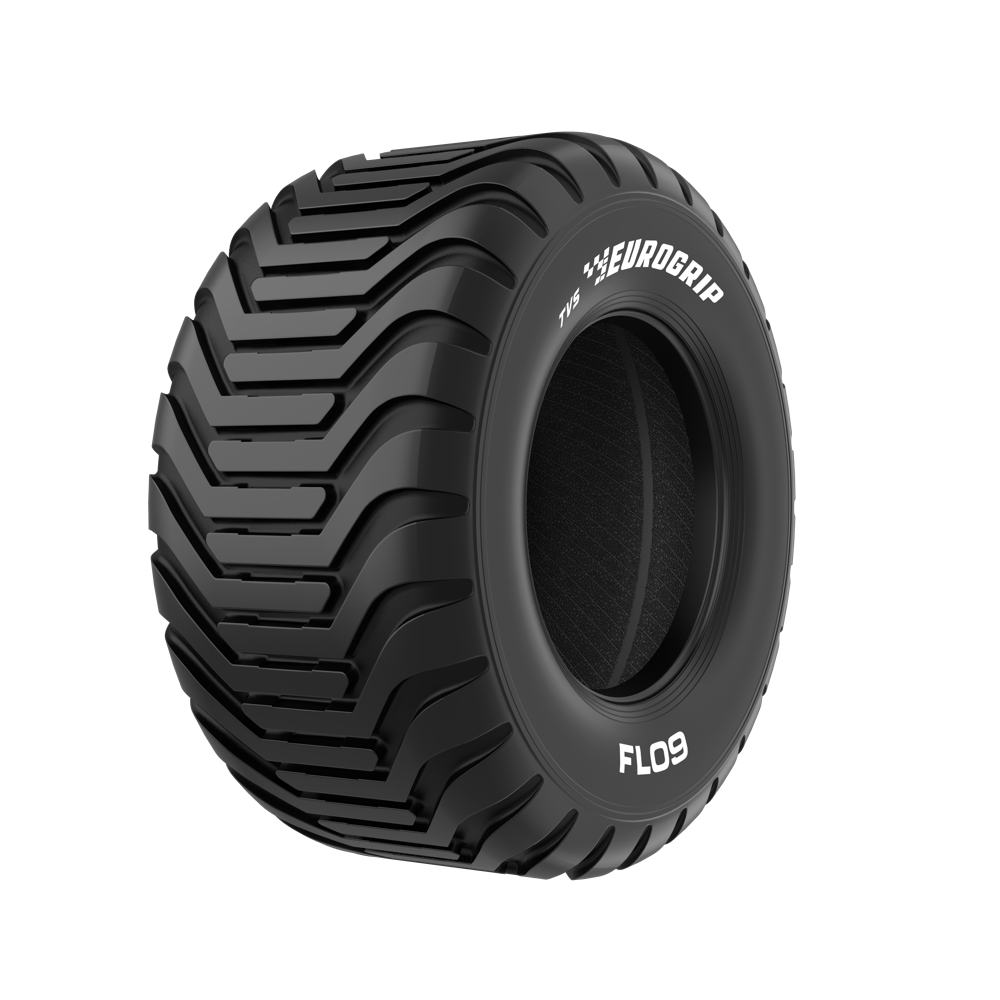

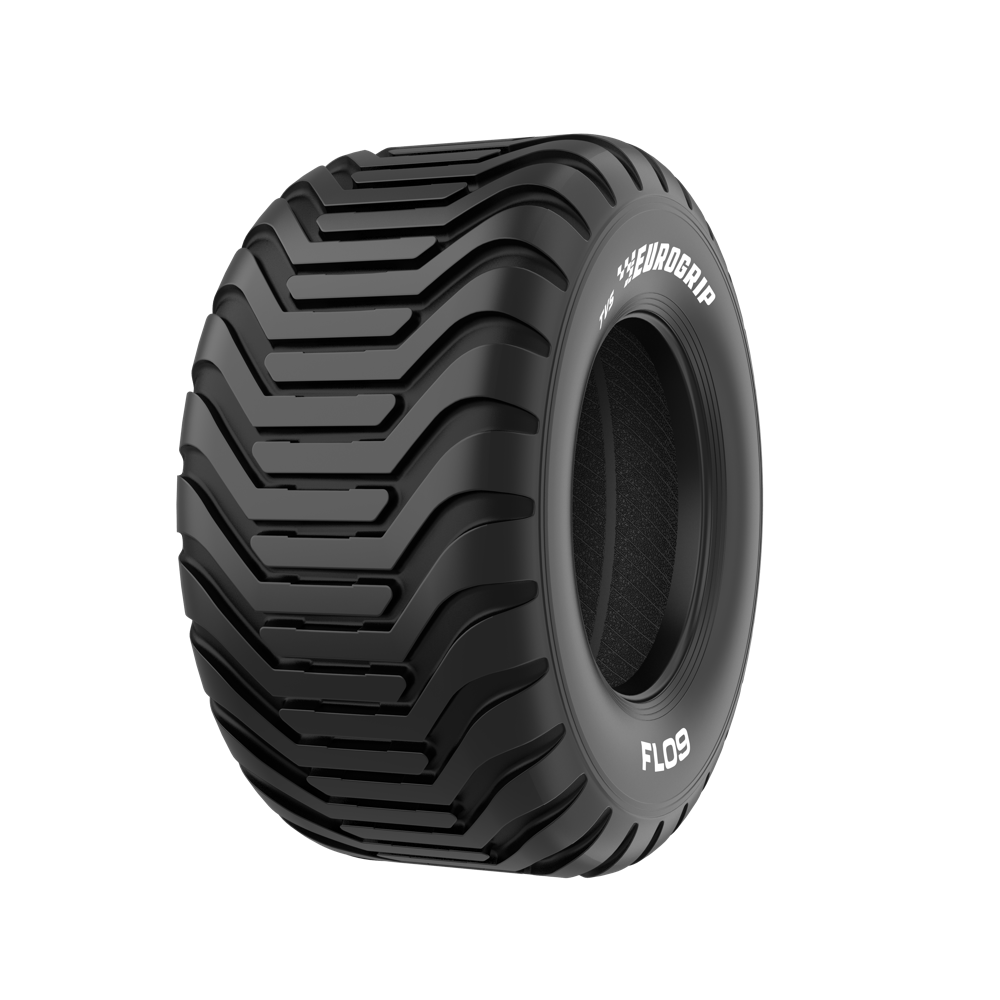

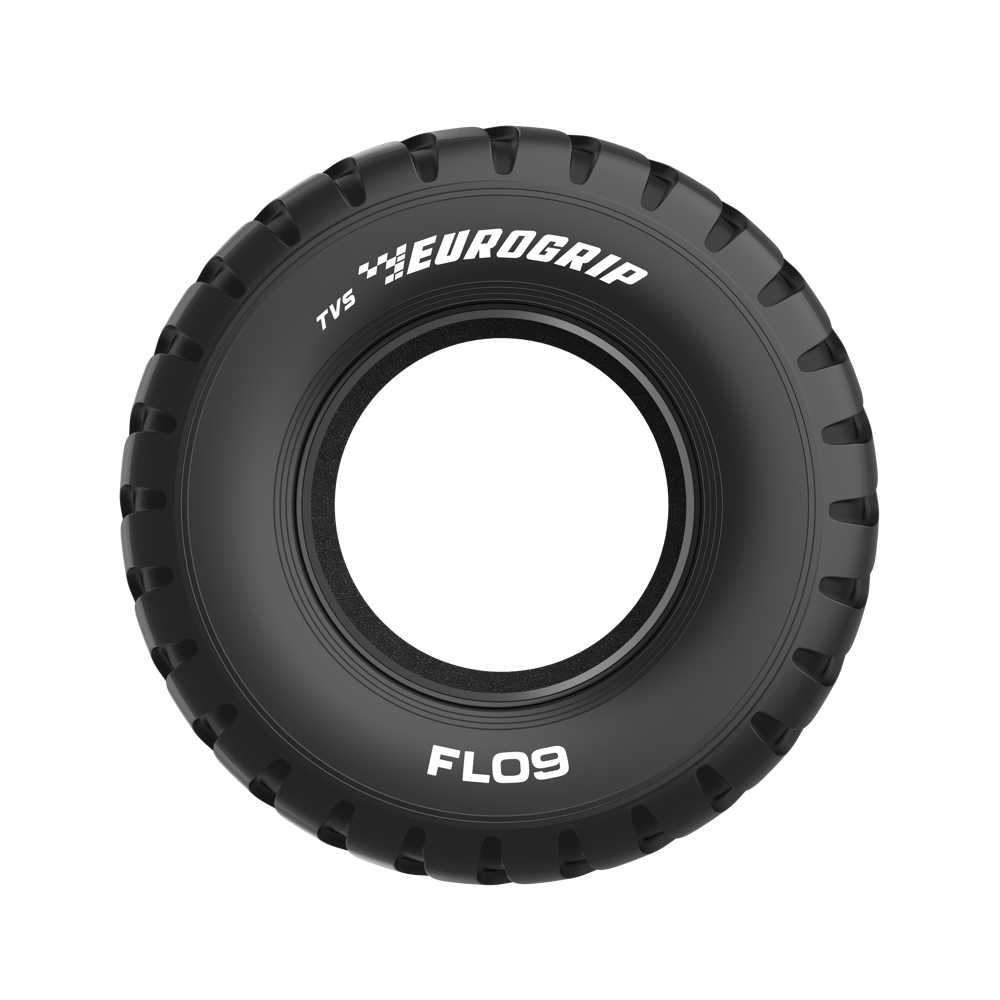

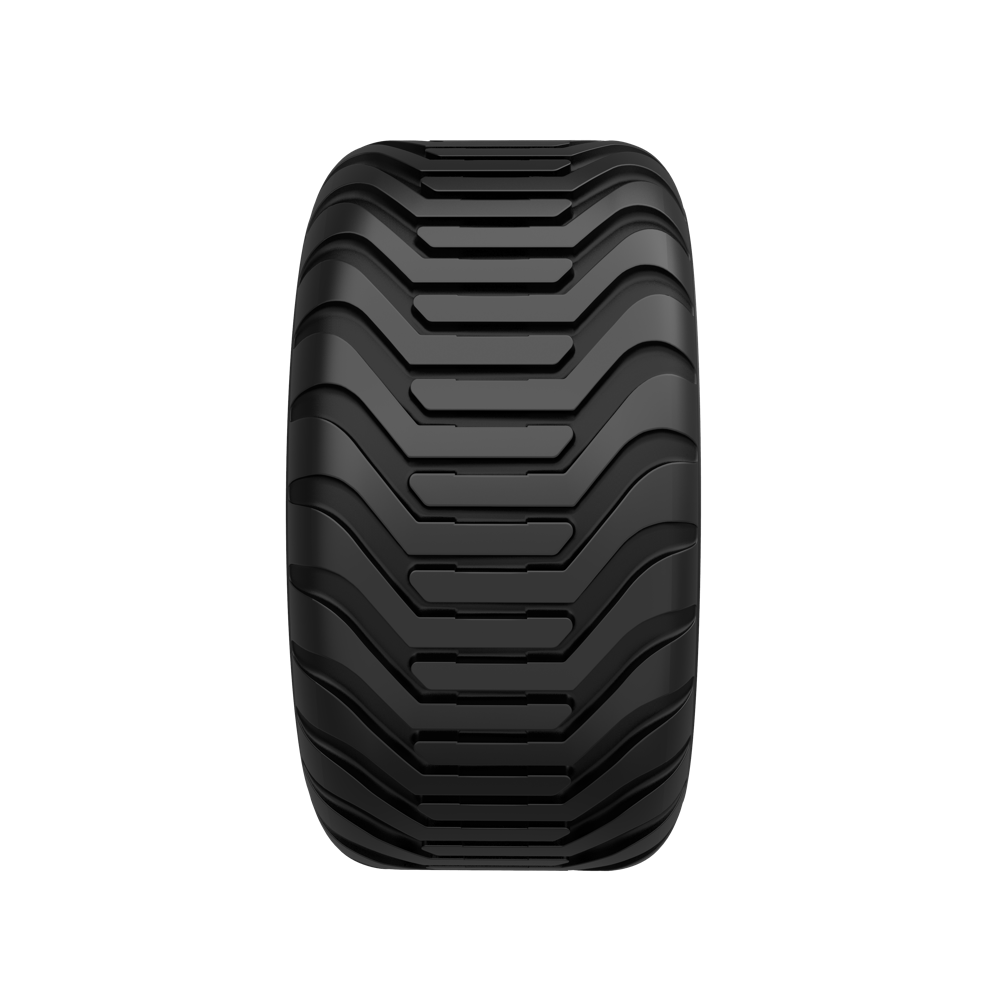

FL 09 is a standard low pressure flotation tyre designed with self-cleaning treads for agricultural implements. It is ideal both on road and field use. Its design prevents damage to the field and crops. Its larger footprint spreads the load over a wider area causing soil compaction.
I-3
A8/B
Bias
Suitable for
Round Baler
Square Baler
Trailer
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 480/45-17 | 16 | - | 470 | 866 | 381 | 2514 | TL | - | 146A8 | 134A8 | |
| 500/50-17 | 16 | - | 513 | 915 | 404 | 2659 | TL | - | 149A8-146B | 136A8-133B | |
| 500/50-17 | 16 | - | 513 | 915 | 404 | 2659 | TL | - | 155A8-151B | 142A8-138B | |
| 500/55-17 | 16 | - | 488 | 998 | 445 | 2911 | TL | 12 | 138A8-135B | 151A8-148B | |
| 385/65-22.5 | AG 11.75 | - | 423 | 1042 | 463 | 3017 | TL | 16 | 154A8 | 141A8 | |
| 400/55-22.5 | AG 11.75 | - | 419 | 1044 | 452 | 2993 | TL | 12 | 146A8 | 134A8 | |
| 400/55-22.5 | AG 11.75 | - | 419 | 1044 | 452 | 2993 | TL | 16 | 152A8 | 140A8 | |
| 400/60-22.5 | AG 11.75 | - | 410 | 1045 | 463 | 3017 | TL | 18 | 158A8 | 144A8 | |
| 500/45-22.5 | AG 16.00 | - | 503 | 1015 | 455 | 3022 | TL | 12 | 149A8 | 136A8 | |
| 500/45-22.5 | AG 16.00 | - | 503 | 1015 | 455 | 3022 | TL | 16 | 155A8 | 142A8 | |
| 500/60-22.5 | AG 16.00 | - | 500 | 1210 | 523 | 3467 | TL | 12 | 157A8 | 145A8 | |
| 500/60-22.5 | AG 16.00 | - | 500 | 1210 | 523 | 3467 | TL | 16 | 163A8 | 151A8 | |
| 550/45-22.5 | AG 16.00 | - | 550 | 1055 | 479 | 3121 | TL | 12 | 153A8 | 141A8 | |
| 550/45-22.5 | AG 16.00 | - | 550 | 1055 | 479 | 3121 | TL | 16 | 159A8 | 147A8 | |
| 550/60-22.5 | AG 16.00 | - | 545 | 1245 | 542 | 3569 | TL | 12 | 160A8 | 148A8 | |
| 550/60-22.5 | AG 16.00 | - | 545 | 1245 | 542 | 3569 | TL | 16 | 167A8 | 154A8 | |
| 550/60-22.5 | AG 16.00 | - | 545 | 1245 | 542 | 3569 | TL | 20 | 171A8 | 159A8 | |
| 600/50-22.5 | AG 20.00 | - | 618 | 1170 | 511 | 3389 | TL | 16 | 165A8 | 153A8 | |
| 600/55-22.5 | AG 20.00 | - | 645 | 1245 | 535 | 3755 | TL | 16 | 169A8 | 156A8 | |
| 700/40-22.5 | AG 24.00 | - | 702 | 1158 | 499 | 3308 | TL | 16 | 166A8 | 154A8 | |
| 700/50-22.5 | AG 24.00 | - | 725 | 1270 | 550 | 3815 | TL | 16 | 174A8-170B | 162A8/152B | |
| 600/55-26.5 | AG 20.00 | - | 640 | 1335 | 590 | 4015 | TL | 16 | 170A8 | 159A8 | |
| 700/50-26.5 | AG 24.00 | - | 726 | 1373 | 590 | 4080 | TL | 16 | 174A8 | 162B | |
| 800/45-26.5 | AG 28.00 | - | 815 | 1380 | 600 | 4060 | TL | 16 | 177A8 | 164A8 | |
| 650/65-30.5 | AG 20.00 | - | 685 | 1630 | 715 | 4750 | TL | 16 | 167A8 | 179A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
