Implement-Z Rib

FF 09

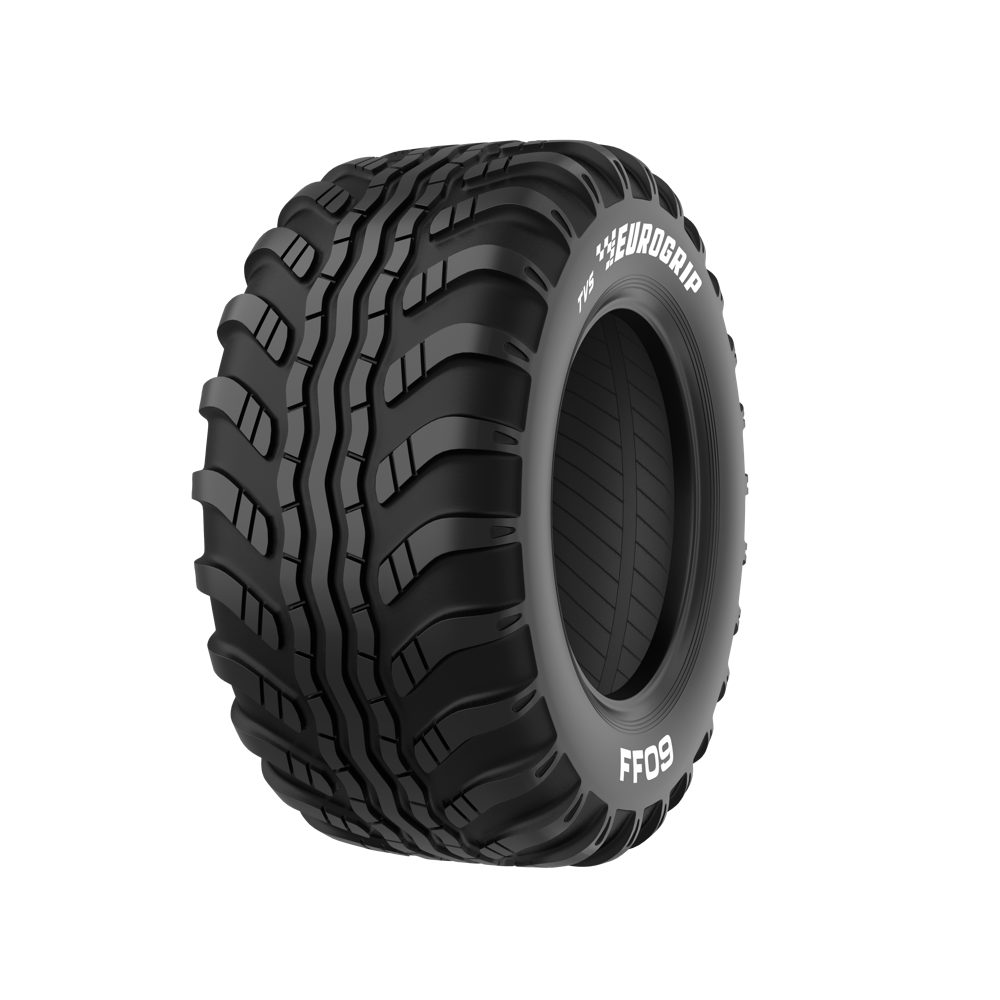

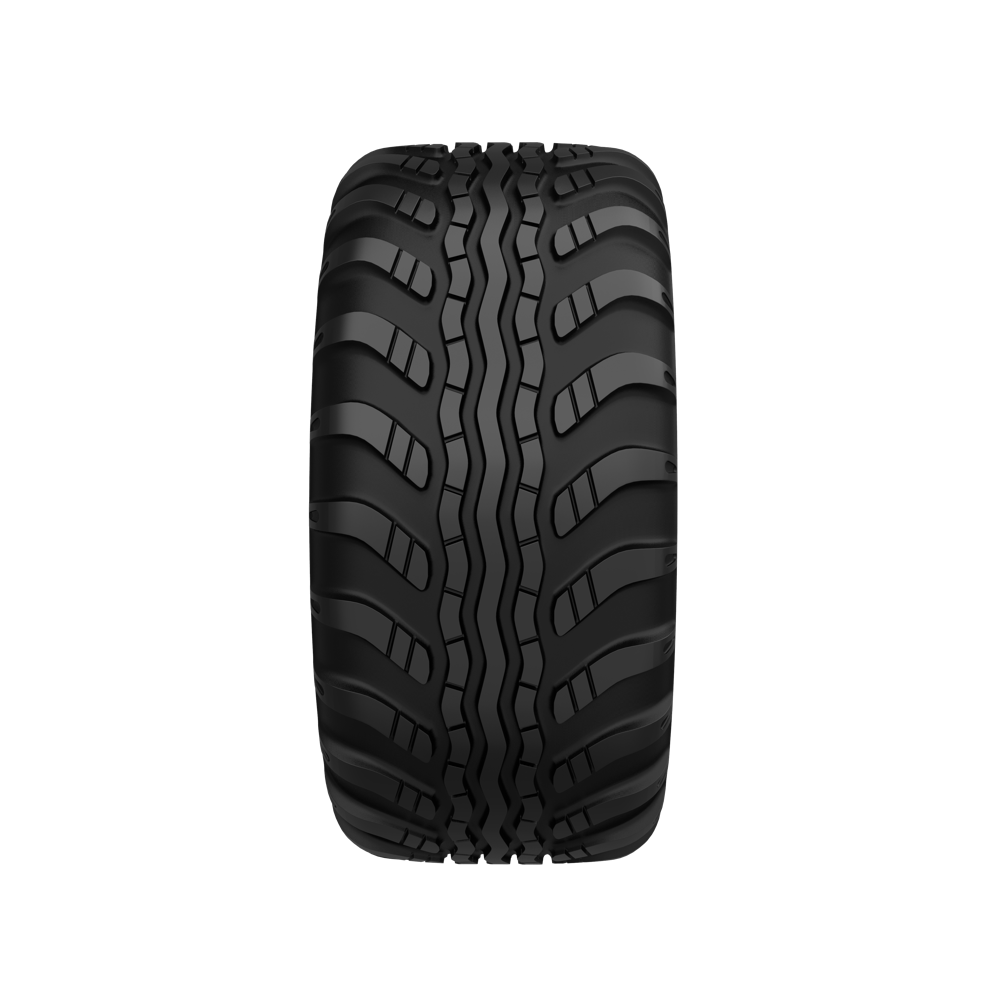

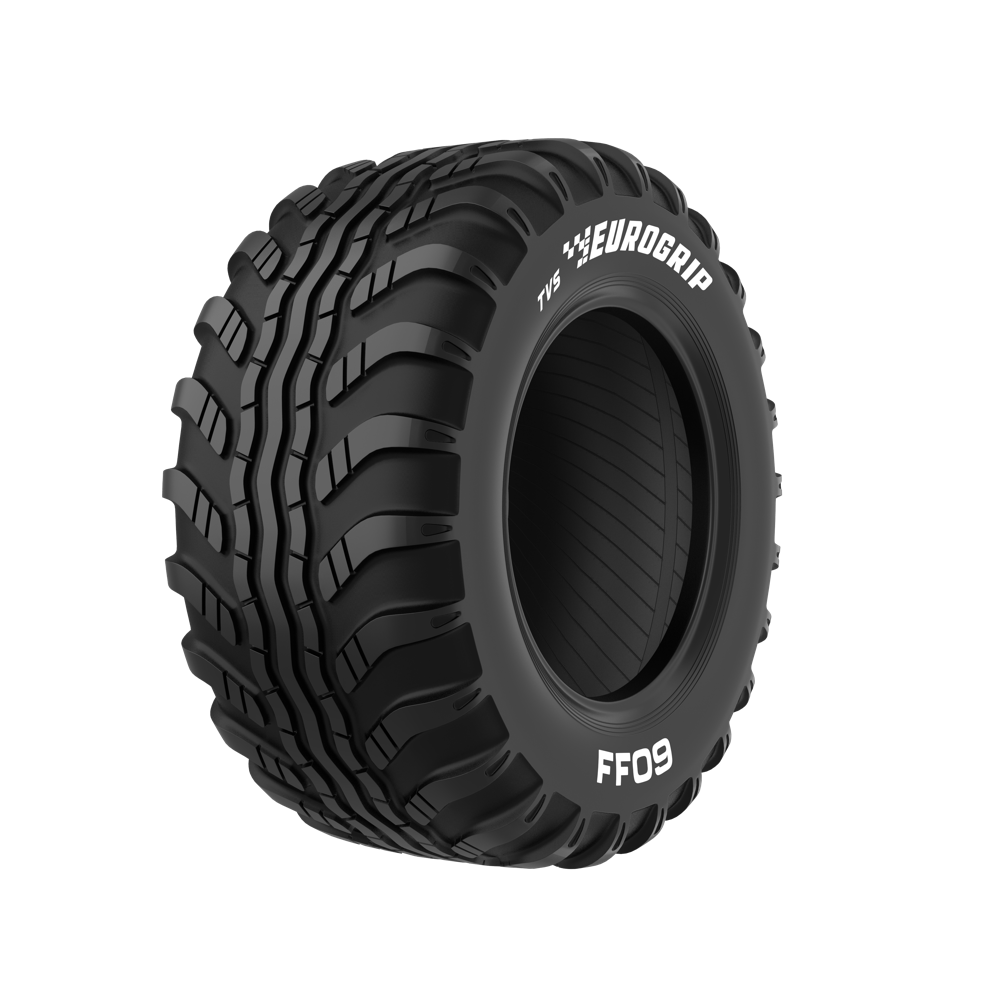

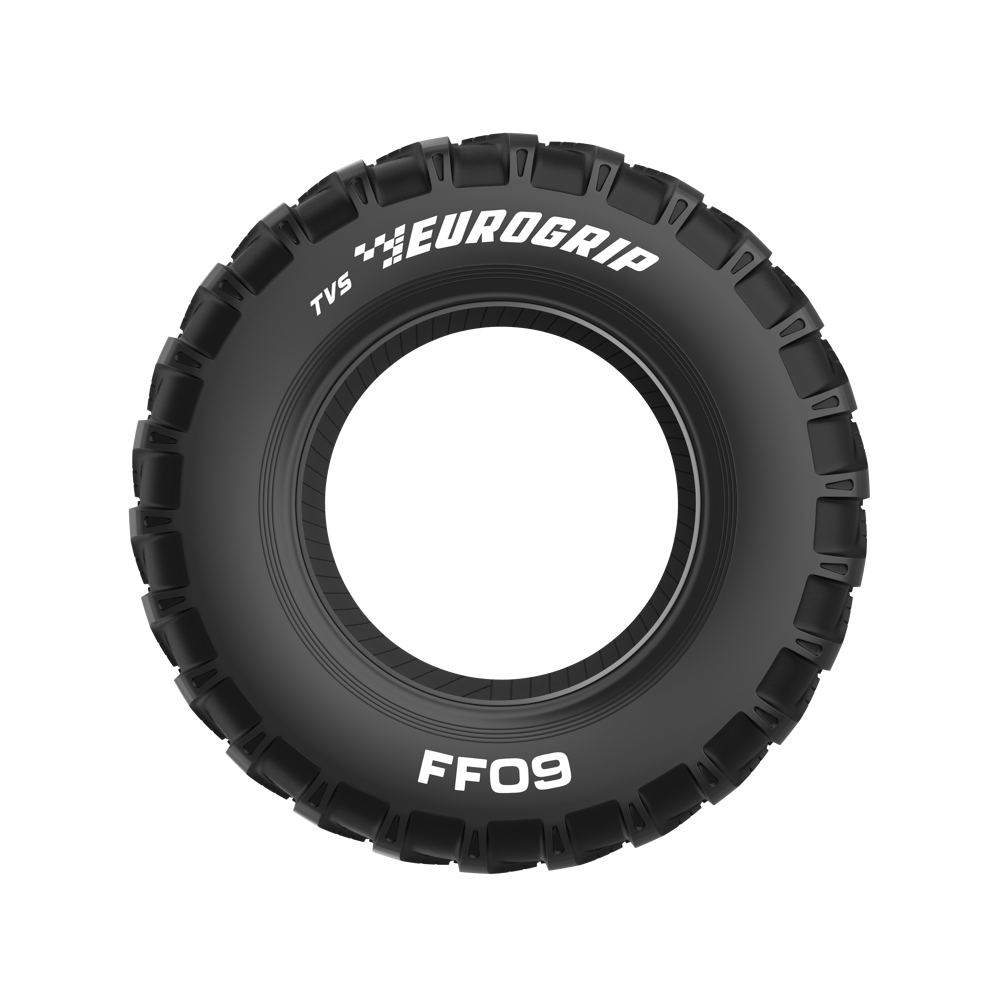

The FF09 is a modern bias implement tyre for farm machinery. Its zig-zag rib and shoulder lugs provide excellent balance between directional stability and off-road grip. Ideal gap between the lugs provides good self-cleaning and maintain directional stability on wet / soft underfoot conditions. The shoulder lugs provide good traction in drive wheel applications. It is ideal for towed implements such as balers, agricultural trailers, wagons, used on sensitive surfaces such as grassland and turf.
 IMP
 A8
 Bias

Suitable for

Round Baler

Square Baler

Trailer

Know more about this product

Technical Data
TYRE SIZEREC. RIM (inch)ALT. RIM (inch)UNLOADED DIMENSIONS (mm) TYPEPLY RATINGLI & SS
SWODSLRRC
380/55-1713 - 3938333702482TL10134A8 | 122A8
380/55-1713 - 3938333702482TL12138A8 | 125A8
380/55-1713 - 3938333702482TL14141A8 | 128A8
480/45-1716 - 4908613842624TL10 140A8 | 127A8
480/45-1716 - 4908613842624TL12 143A8 | 131A8
480/45-1716 - 4908613842624TL14 146A8 | 134A8
500/50-1716 - 5009504202720TL10140A8 | 128A8
500/50-1716 - 5009504202720TL14149A8 | 137A8
500/50-1716 - 5009504202720TL18154A8 | 141A8

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19
400 980 440 2886 14 128 A8
16 132 A9
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)
Alt. RIM
(inch)
Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference
