Backhoe Loader

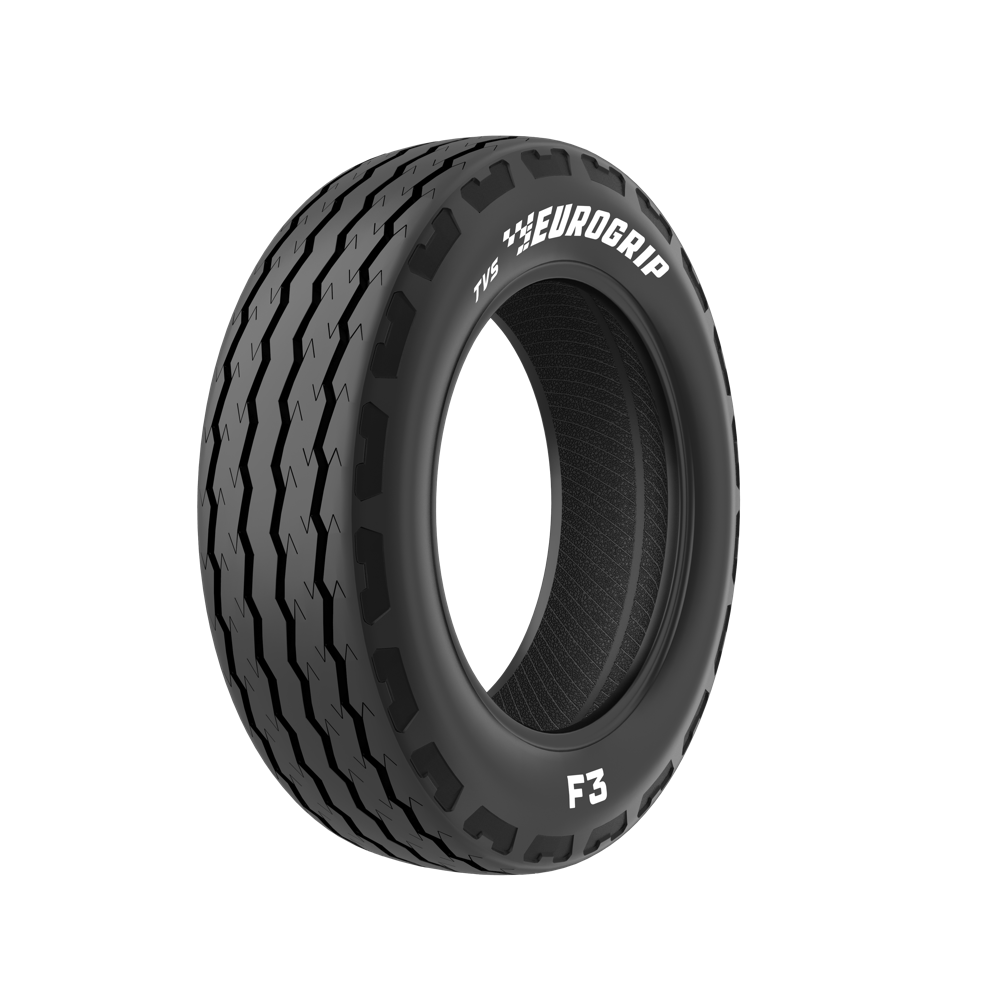

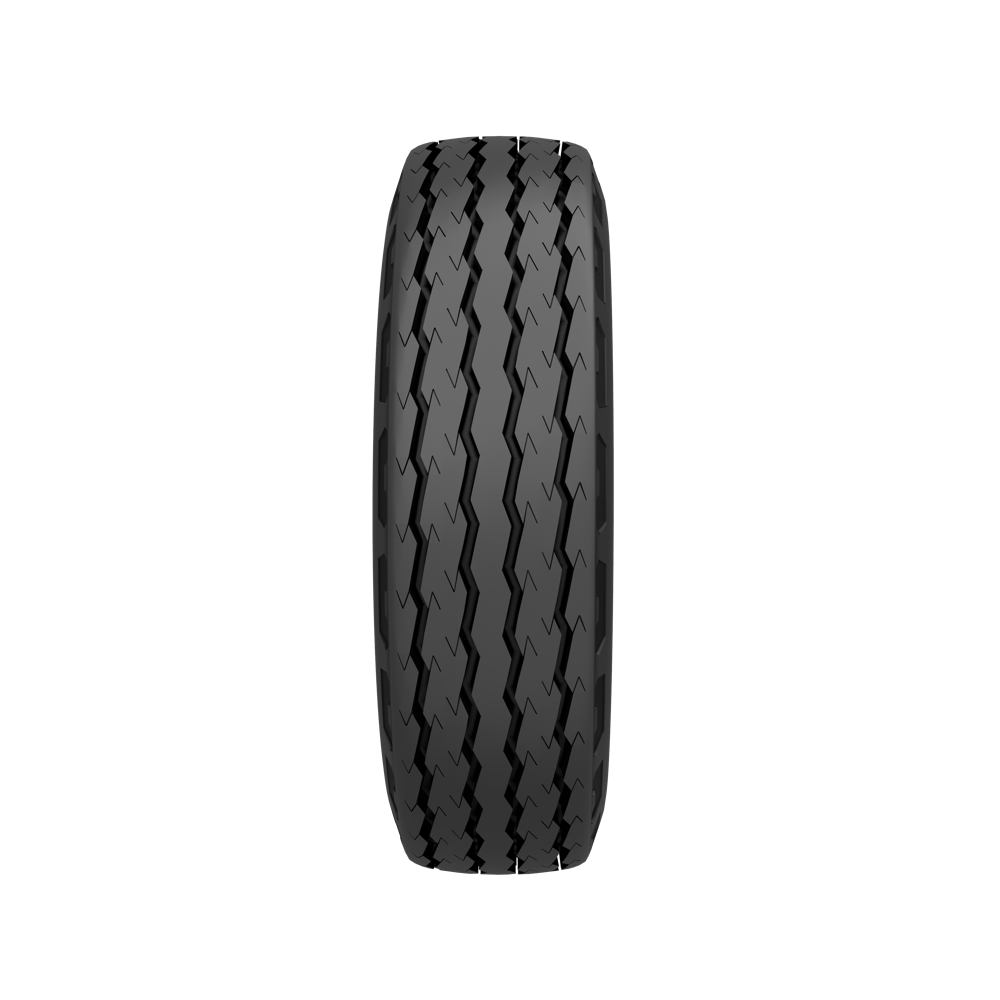

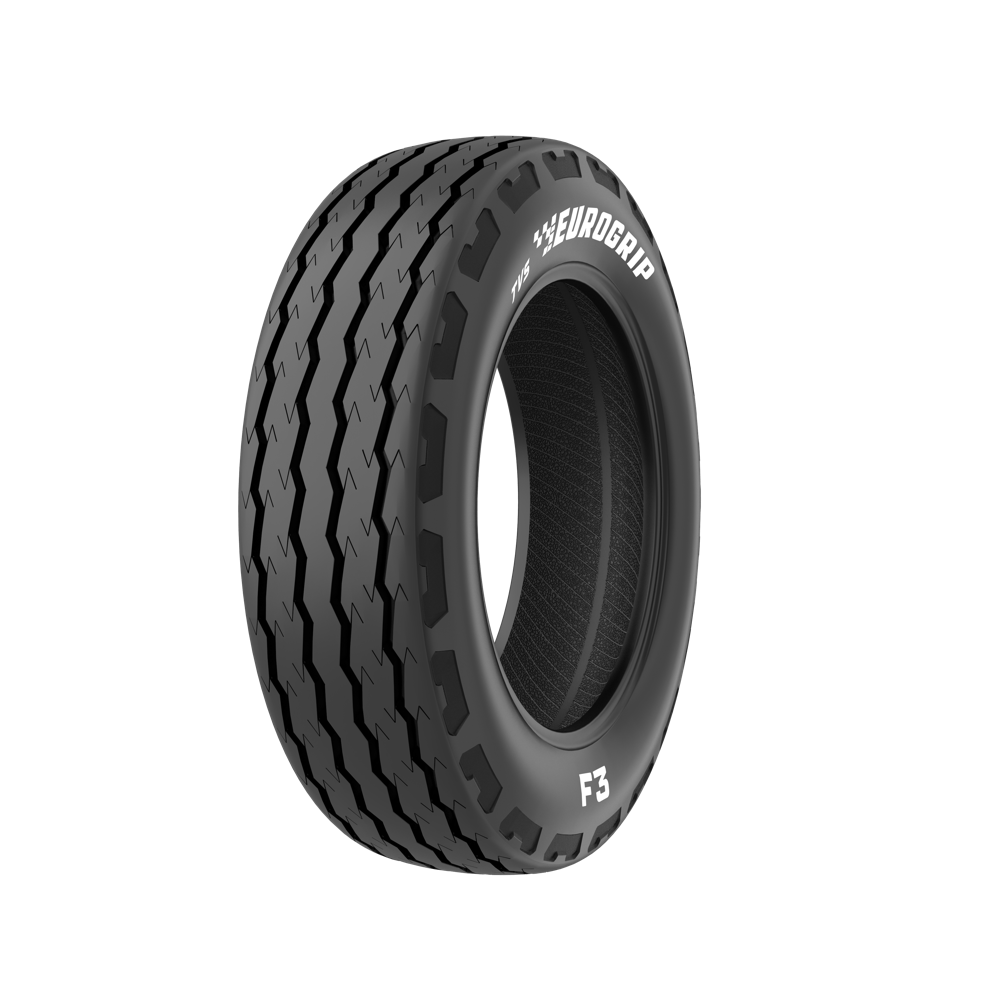

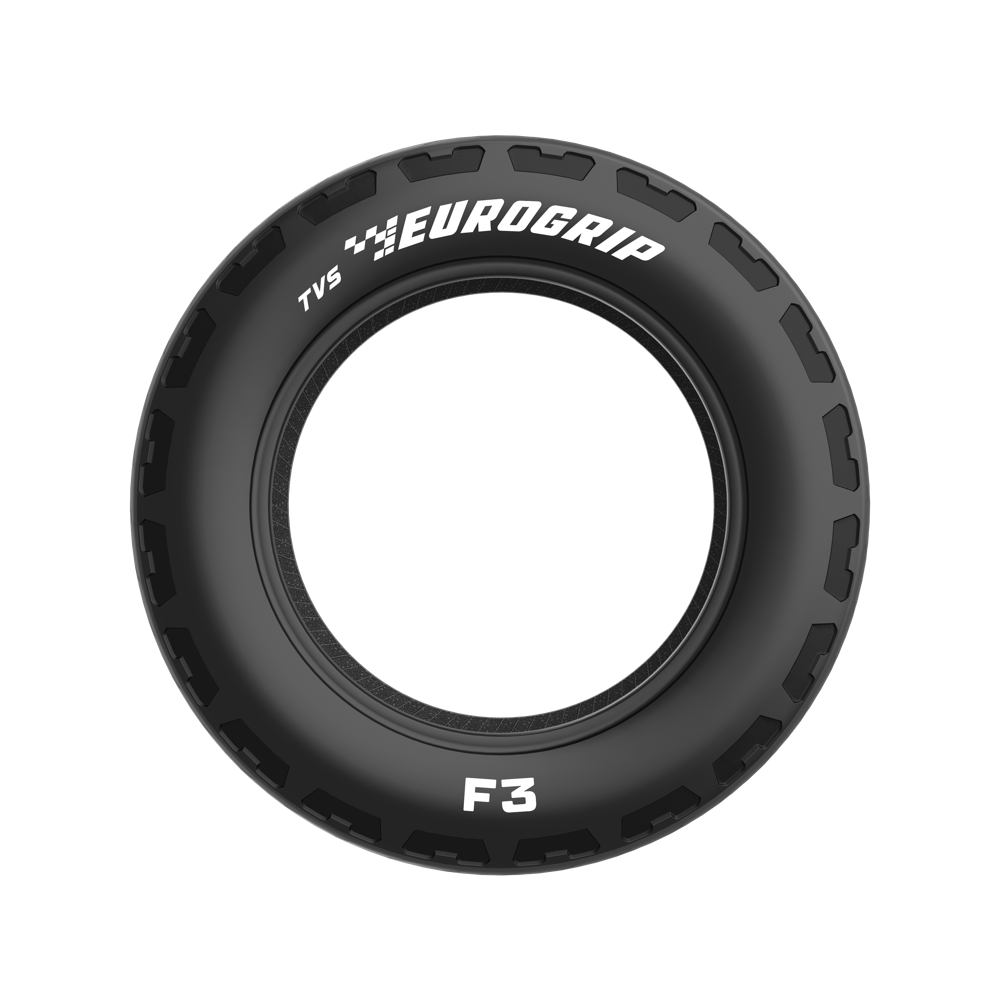

F 3
The F 3 ribbed tyre is designed for use in two-wheel drive backhoe loaders as a steering wheel. Its low rolling resistance and good directional stability makes it ideal for use on both the road and in off-road.
F-3
A8
Bias
Suitable for
Backhoe Loader
Industrial Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 11L-15SL | 8 | - | 293 | 830 | 376 | 0 | TL | 10 | 115A6 | 110A8 | |
| 11L-16SL | 8 | - | 282 | 830 | 377 | 0 | TL | 10 | 116A6 | 112A8 | |
| 11L-16SL | 8 | - | 282 | 830 | 377 | 0 | TL | 12 | 120A6 | 116A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
