Backhoe Loader

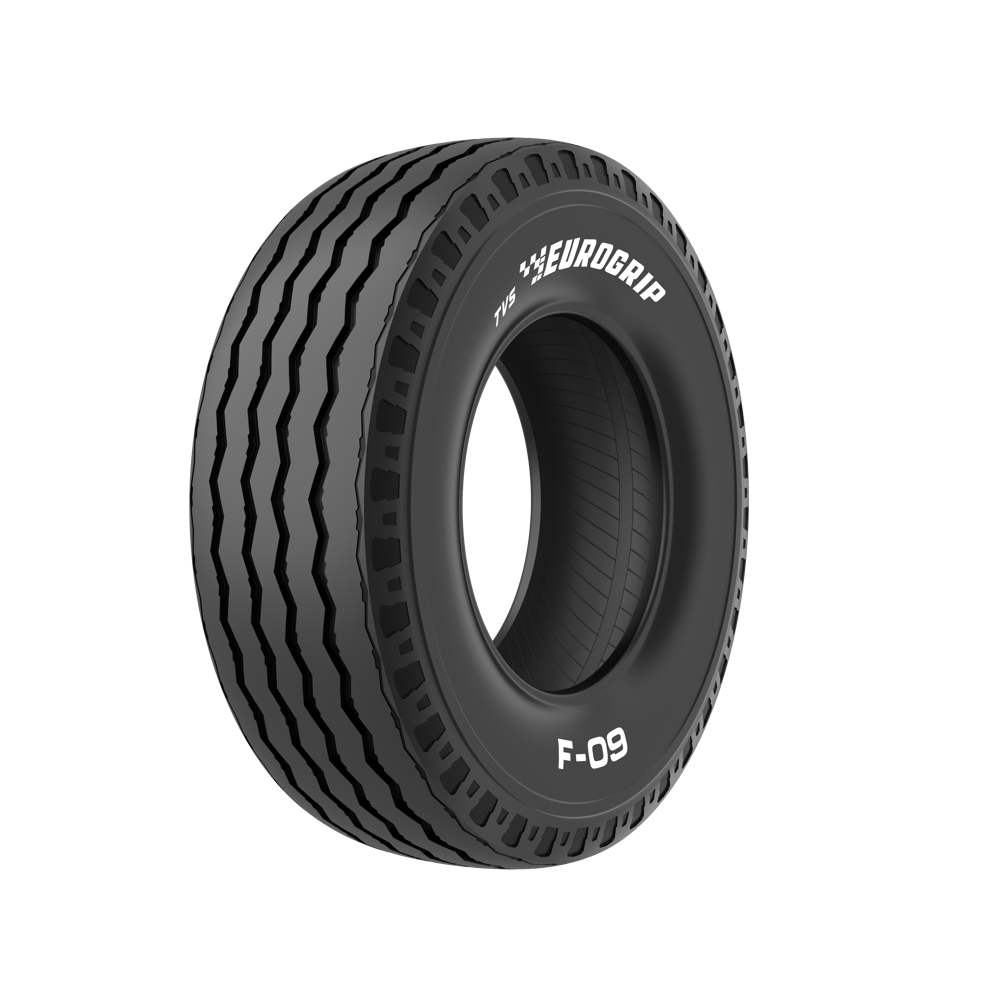

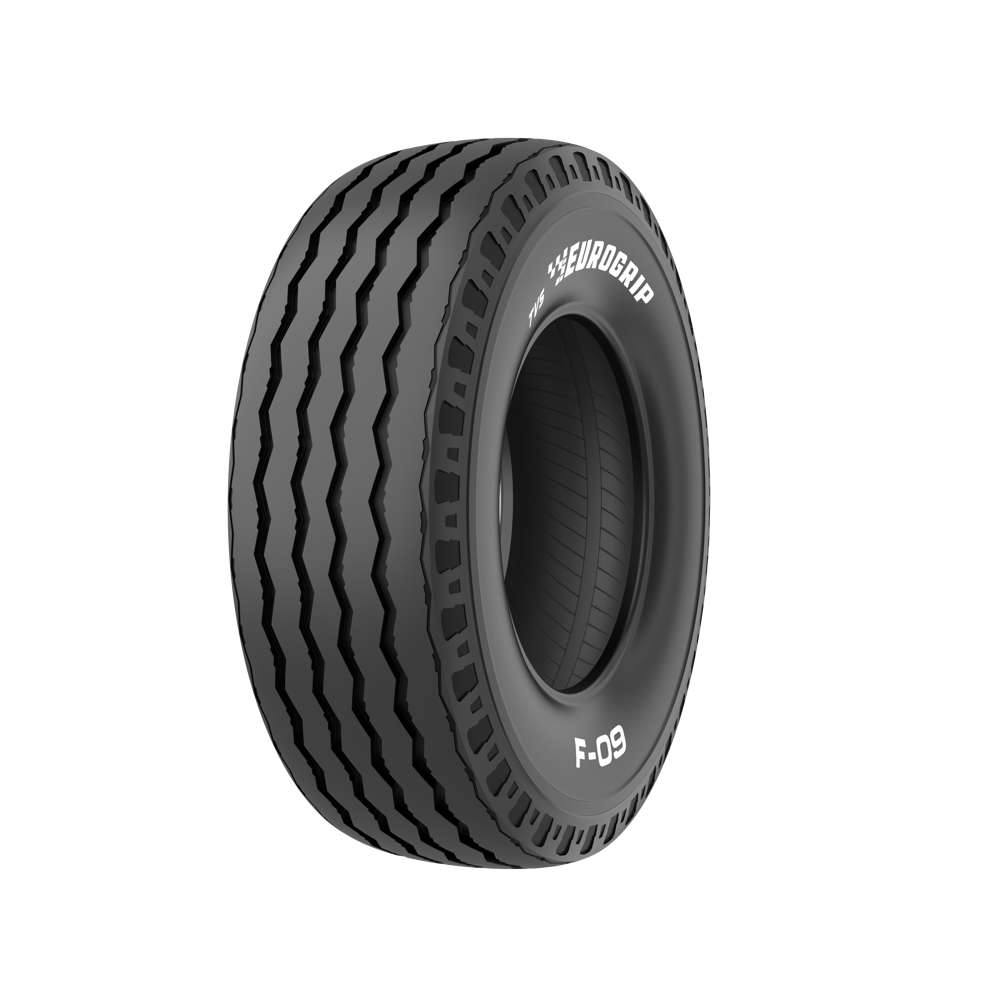

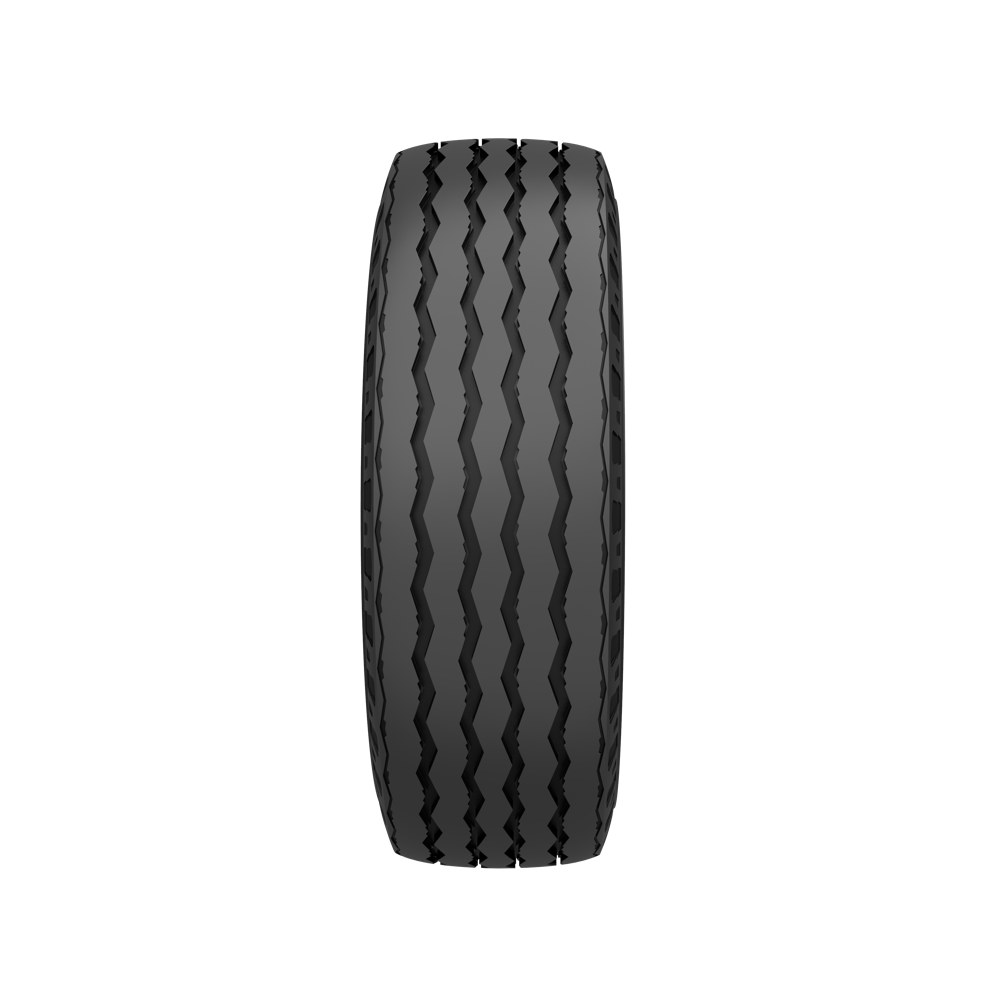

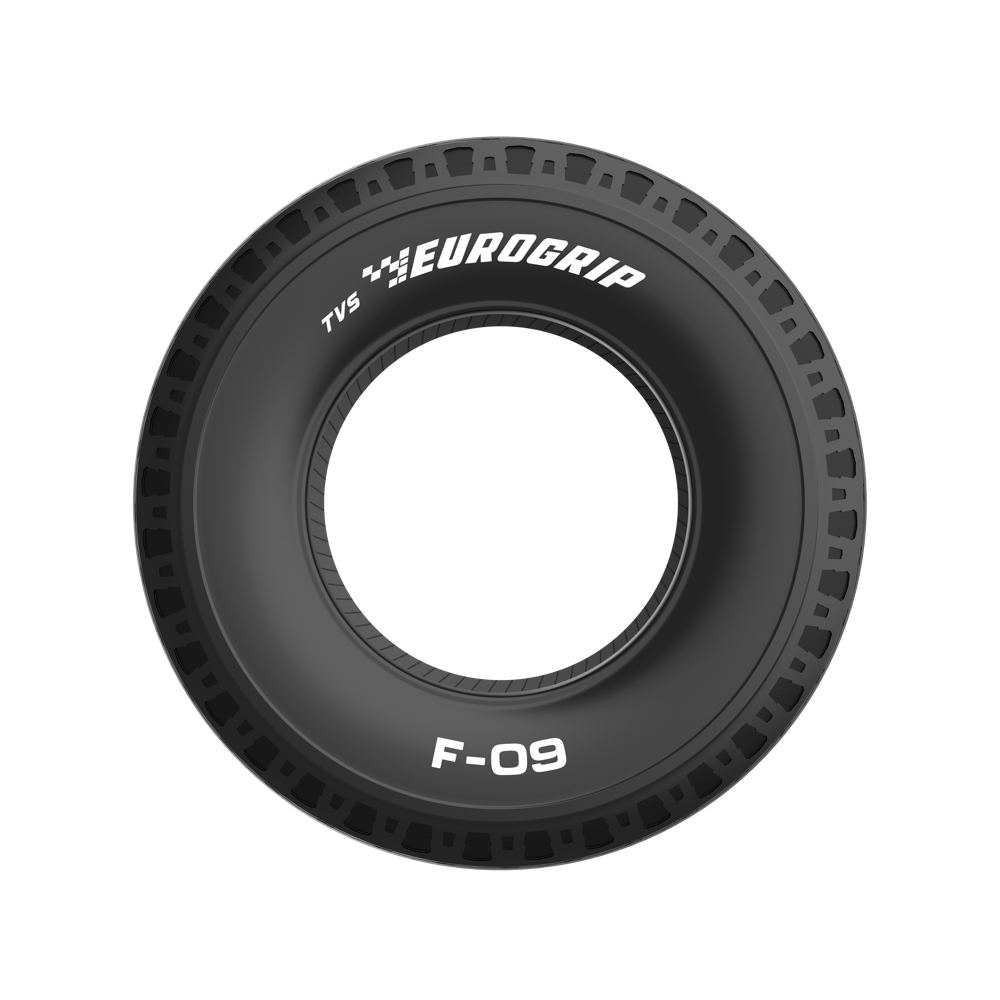

F 09
The F 09 is designed for use in the a front steering wheel of two wheel drive backhoe loaders. The design provides low rolling resistance. It is an ideal choice for both on and off road use in haulage and soil tillage.
F-3
A8
Bias
Suitable for
Backhoe Loader
Industrial Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 11L-15 | 8 | - | 277 | 810 | 372 | 0 | TL | 10 | 115A6 | 110A8 | |
| 11L-16 | 8 | - | 267 | 805 | 374 | 0 | TL | 10 | 116A6 | 112A8 | |
| 11L-16 | 8 | - | 267 | 805 | 374 | 0 | TL | 12 | 120A6 | 116A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
