Surface Mining

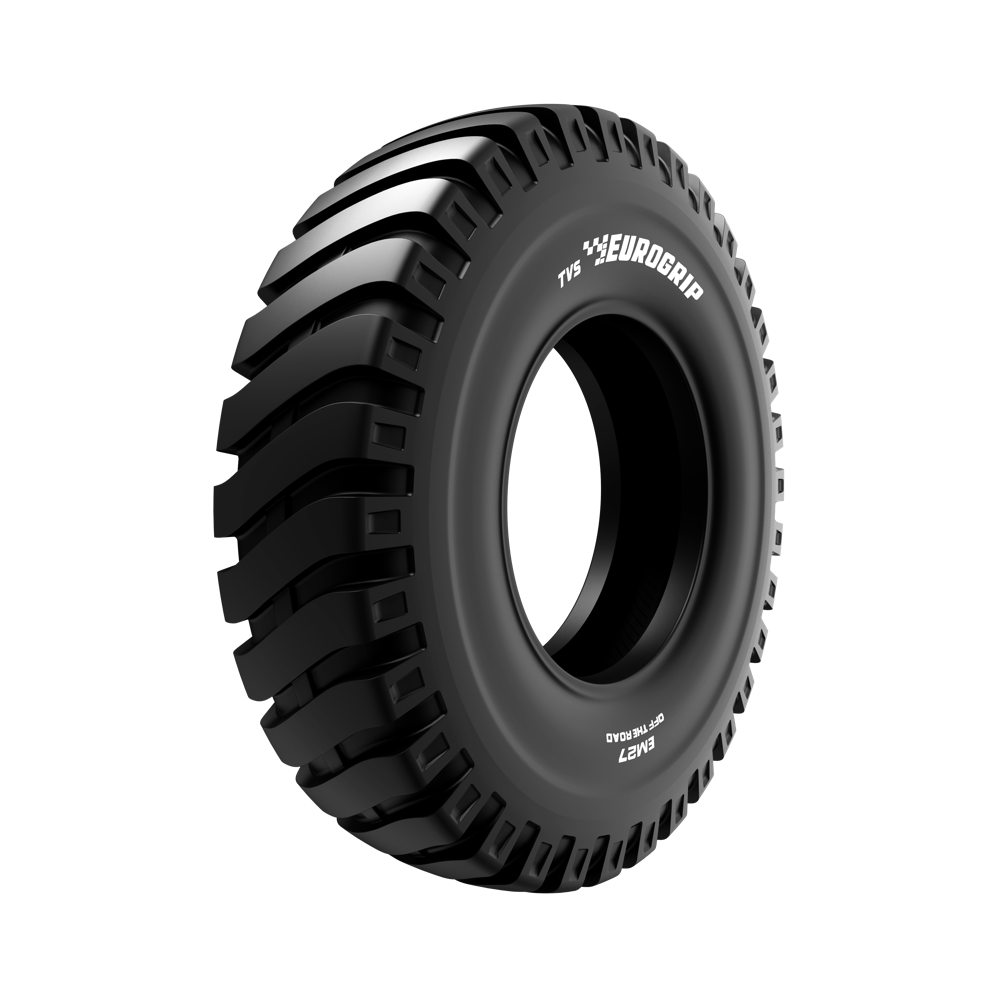

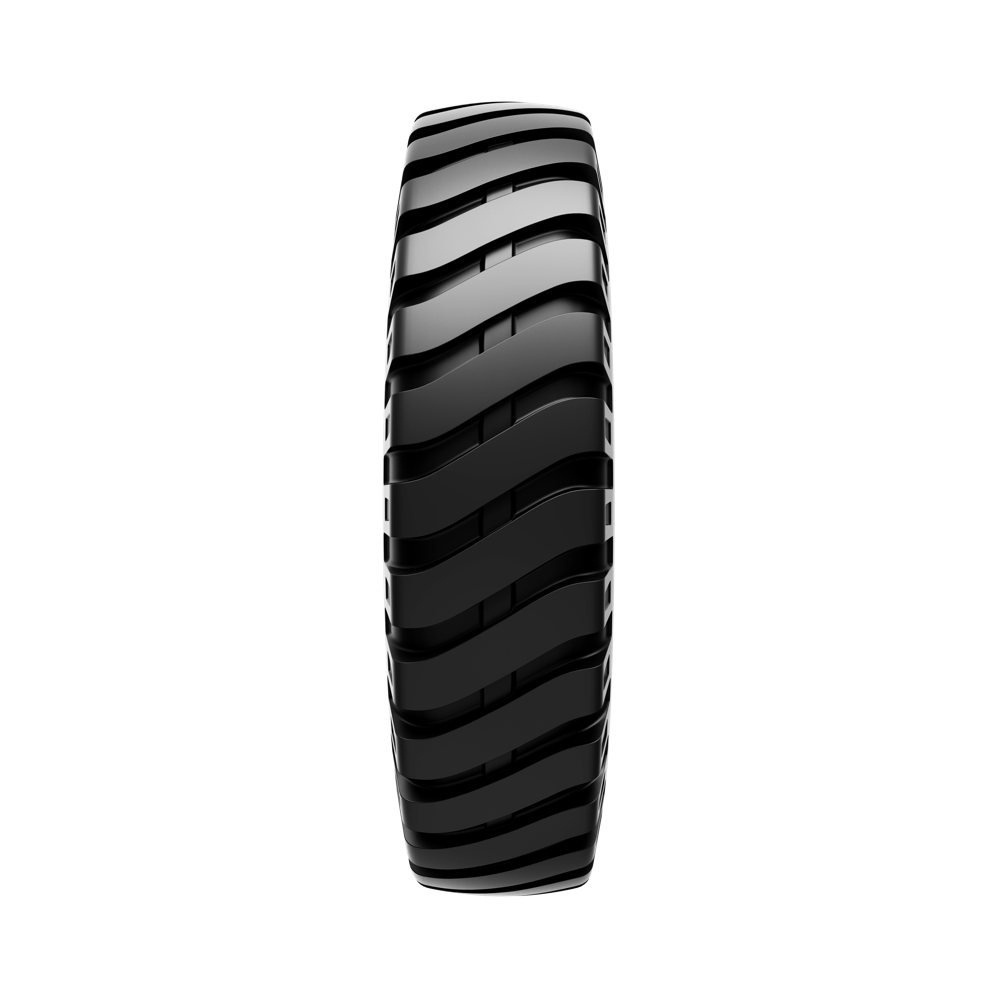

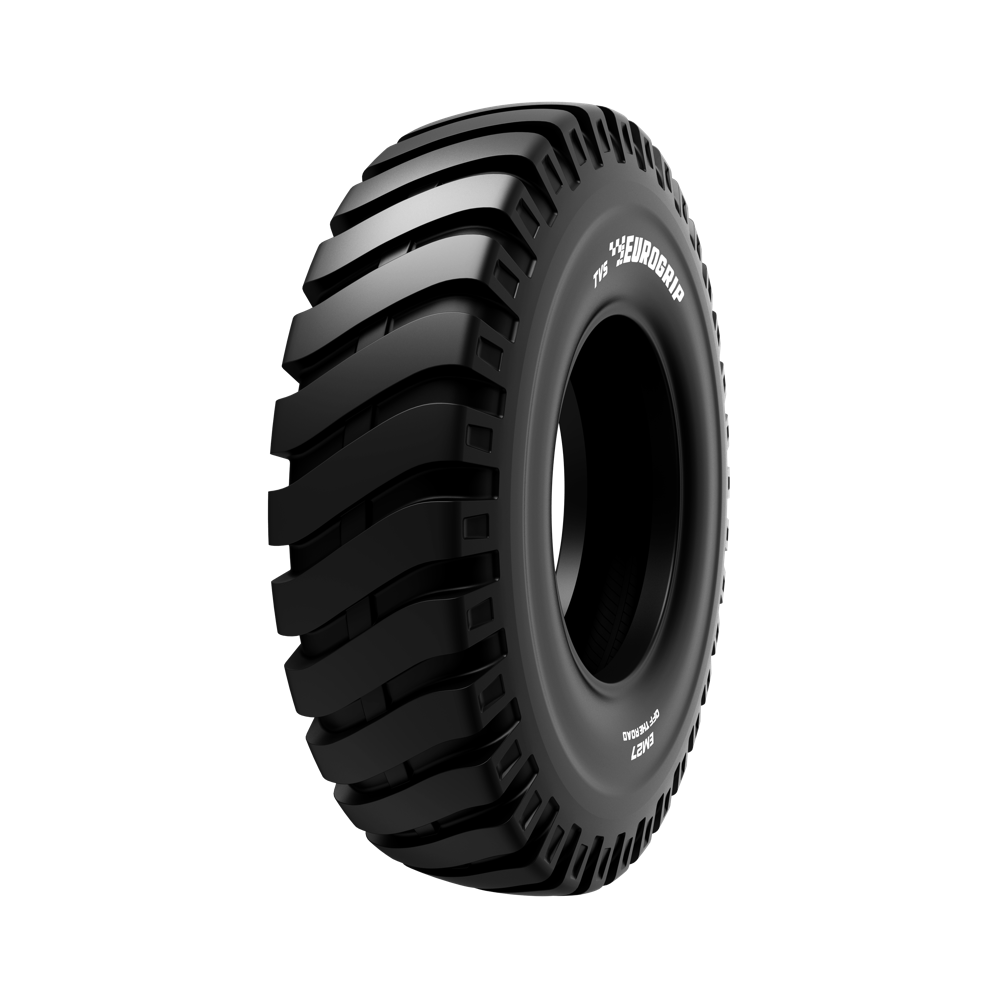

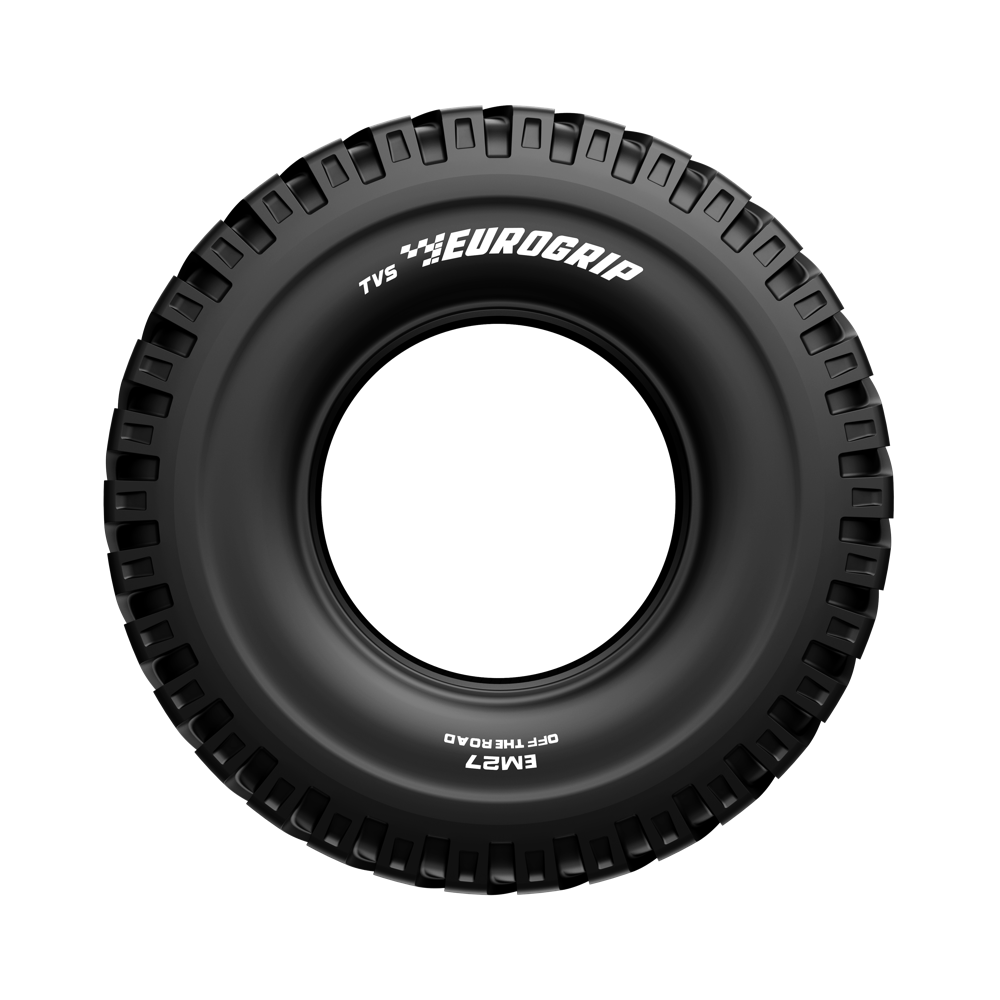

EM 27 E-3/L-3
The EM 27 E-3/L-3 tyre is designed for wheel loaders. Its wide lugs provide more ground contact area and excellent traction. The tyre is built with heat resistant compound. It is built to withstand cuts and chips while working on tough terrain. The strong nylon casing provides the tyre with toughness to carry heavy loads and minimise chances of punctures.
E-3/L-3
A2/B
Bias
Suitable for
Wheel Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 14.00-25 | 10 | - | 400 | 1370 | 631 | 4056 | TL | 20 | 182A2 | 161B | |
| 14.00-25 | 10 | - | 400 | 1370 | 631 | 4056 | TT/TL | 24 | 186A2 | 165B | |
| 14.00-25 | 10 | - | 400 | 1370 | 631 | 4056 | TT | 28 | 188A2 | 166B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
