Surface Mining

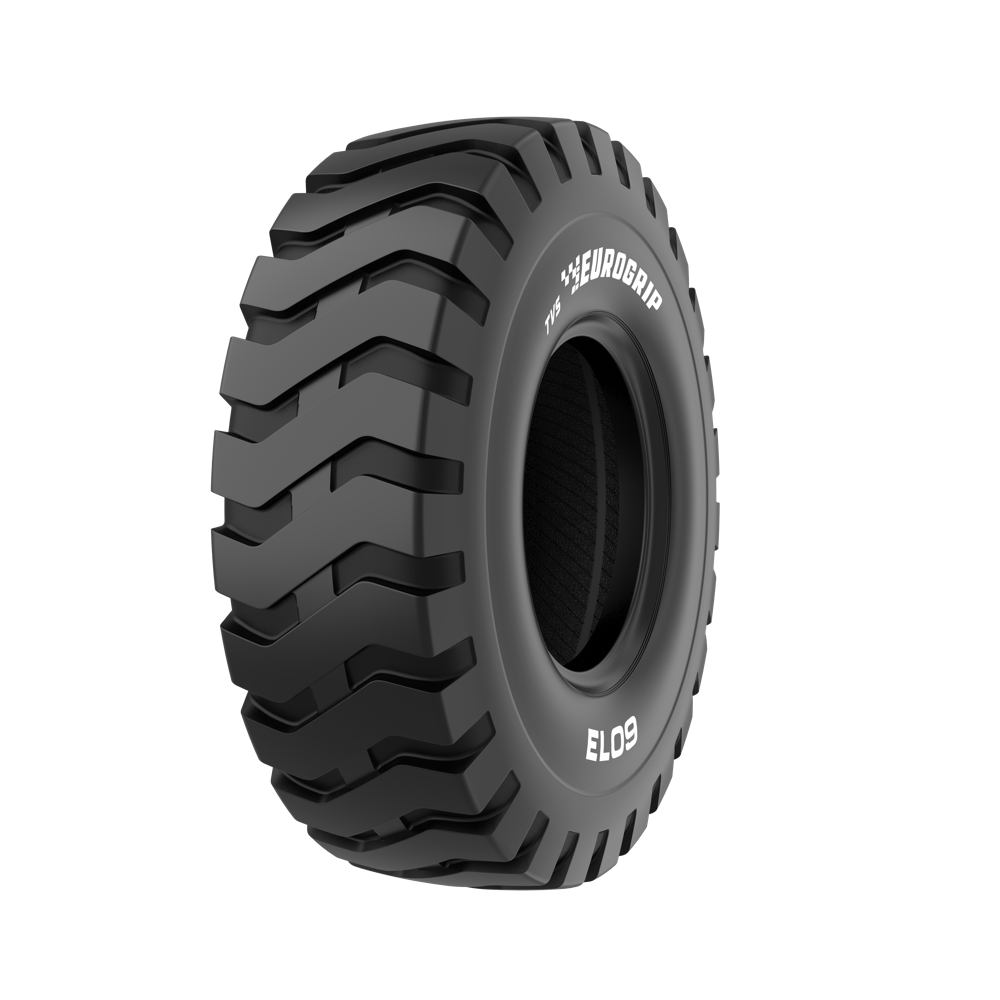

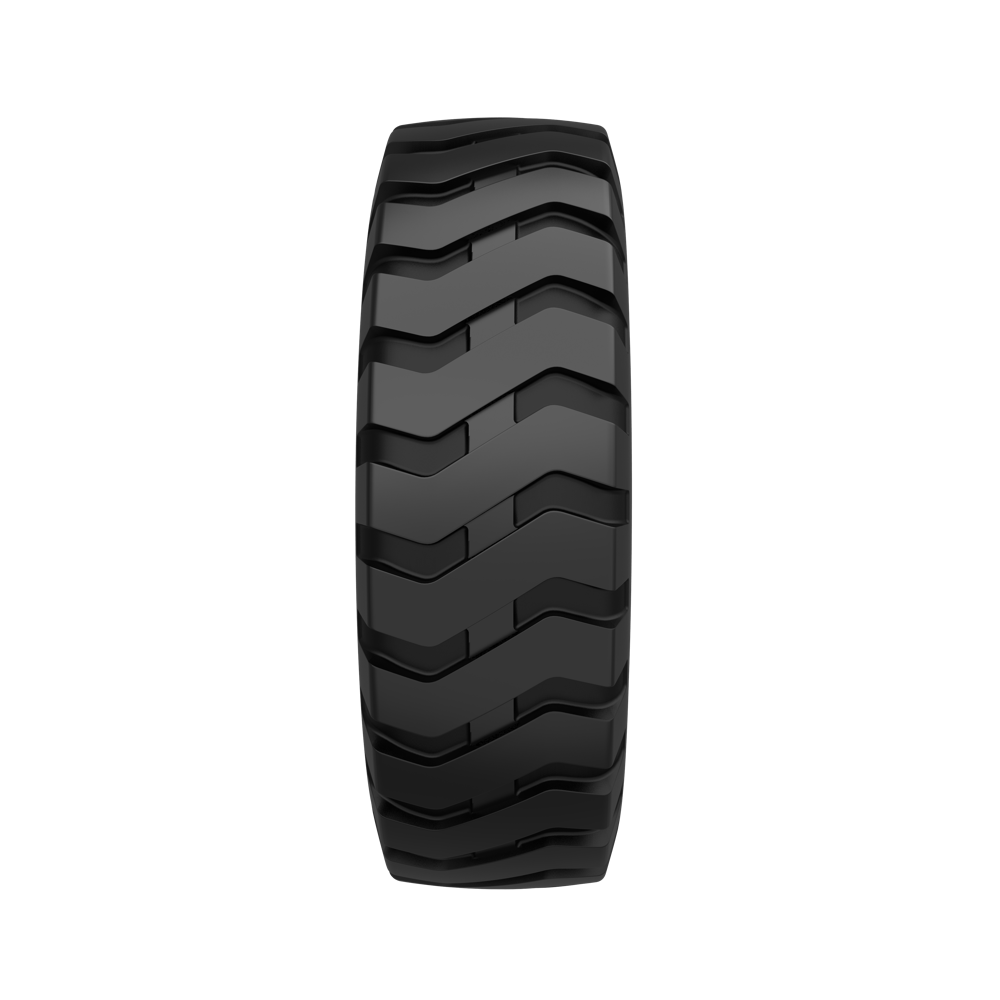

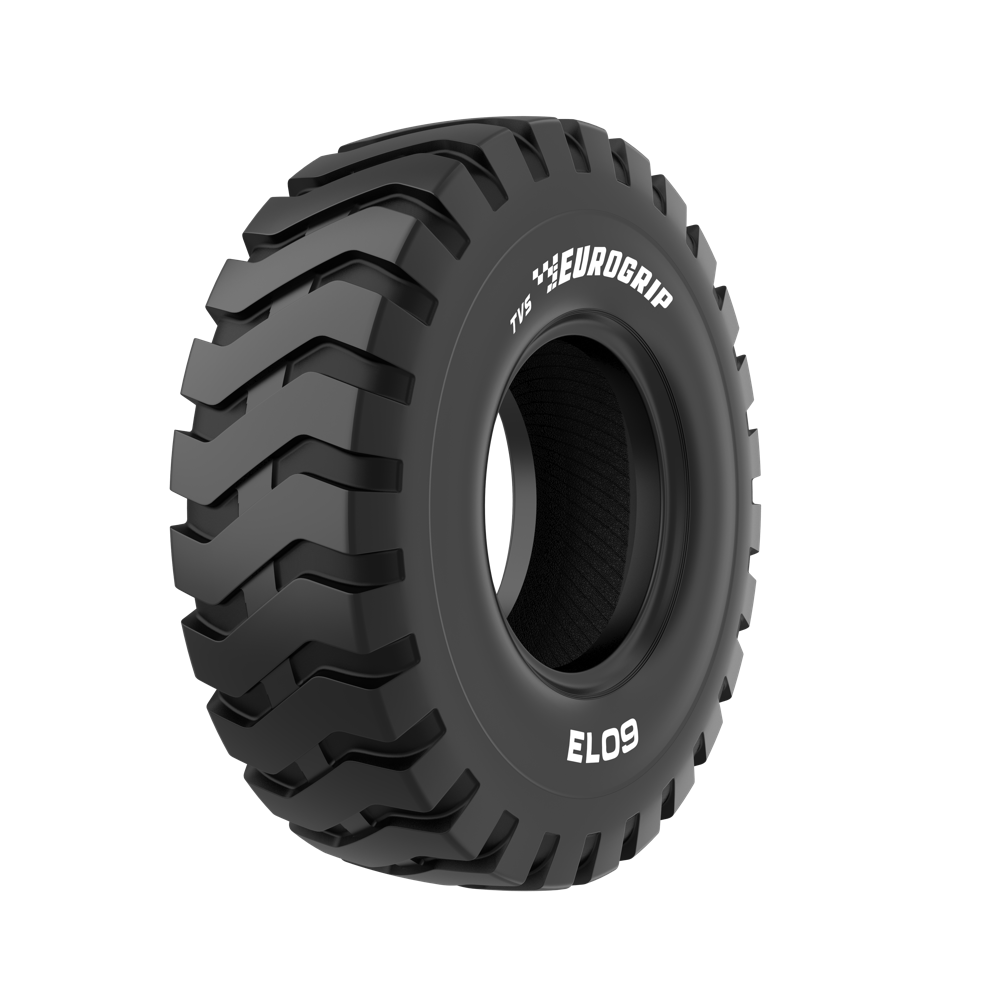

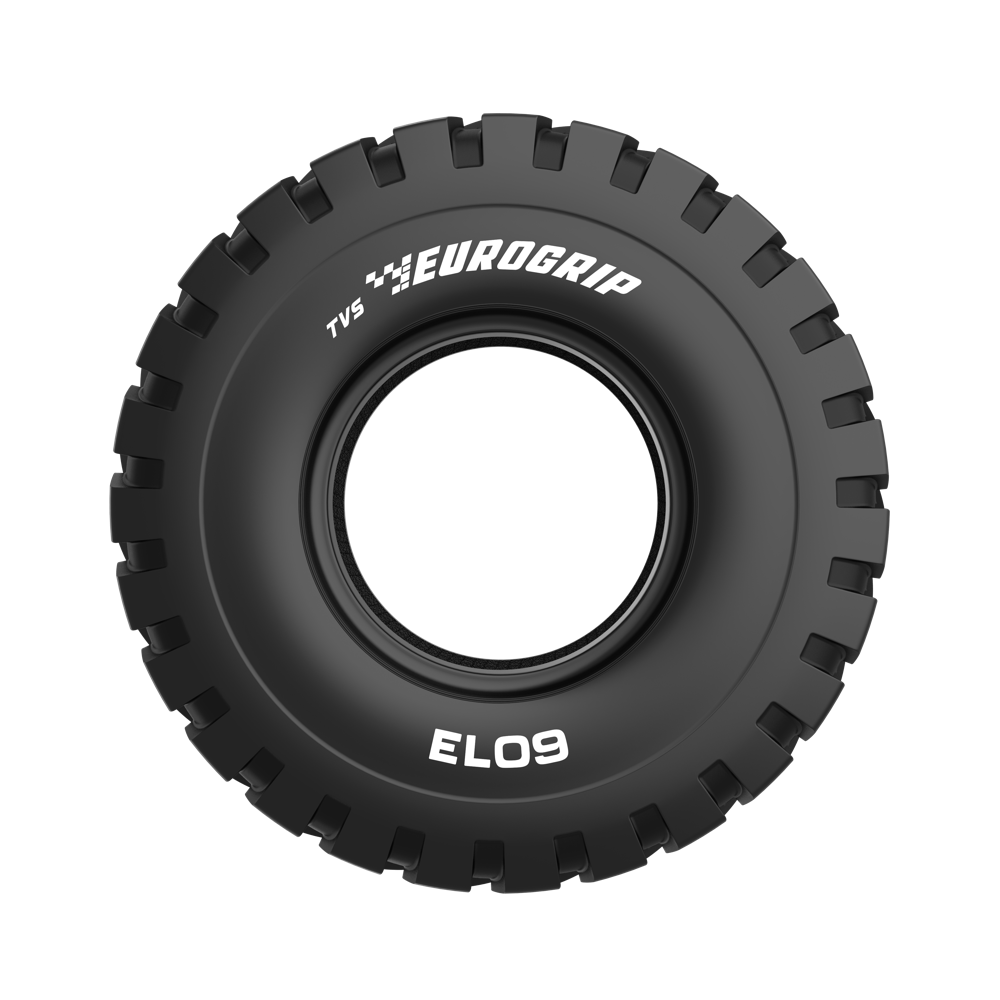

EL 09
The EL 09 E-3/L-3 tyre is built with heat resistant compound and is suitable for all weather conditions. Its special compound and heavy-duty casing reduces and withstands cuts, snags and external impacts. This tyre is suited for wheel loaders and dumpers working on challenging terrain.
E-3/L-3
A2/B
Bias
Suitable for
Wheel Loader
Articulated Dump Truck
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 405/70-20 | 13.00x20 | - | 420 | 1095 | 490 | 3250 | TL | 16 | 169A2 | 152B | |
| 20.5-25 | 17 | - | 565 | 1500 | 689 | 4437 | TL | 16 | 181A2 | 167B | |
| 20.5-25 | 17 | - | 565 | 1500 | 689 | 4437 | TL | 20 | 186A2 | 170B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
