Implement-Rib

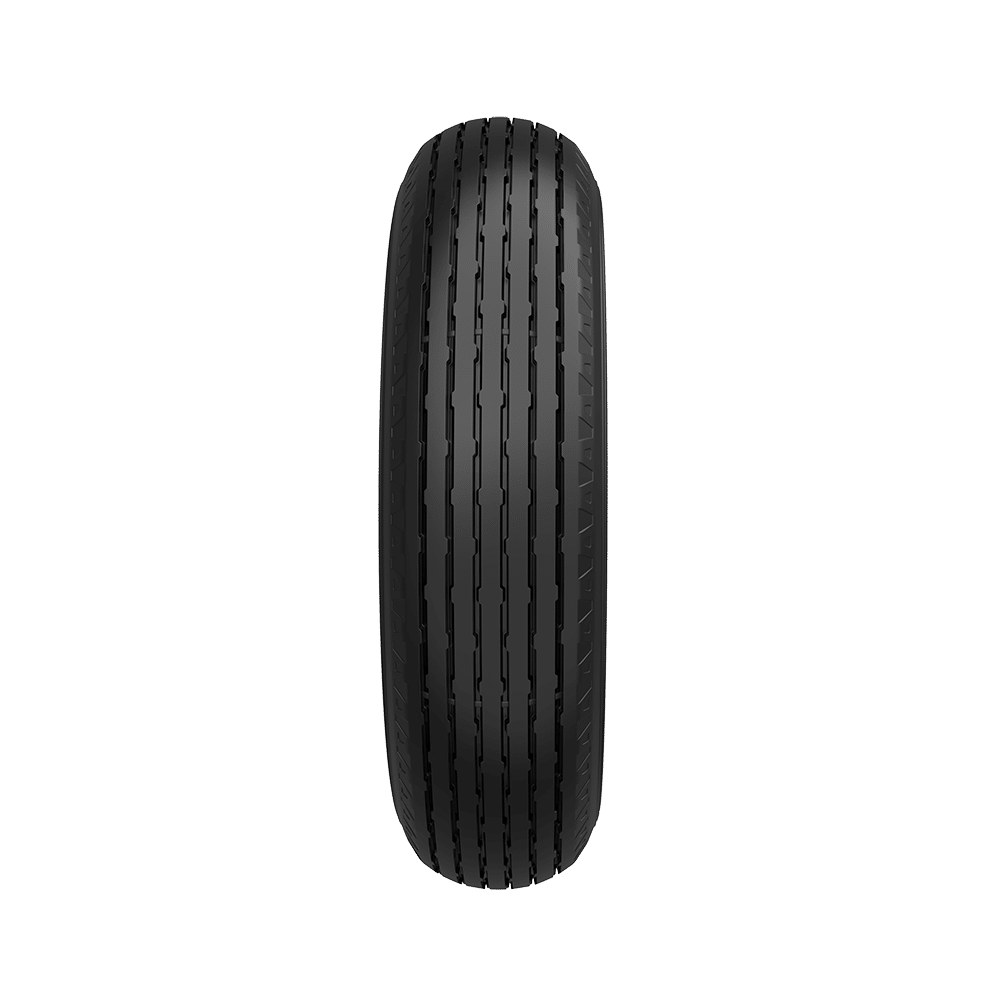

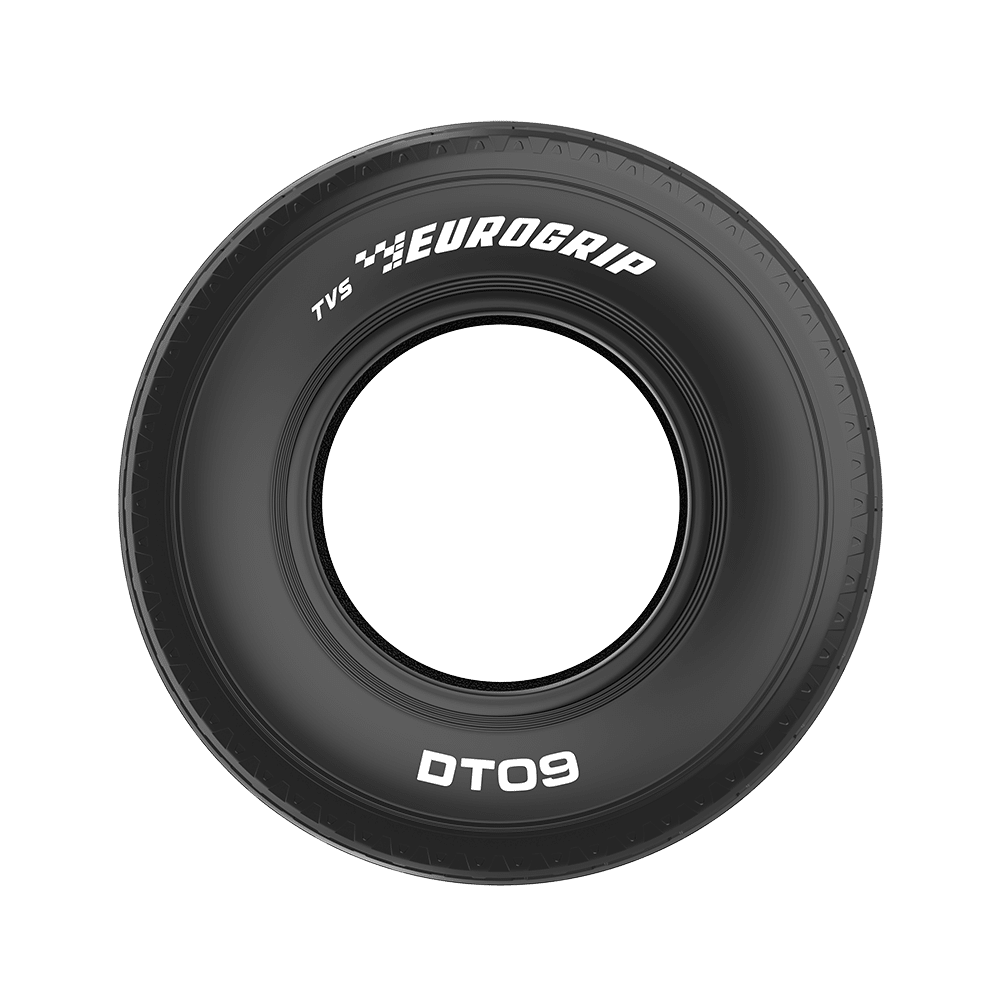

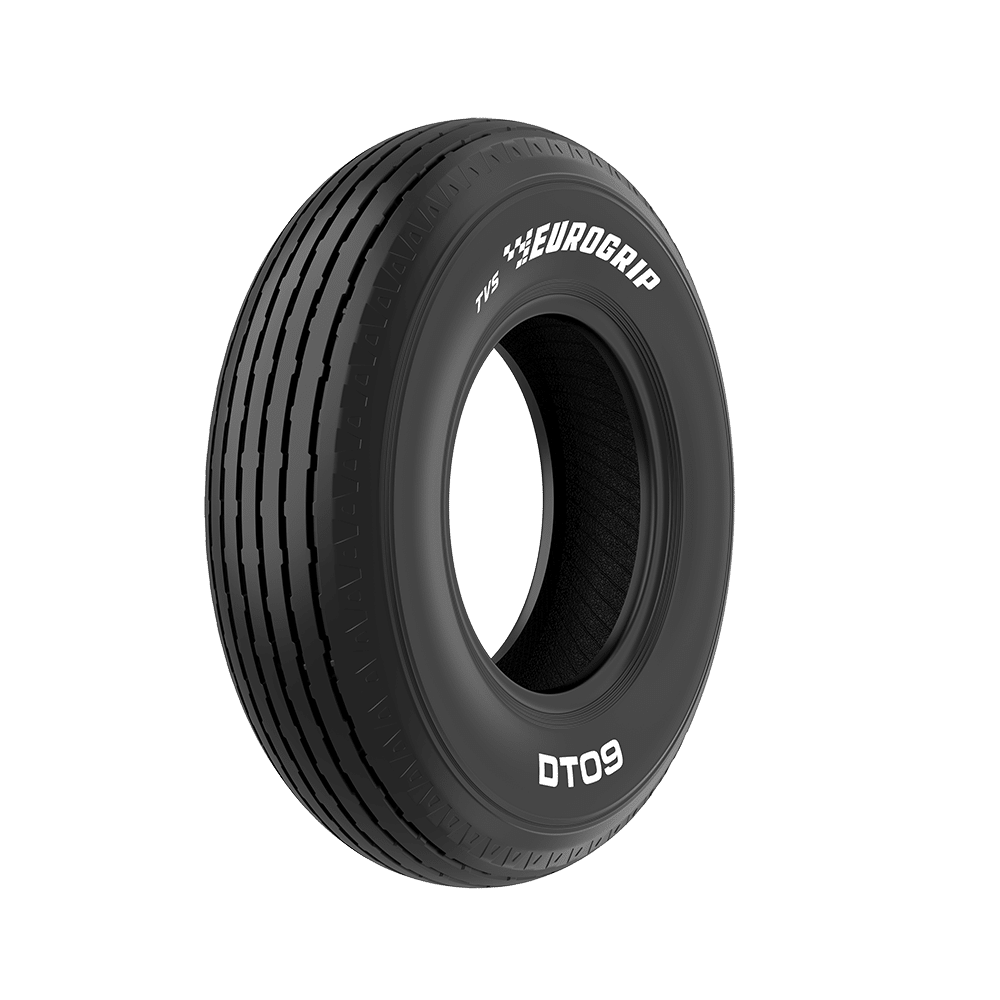

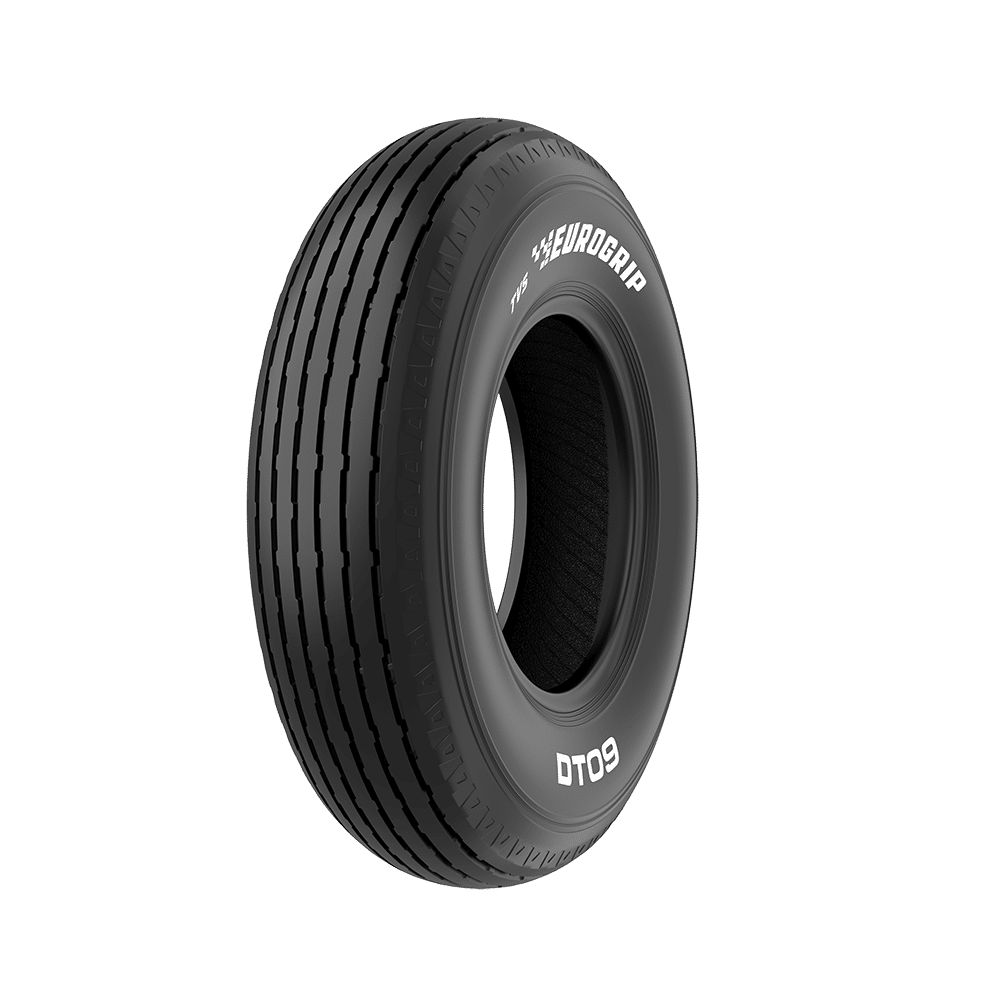

DT 09
DT 09 has unique tread design combining circumferential groove and transverse slots at shoulder. Strong casing offers longer tyre life. its cut protective tread compound and high load carrying capacity enhances productivity. The tyre has superior free rolling characteristics with minimal side slippage.
N/A
A8
Bias
Suitable for
Trailer
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 9.00-16 | 6.50H | - | 282 | 855 | 0 | 0 | TL | 8 | ||
| 9.00-17 | 6.50H | - | 272 | 883 | 0 | 0 | TL | 8 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
