Asphalt Roller
CT 09

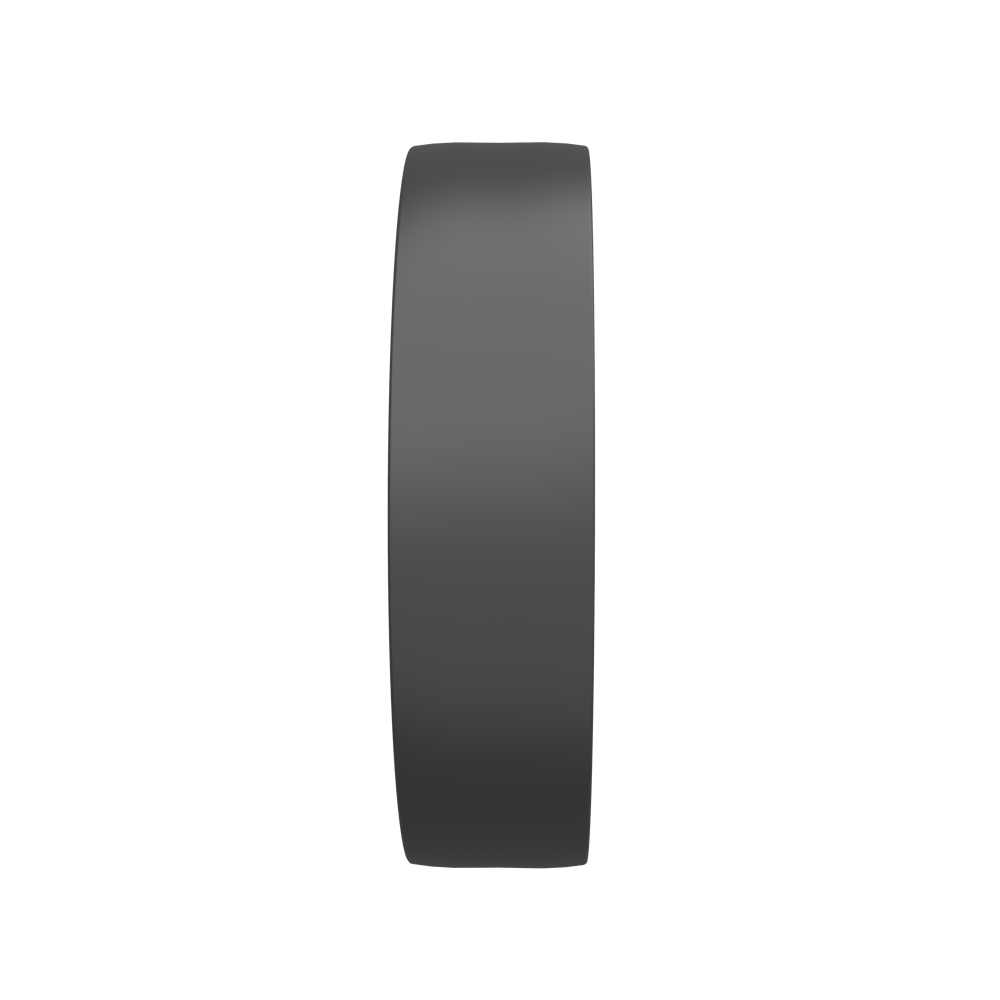

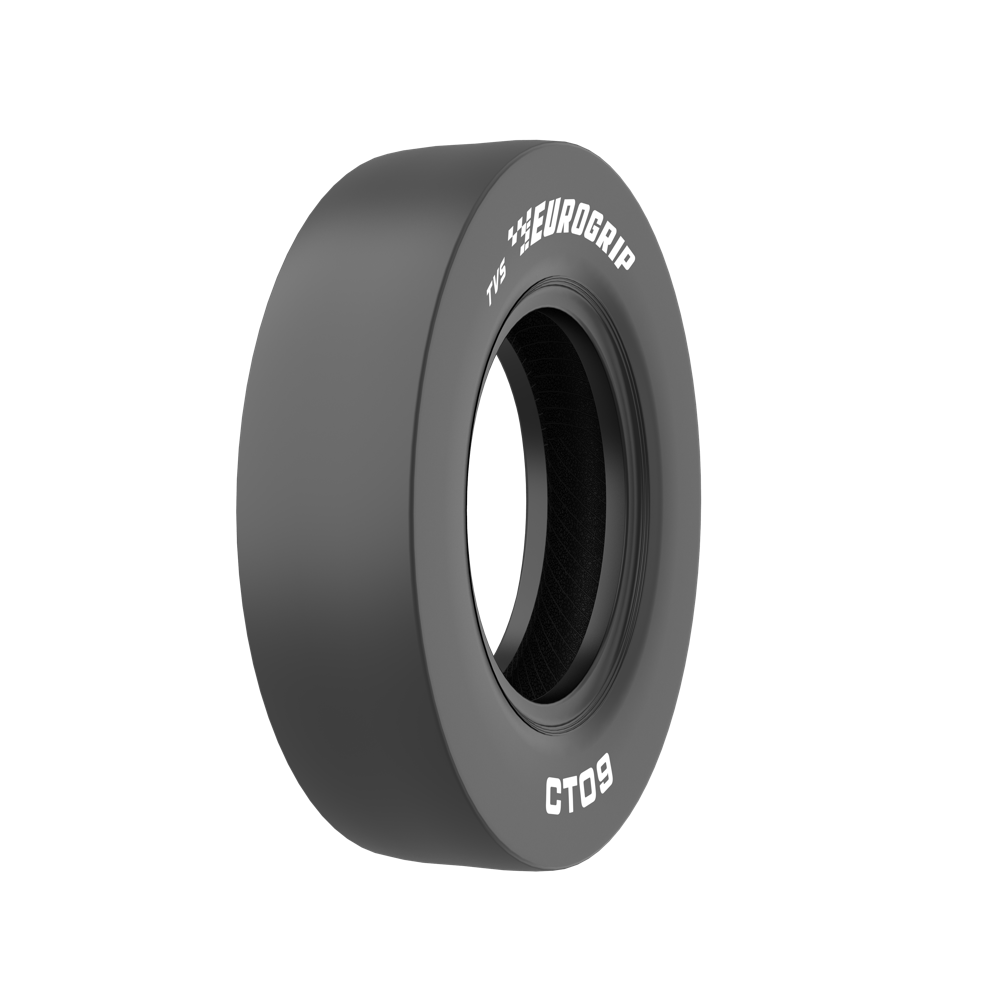

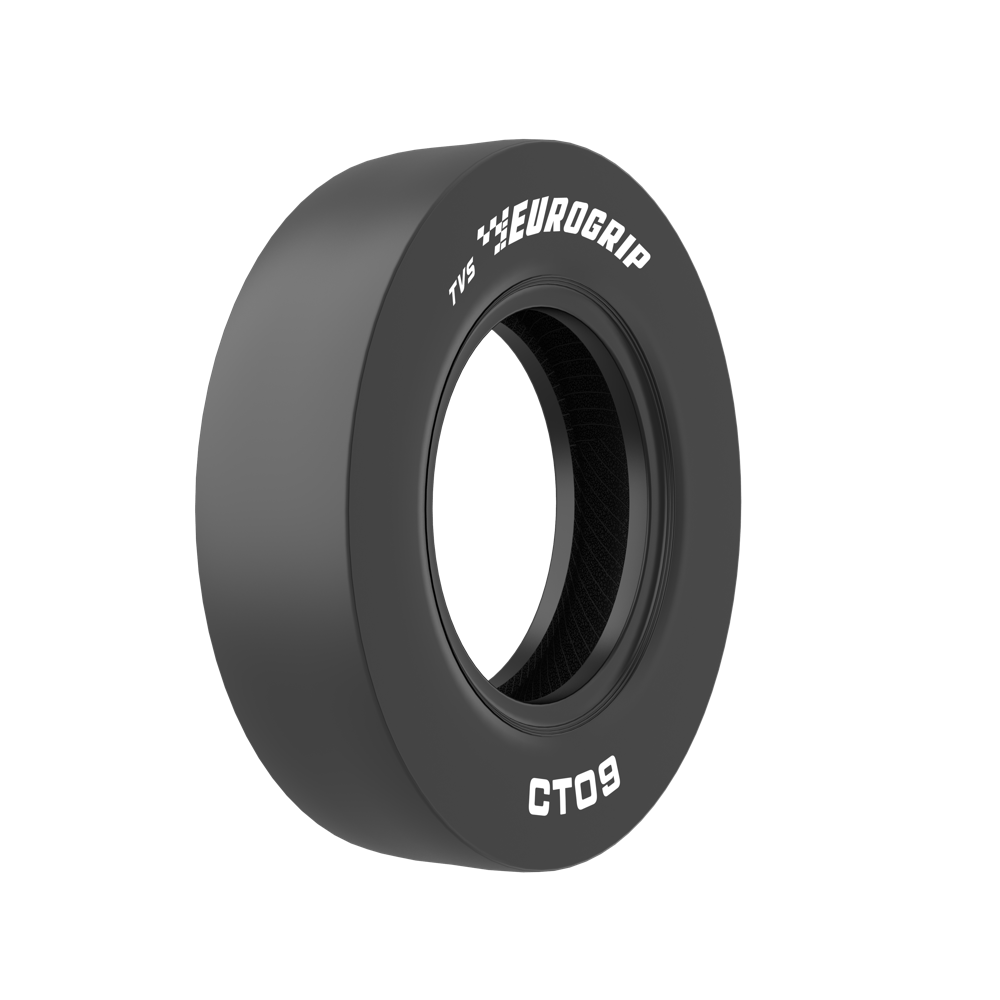

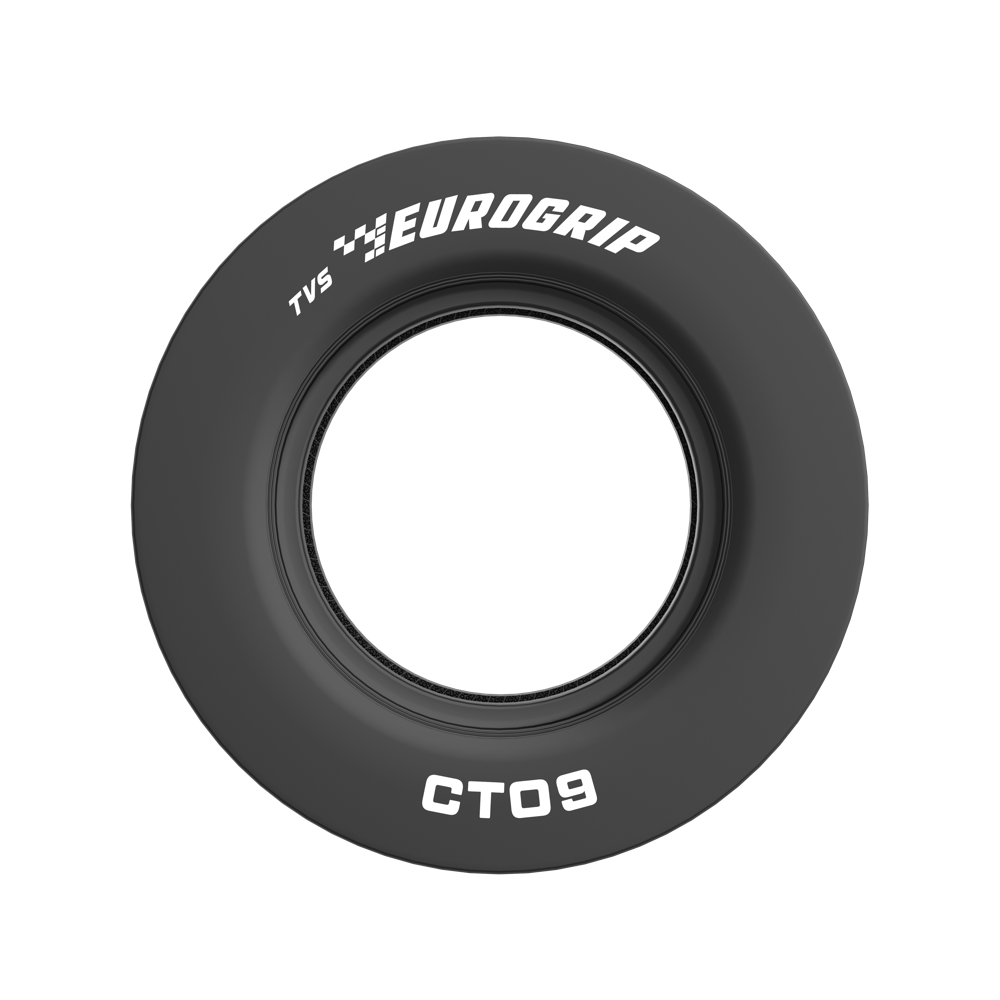

The CT09 a C-1 Asphalt Roller tyre engineered to distribute ground pressure equally across the tyre and give optimum compaction. It’s specially formulated tread compound to withstand high temperatures, offer high stability to the machine and discourage sticking of loose materials on the tyre surface.
C-1
A3
Bias
Suitable for
Asphalt Roller
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 9.00-20 | 7 | 7.5 | 280 | 1015 | 0 | 0 | TT | 16 | 162A2 | |
| 11.00-20 | 8 | - | 305 | 1055 | 0 | 0 | TT | 18 | 169A2 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
