Backhoe Loader
BL 90

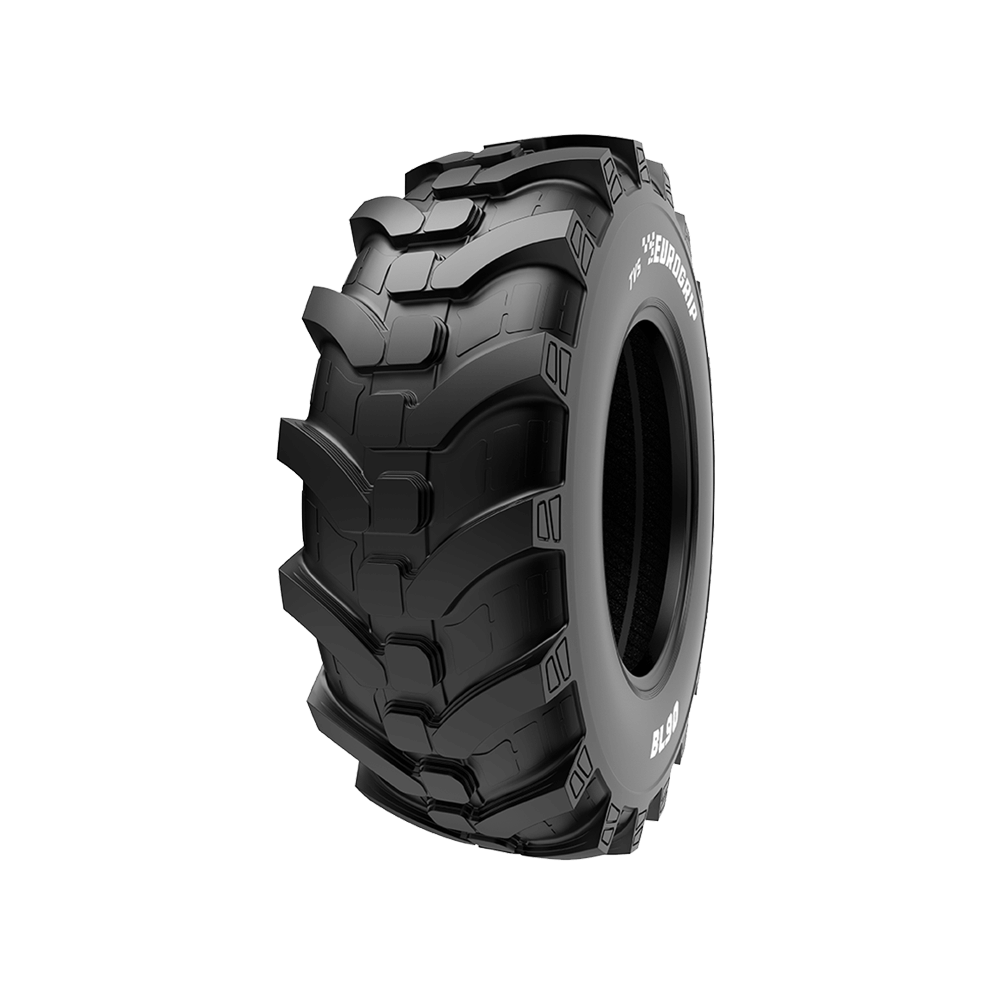

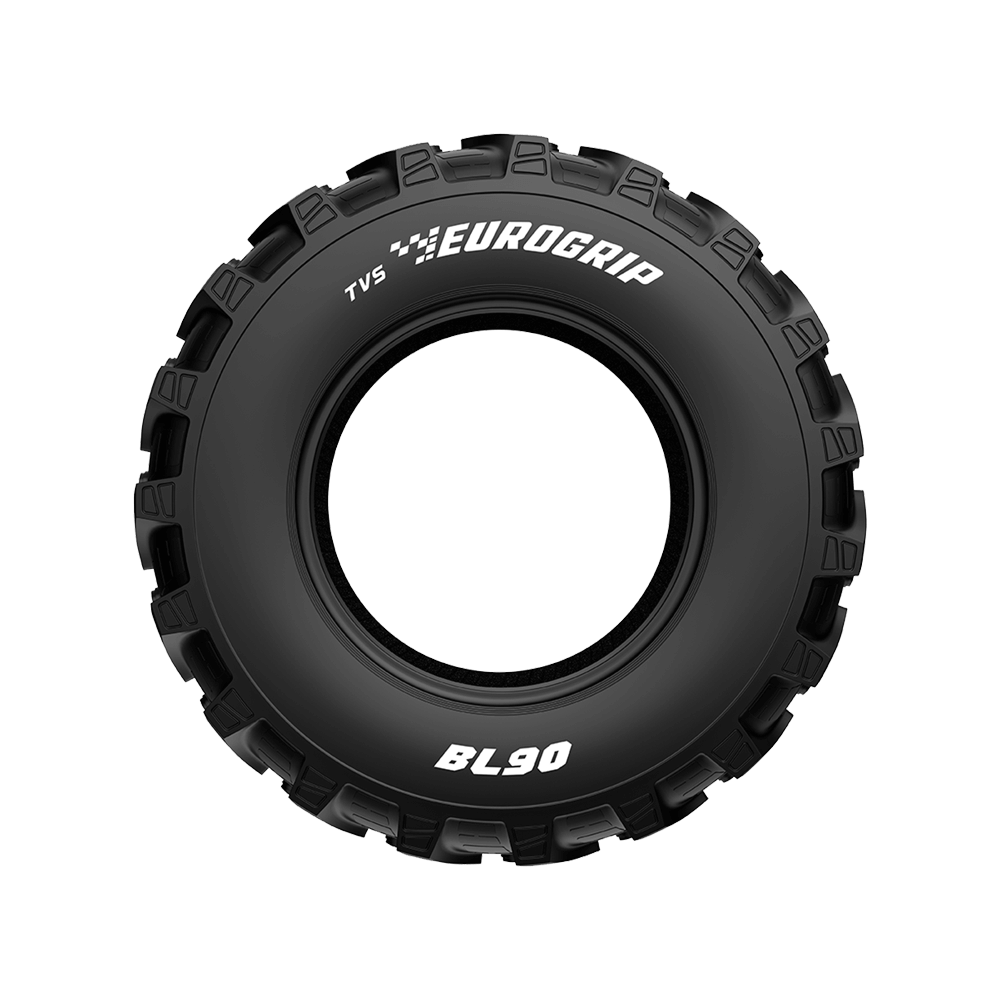

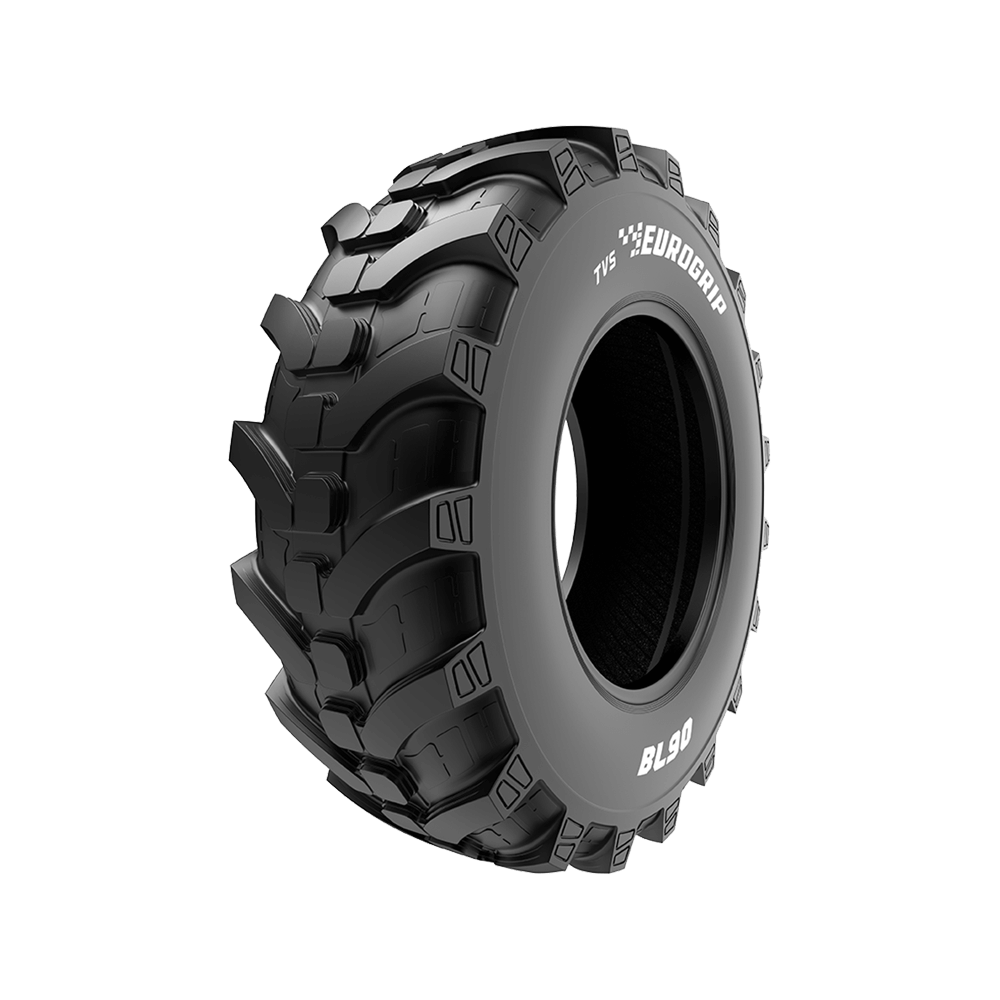

The TVS Eurogrip BL 90 R-4 is a construction and industrial application tyre made for use in machines such as Backhoe Loaders, Industrial Tractors, Compact Loaders etc engaged in a variety of lifting and loading operations.

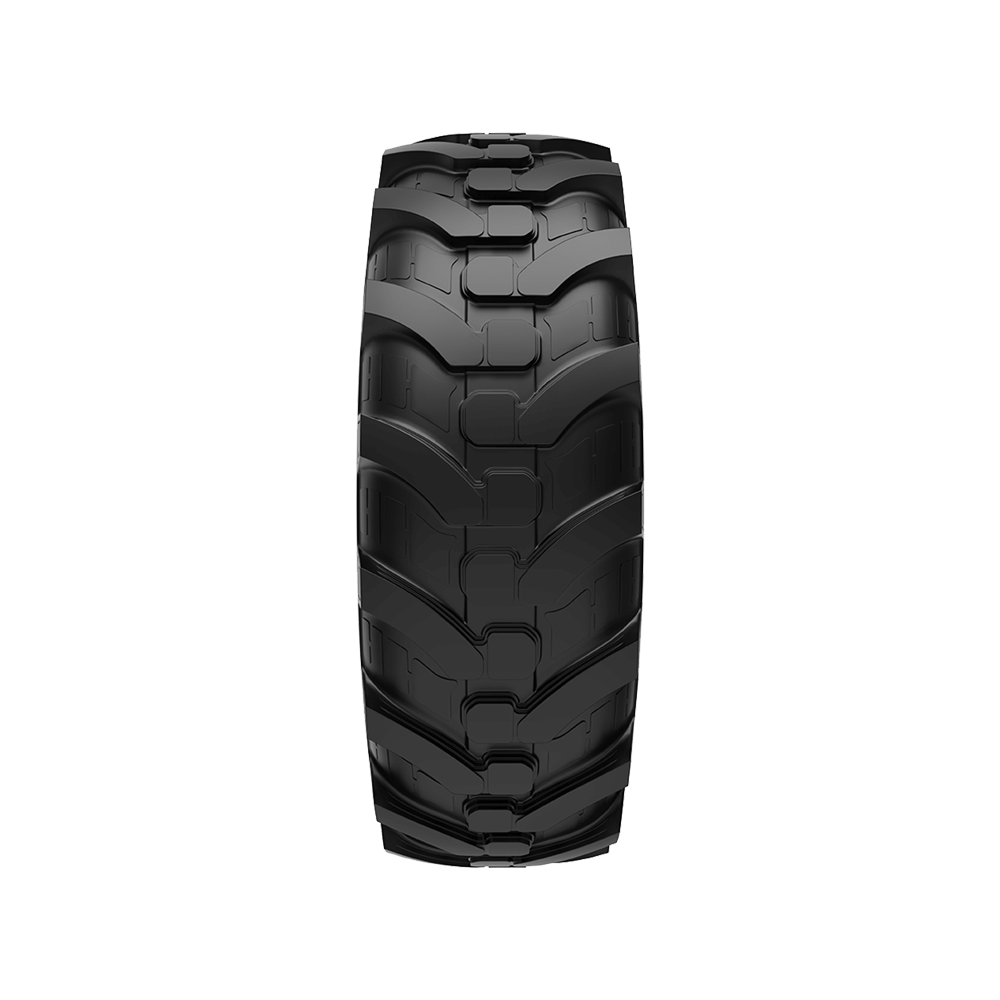

The strong carcass and under-tread maximizes tread impact protection to reduce risk of punctures. The wide, flat lugs with wide central blocks provide stability, good traction and longer life.
The tread ideally spaced and angled lugs promote superior self-cleaning providing best off-road traction. The sturdy construction also provides maximum sidewall and rim flange protection, reducing impact damages.
R-4
A8
Bias
Suitable for
Backhoe Loader
Industrial Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 480/80-26 | W16L | - | 495 | 1420 | 640 | 4215 | TL | 14 | 160A8 | |
| 480/80-26 | W16L | - | 495 | 1420 | 640 | 4215 | TL | 16 | 162A8 | |
| 480/80-26 | W16L | - | 495 | 1420 | 640 | 4215 | TL | 20 | 167A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
