Tractor Front – Rib

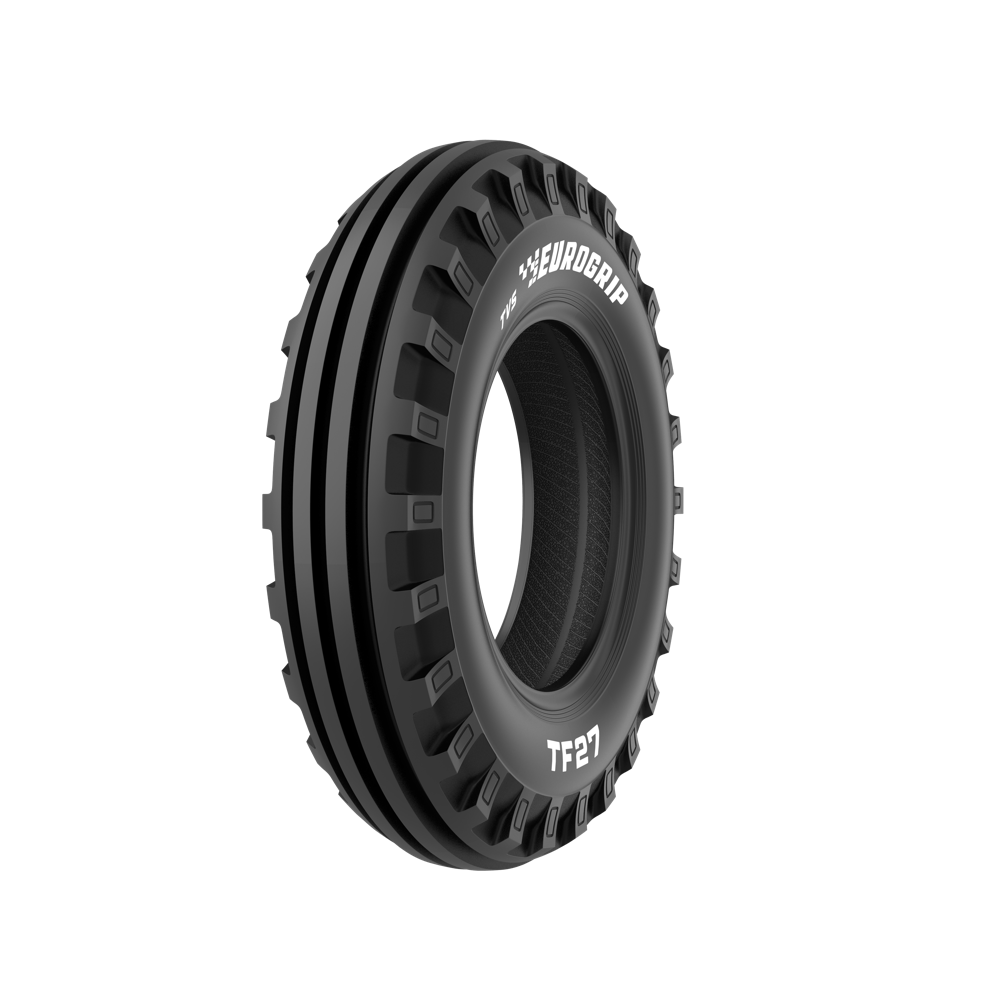

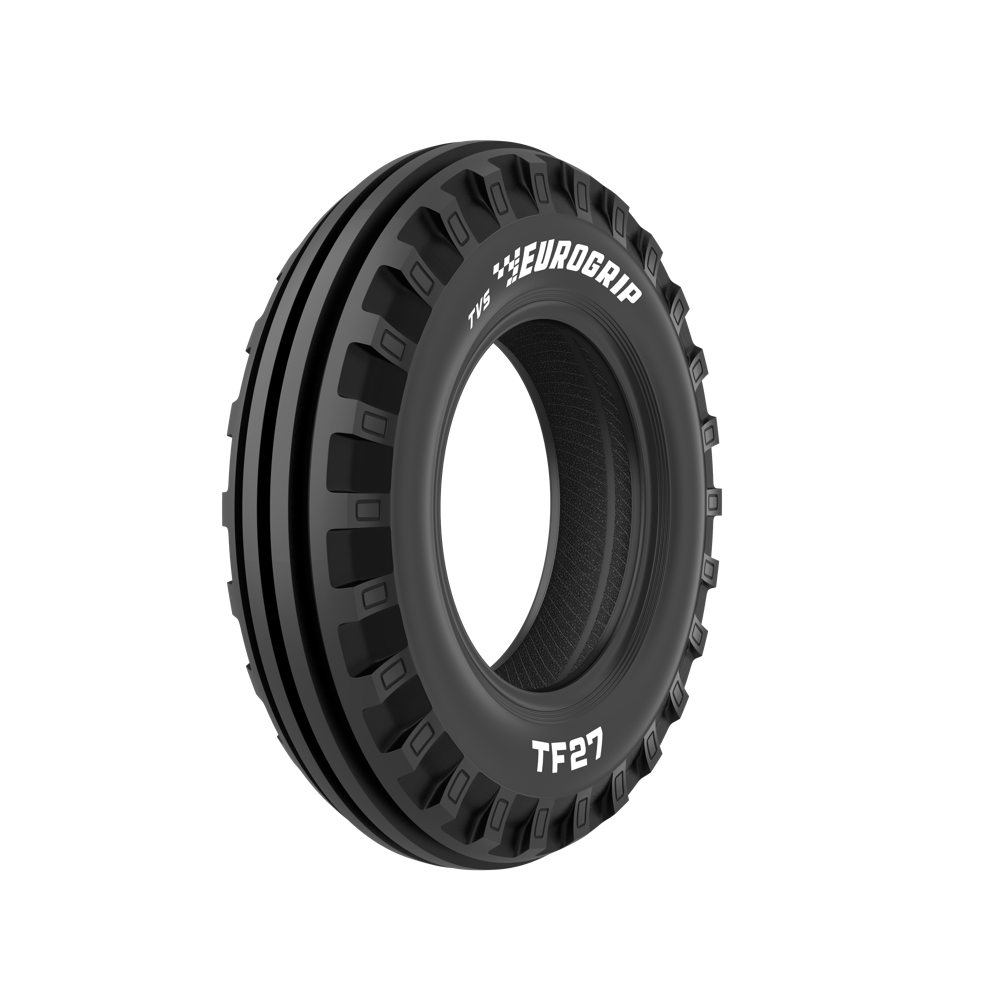

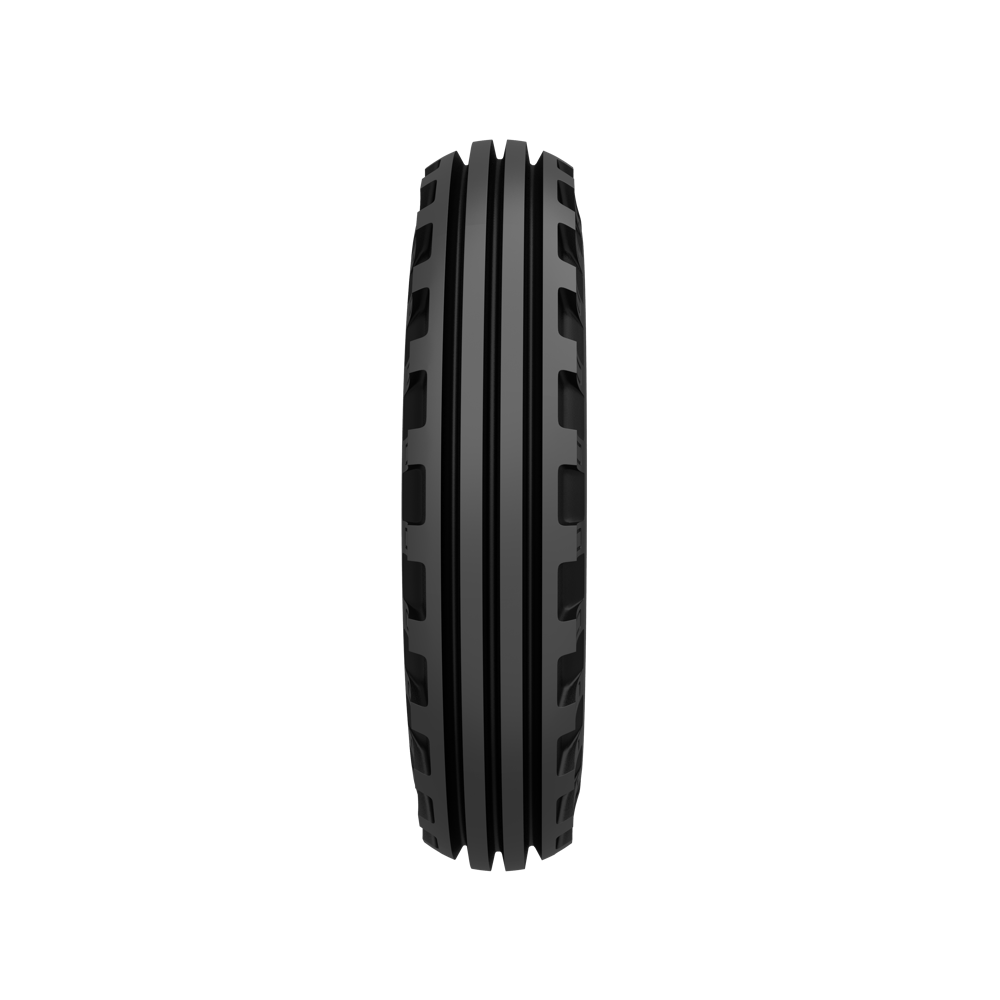

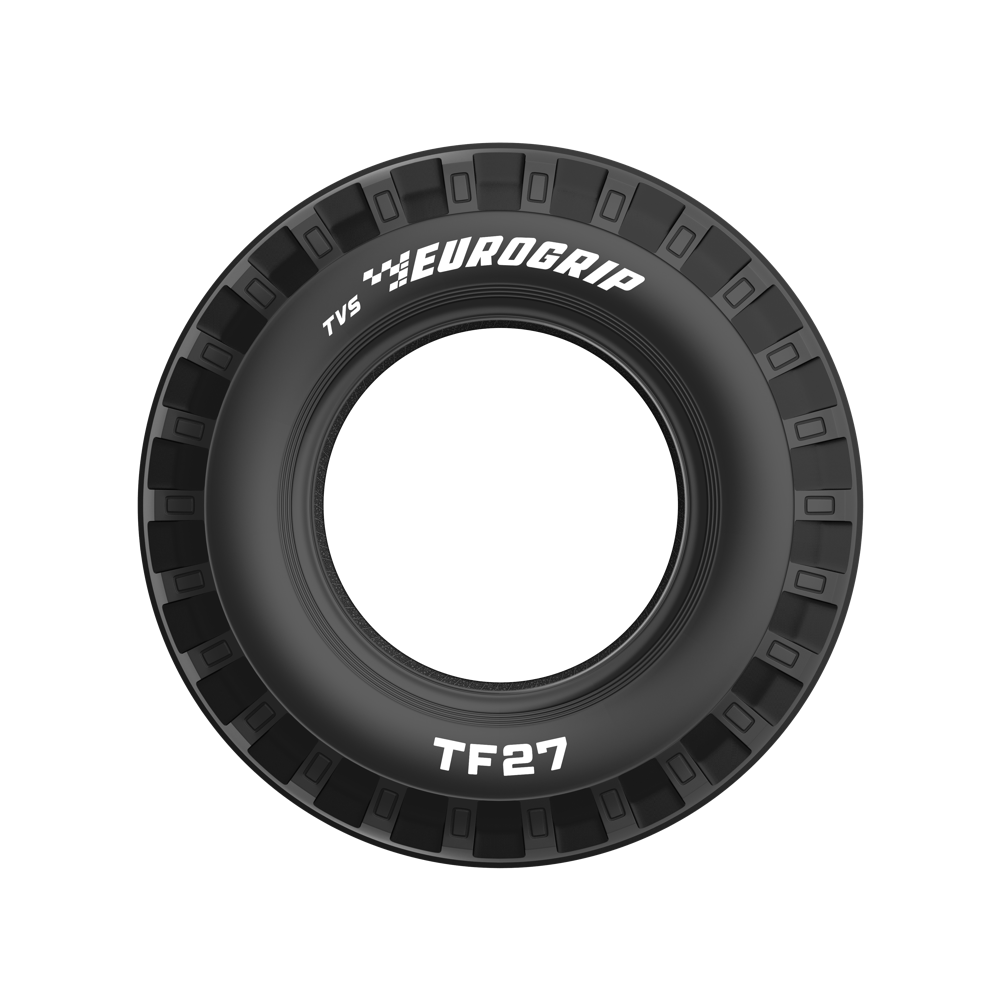

TF 27
The TF 27 range of F-2 rib tyres are designed to be used in two-wheel drive tractors as steer wheel and as load carrying free rolling tyres in trailers and towed agricultural implements.These are 4 ribbed tyres with notched shoulder ribs. Apart from providing good lateral / directional stability, they also provide ideal performance over a wide range of surfaces from wet to dry soil. The low wear compound extend life in haulage applications.
F-2
A6/A8
Bias
Suitable for
Tractor 2WD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 6.00-16 | 4.50E | - | 170 | 740 | 340 | 2195 | TT | 6 | 88A6 | 80A8 | |
| 6.00-16 | 4.50E | - | 170 | 740 | 340 | 2195 | TT | 8 | 94A6 | 86A8 | |
| 6.50-16 | 4.50E | - | 180 | 765 | 350 | 2260 | TT | 6 | 91A6 | 83A8 | |
| 6.50-16 | 4.50E | - | 180 | 765 | 350 | 2260 | TT | 8 | 98A6 | 90A8 | |
| 7.50-16 | 5.50F | - | 205 | 810 | 370 | 2315 | TT | 6 | 98A6 | 90A8 | |
| 7.50-16 | 5.50F | - | 205 | 810 | 370 | 2315 | TT | 8 | 103A6 | 95A8 | |
| 7.50-20 | 5.50F | - | 205 | 915 | 420 | 2695 | TT | 6 | 103A6 | 95A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
